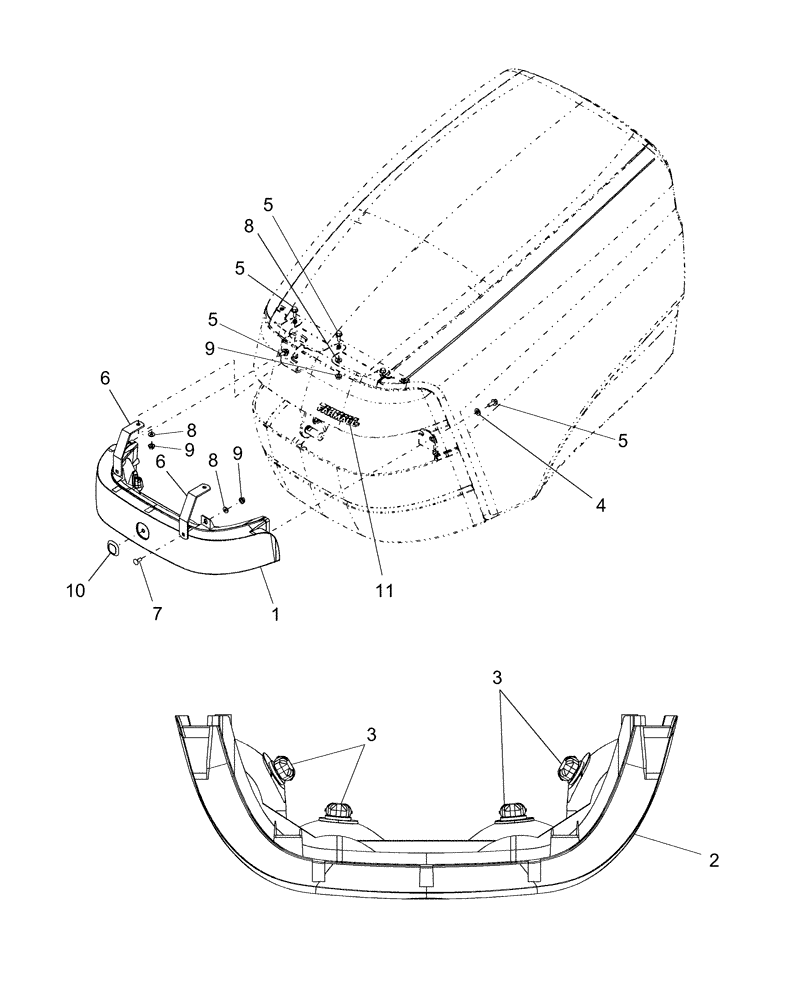

Запчасти Case IH DX33 (06.09) - HOOD HEADLAMP & HARDWARE (06) - ELECTRICAL SYSTEMS

1

86400128

HEADLAMP

Deluxe Incl 2, 3

1шт.

2

86558052

HEADLAMP LENS

1шт.

3

9847313

BULB,#894, 12V, 37.5W

12v 5w

4шт.

4

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

2шт.

5

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

6шт.

6

86404645

BRACKET

Front Light

2шт.

7

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

9

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

5шт.

10

86401812

DECAL

Chrome

1шт.

11

86405242

EMBLEM CASE/IH

FARMALL

1шт.
