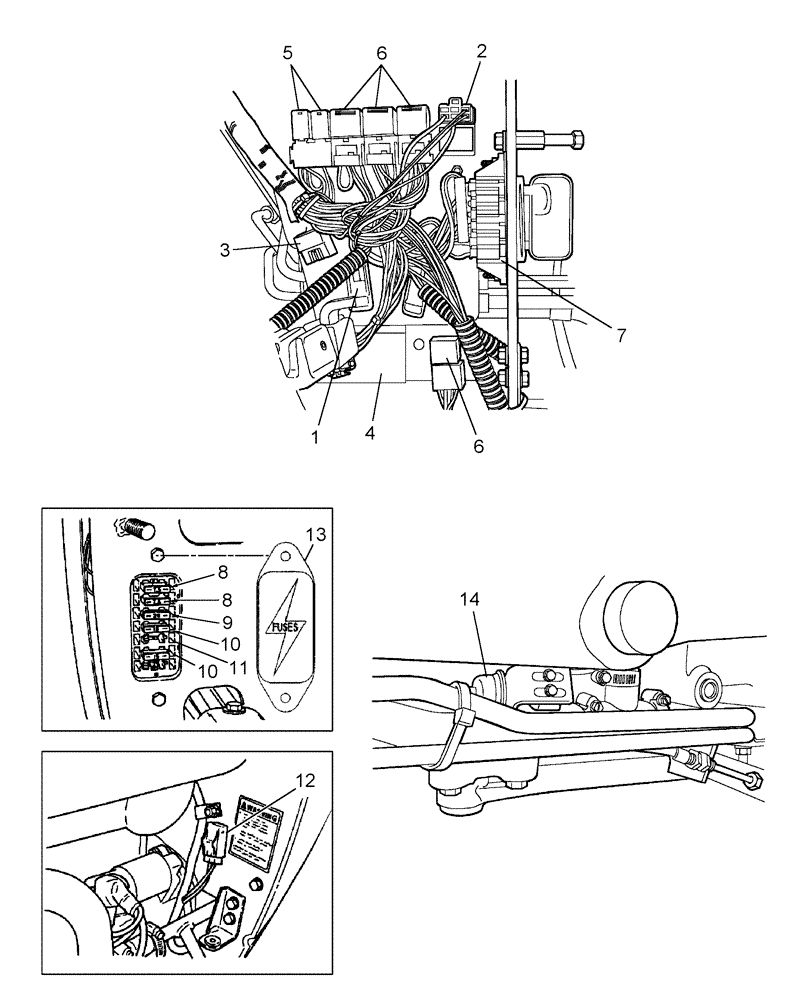

Запчасти Case IH DX33 (06.03) - RELAY, DIODE & FUSE LOCATIONS, RIGHT HAND SIDE (06) - ELECTRICAL SYSTEMS

1

774735

DIODE,6A

HST

2шт.

2

SBA385870301

TIMER,12V

Glow Plug

1шт.

3

86400241

CONTROL UNIT

Fuel Control Module

1шт.

4

86403092

FLASHER UNIT

Module

1шт.

5

86509590

RELAY

20 AMP

6шт.

Used for Fuel Shutoff Relay, Glow Plug Light Relay, Auxilary Work Lights, worklamp, PTO Interlock, Flasher Cutoff

1шт.

6

86537972

RELAY

12 Volt, Gear

3шт.

Used for Start Relay, PTO Safety Relay & Glow Plug Power Relay

1шт.

6

86537972

RELAY

12 Volt, HST

4шт.

Used for Cruise Control Relay (HST)

1шт.

7

NSS

NOT SOLD SEPARAT

Fuse Block, Part of Main Harness

1шт.

8

9623776

FUSE,7.5A, Micro, Brown

1шт.

9

9804895

FUSE,20A, Micro, Yellow

1шт.

10

9623774

FUSE,15 Amp

3шт.

11

9811773

FUSE,10A, Micro, Red

2шт.

12

PL

PROCURE LOCALLY

40 AMP

1шт.

13

86540976

BASE

Fuse

1шт.

14

86530877

SWITCH

Cruise Control

1шт.

15

87300238

PLUG

Plug, Cruise Plug

1шт.

Not Illustrated

1шт.
