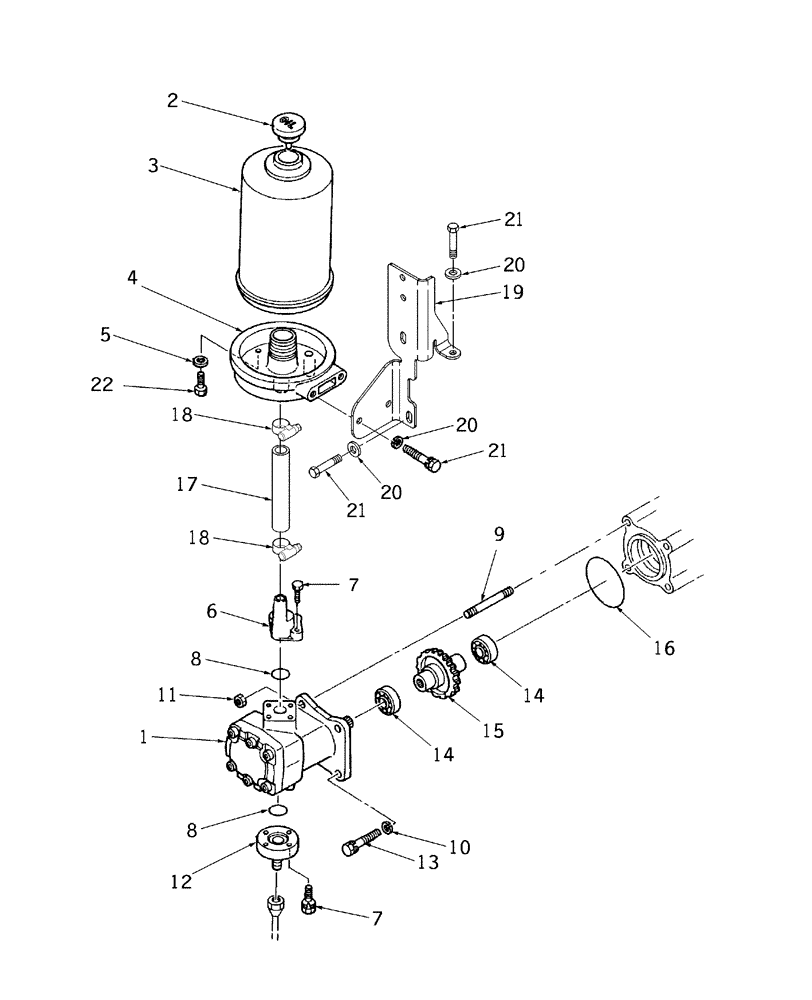

Запчасти Case IH DX33 (04.07) - POWER STEERING PUMP (04) - FRONT AXLE & STEERING

1

SBA340450490

PUMP

Power Steering (KP0588ARS)

1шт.

2

SBA398430520

DIPSTICK

1шт.

3

SBA360101470

FILTER ASSY

(Black) Includes: Ref. 3A

1шт.

3a

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Not Illustrated

1шт.

4

SBA340621060

PLATE

1шт.

5

SBA025100008

SEALING WASHER,7.3mm ID x 14mm OD x 1.8mm Thk

Seal

1шт.

6

SBA340621610

FLANGE

1шт.

7

SBA011310625

CAPTIVE WASHER SCREW,Hex, M6 x 25, Cl 8.8

5шт.

8

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

2шт.

9

SBA012110865

STUD

2шт.

10

E630153S71

LOCK WASHER,M8

Spring

2шт.

11

SBA021500008

NUT,M8

2шт.

12

SBA340621090

FLANGE

1шт.

13

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

2шт.

14

SBA040106004

BALL BEARING

6004

2шт.

15

SBA340460180

GEAR

Drive

1шт.

16

SBA052300600

O-RING,G60

1шт.

17

86530979

HOSE

Steering, DX29

1шт.

17

86535840

HOSE,15.90 mm ID x 218.30 mm, SAE 30R2 Type 1

Steering, DX33

1шт.

18

82012717

HOSE CLAMP,11 x 17mm

2шт.

19

86402015

BRACKET

Power Steering

1шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

21

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

22

SBA010800812

BOLT

M8 x 12

1шт.
