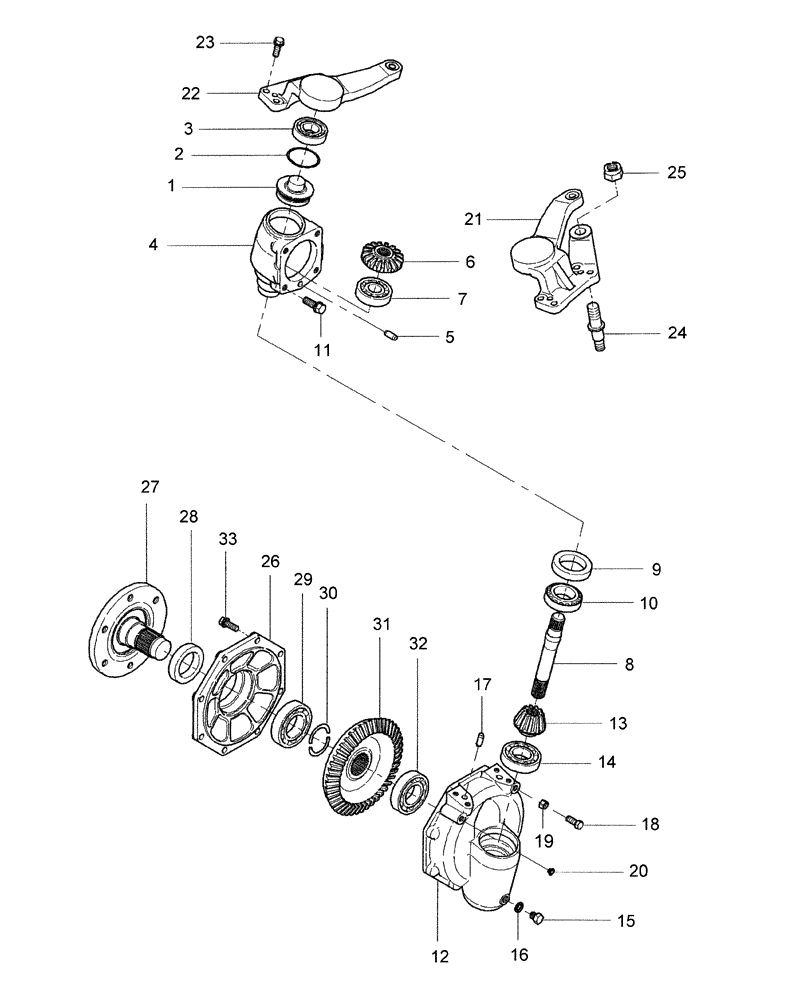

Запчасти Case IH DX33 (04.06) - FINAL REDUCTION GEARS, W/FWD (04) - FRONT AXLE & STEERING

1

SBA330311750

PIN

King

2шт.

2

SBA052300550

O-RING

2шт.

3

SBA040116206

BEARING ASSY,30mm ID x 62mm OD x 16mm W

Ball

2шт.

4

SBA322118560

HOUSING

2шт.

5

SBA030501025

BALL STUD,M10 x 25 L

BALL PIN

2шт.

6

SBA326240760

PINION

Final

2шт.

7

20996680

BALL BEARING,25mm ID x 62mm OD x 17mm W

2шт.

8

SBA322514330

SHAFT

Drive

2шт.

9

SBA050609048

SEAL PROTECTION

2шт.

10

SBA042532008

TAPERED BEARING

Includes Race

2шт.

11

SBA011511235

BOLT,M12 x 35

8шт.

12

SBA322118540

CASING

2шт.

13

SBA326240670

PINION

Final

2шт.

14

37203

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

2шт.

15

SBA010411212

DRAIN PLUG,M12 x 1.25

2шт.

16

SBA025100012

WASHER,12.4mm ID x 19mm OD x 2mm Thk

2шт.

17

SBA030501025

BALL STUD,M10 x 25 L

BALL PIN

4шт.

18

SBA010331025

BOLT

M10 x 25

2шт.

19

SBA020910010

NUT

M10

2шт.

20

SBA064600040

PLUG

2шт.

21

SBA334525320

ARM

LH, FWD

1шт.

22

SBA334525340

ARM

RH, FWD

1шт.

23

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

8шт.

24

SBA399612071

PIN

1шт.

25

SBA022509001

NUT,U, M20 x 1.5. Cl 8

1шт.

26

SBA322213920

COVER

2шт.

27

SBA326312550

SHAFT

Wheel

2шт.

28

SBA399030070

SEAL

Oil

2шт.

29

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

2шт.

30

SBA398340300

CIRCLIP

4шт.

31

SBA326370820

GEAR

Final

2шт.

32

114085

BALL BEARING,39.9999 mm ID x 79.9998 mm OD x 18.001 mm

2шт.

33

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

16шт.
