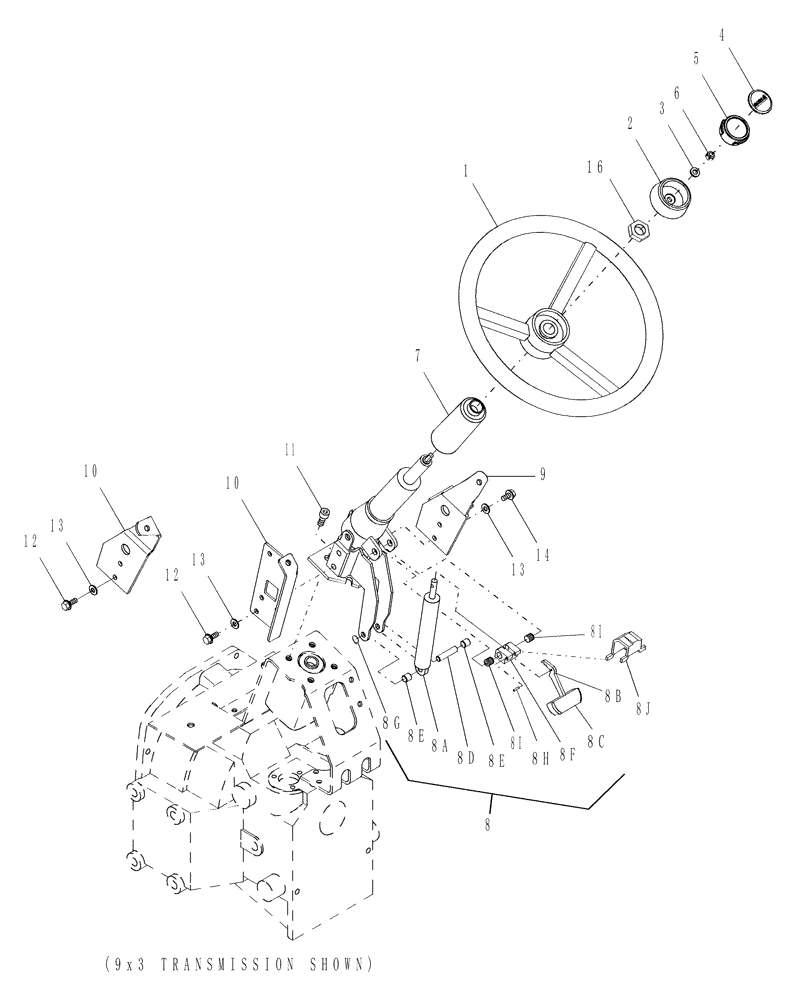

Запчасти Case IH DX33 (04.03) - STEERING COLUMN, TILT (04) - FRONT AXLE & STEERING

1

9821708

STEERING WHEEL

1шт.

2

9821709

KNOB

1шт.

2

87302160

KNOB

1шт.

Used With Steering Column, 87329101

1шт.

3

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

1шт.

4

86401696

EMBLEM CASE/IH

Case/IH Emblem

1шт.

4

86401707

EMBLEM

Case/IH Emblem

1шт.

Used With Steering Column, 87329101

1шт.

5

86504533

COVER

Cap, Steering Wheel

1шт.

5

87302798

CAP,54mm OD, Black

Cap, Steering Wheel

1шт.

Used With Steering Column, 87329101

1шт.

6

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

7

86522881

COVER

Telescope

1шт.

8

86403100

STEERING COLUMN

Includes Ref. 8A-8I

1шт.

8

87329101

STEERING COLUMN

Includes Ref. 8A-8I

1шт.

Components Still Available. When Stock is Exhausted Order: (1) 87329101 Column, (1) 87302160 Knob, (1) 87302798 Hub Cap (1) 86401707 Emblem

1шт.

8a

86522914

SHOCK ABSORBER

Gas

1шт.

8b

87333647

HANDLE

Handle

1шт.

8c

87333649

HANDLE

Knob

1шт.

8d

87333650

PIN,M10 x 45 L

1шт.

8e

87333651

SPACER

2шт.

8f

87335459

BLOCK

1шт.

8g

800-4310

CIRCLIP,M10

1шт.

8h

NS

NOT SERVICED

3x24mm Coiled Spring Pin

1шт.

8i

84582797

HEX SOC SCREW

Hex Soc Hd, M8 x 12, 8.8

2шт.

8j

86401203

COVER

Gas Strut

1шт.

9

86540910

SUPPORT

Rear Hood Assy., 9x3

1шт.

9

86543892

SUPPORT

Rear Hood Assy., HST

1шт.

10

86522948

SUPPORT

Rear Hood, L.H., HST

1шт.

10

87300220

BRACKET

Support, Rear Hood, L.H., 9x3

1шт.

11

86544072

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

11

120052

HEX SOC SCREW,M10 x 25mm, Cl 8.8

4шт.

12

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

13

80681

LOCK WASHER,5/16"

8шт.

14

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

16

86530985

JAM NUT,13/16"-20

1шт.
