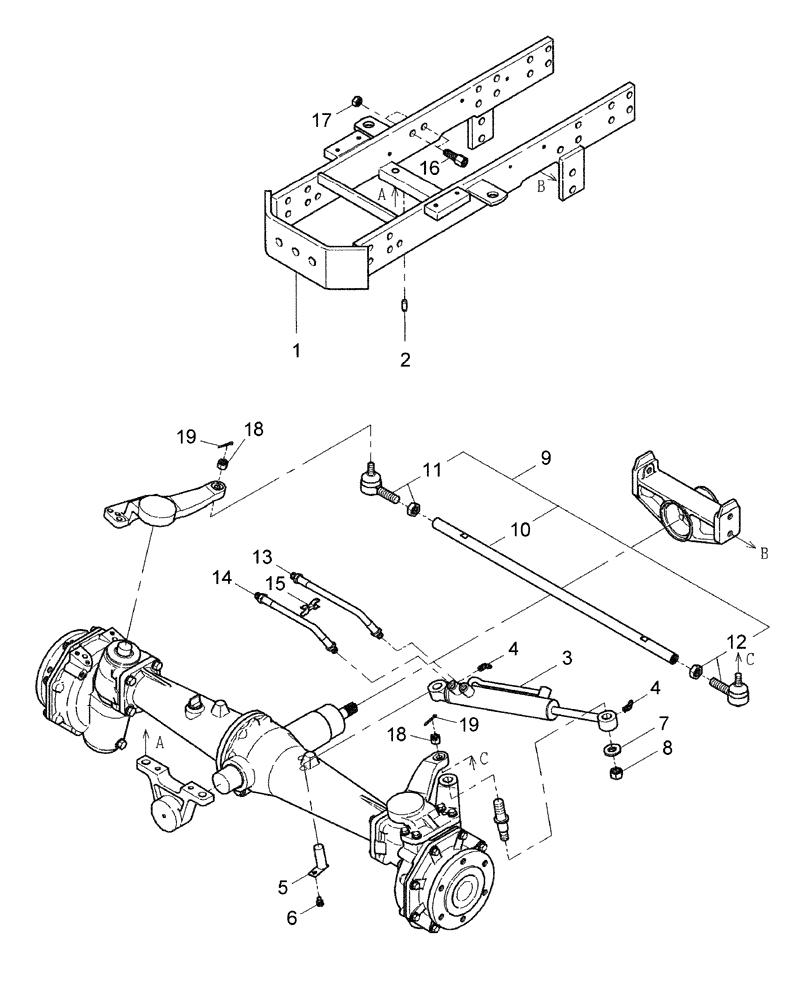

Запчасти Case IH DX33 (04.01) - FRONT AXLE W/FWD (04) - FRONT AXLE & STEERING

1

SBA330105682

FRAME

Front Axle Support

1шт.

2

SBA030501025

BALL STUD,M10 x 25 L

BALL PIN

2шт.

3

SBA344953380

HYDRAULIC CYLINDER

1шт.

4

SBA060630000

LUBE NIPPLE

2шт.

5

SBA399600110

PIN

1шт.

6

SBA011510812

CAPTIVE WASHER SCREW,Hex, M8 x 12, G5

1шт.

7

SBA399211540

WASHER

1шт.

8

SBA022409003

NUT,U, M16 x 1.5, Cl 8

1шт.

9

SBA334074030

TRACK ROD ASSY

Includes: Ref. 10 - 12

1шт.

10

SBA334704320

CONNECTING LINK

Tie Rod

1шт.

11

SBA334800770

TRACK ROD END

Tie Rod, RH

1шт.

12

SBA334800780

TRACK ROD END

Tie Rod, LH

1шт.

13

87300466

HOSE

RH

1шт.

14

87300462

HOSE,6.35 mm ID x 350 mm

LH

1шт.

15

SBA399112190

CLAMP

1шт.

16

86400264

FITTING,9/16"-18 x M66.4 L

2шт.

17

SBA020800014

NUT,M14 x 1.5

2шт.

18

SBA022509001

NUT,U, M20 x 1.5. Cl 8

2шт.

19

SBA399612071

PIN

2шт.
