Запчасти Case IH DX33 (03.12) - REAR TRANSMISSION GEARS, W/HST (03) - TRANSMISSION

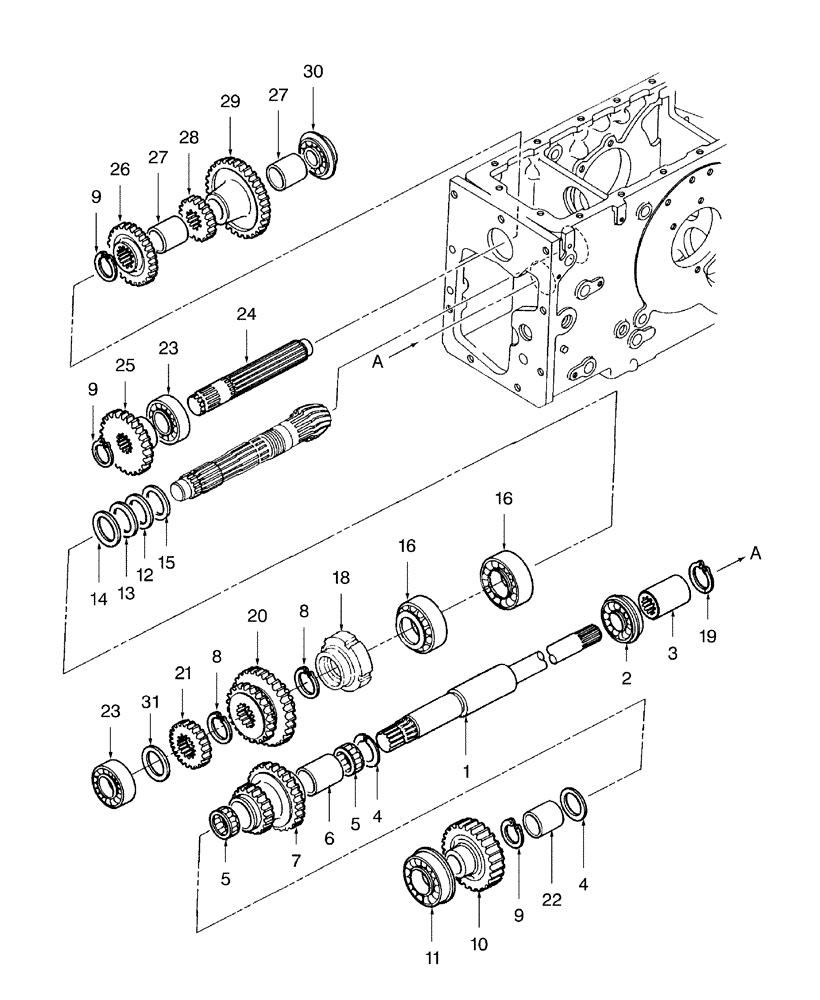

Схема запчастей Case IH DX33 - (03.12) - REAR TRANSMISSION GEARS, W/HST (03) - TRANSMISSION
9
12
16
20
30
27
16
23
1
14
15
21
23
9
28
24
18
19
7
29
5
4
13
6
25
26
8
3
5
10
8
4
11
22
27
9
2
31

Артикул

Название

Примечание

Количество

1

SBA322571460

COUNTERSHAFT

PTO

1шт.

2

SBA040156205

BALL BEARING

1шт.

3

SBA322610070

COUPLING

1шт.

4

SBA399260861

THRUST WASHER

w/FWD

2шт.

5

SBA042209028

NEEDLE BEARING

W/FWD

2шт.

6

SBA399233711

COLLAR

w/FWD

1шт.

7

SBA322381361

GEAR

Counter B, FWD w/9x3 w/HST

1шт.

8

SBA036100028

SNAP RING

2шт.

9

370002

CIRCLIP,M25, External

CS025

3шт.

10

SBA322323731

GEAR

Fixing A

1шт.

11

SBA040156007

BALL BEARING,35mm ID x 62mm OD x 14mm W

1шт.

12

SBA199280490

SHIM,0.5mm Thk

(.020")

1шт.

13

SBA199281220

SHIM,0.2mm Thk

1шт.

14

SBA199281210

SHIM,0.1mm Thk

1шт.

15

SBA199260040

THRUST WASHER

1шт.

16

309085

BEARING ASSY,30mm ID x 62mm OD x 17.25mm W

2шт.

18

SBA399370760

NUT

1шт.

19

SBA036500022

SNAP RING

M20 D

1шт.

20

SBA322361350

GEAR

Slide B

1шт.

21

SBA322323550

GEAR

Fixing A, w/FWD w/9x3 w/HST

1шт.

22

SBA399235050

COLLAR

1шт.

23

210041

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

24

SBA322520570

MAIN SHAFT

Main

1шт.

25

SBA322323720

GEAR

Fixing A

1шт.

26

SBA322323690

GEAR

Fixing A

1шт.

27

SBA399235000

COLLAR

2шт.

28

SBA322323670

GEAR

Fixing A

1шт.

29

SBA322323680

GEAR

Fixing A

1шт.

30

SBA040156204

BALL BEARING,20mm ID x 47mm OD x 14mm W

#6204NR

1шт.

31

SBA199280430

SHIM,0.5mm Thk

1шт.
