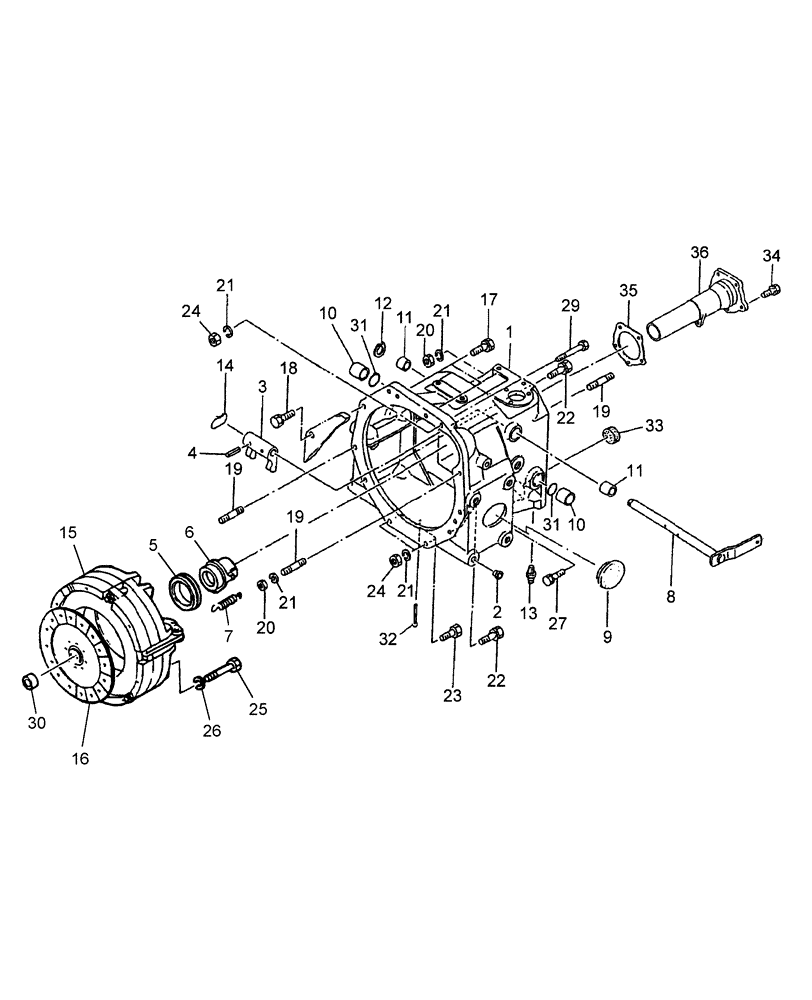

Запчасти Case IH DX33 (03.01) - DOUBLE CLUTCH & CLUTCH CASE, W9 X 3 (03) - TRANSMISSION

1

SBA320111752

CASE

Clutch, Double w/9x3

1шт.

1

SBA320111753

CLUTCH HOUSING

Double w/9x3

1шт.

USED ON & ABOVE DRIVELINE 2M63475

1шт.

2

SBA398460010

PLUG,M19

Blank

8шт.

3

SBA320260150

FORK

Clutch, Double

1шт.

4

SBA030300632

SLOTTED PIN,M6 x 32

2шт.

5

SBA398560340

BEARING ASSY,55mm ID x 87.1mm OD x 55.12mm W

Release, Double

1шт.

6

SBA320310380

HUB

Release, Double

1шт.

7

SBA398210070

SPRING

1шт.

8

SBA320201030

SHAFT

Clutch

1шт.

9

SBA398110010

COVER

Rubber

2шт.

10

SBA398511420

DRIVE BUSHING

2шт.

11

SBA398510010

DRIVE BUSHING

2шт.

12

84021874

SNAP RING,M18, Ext

1шт.

13

SBA060610000

LUBE NIPPLE,M6 x .075

2шт.

14

SBA398230020

RETAINING WIRE

2шт.

15

SBA320040694

CLUTCH

Double, DX29 Refer to Fig. 03.02 for Breakdown

1шт.

15

SBA320040694R

REMAN-CLUTCH PLATE

Double, DX29 Refer to Fig. 03.02 for Breakdown

1шт.

15

SBA320040694C

CORE-CLUTCH PLATE

Return Number

1шт.

15

SBA320040970

CLUTCH & DISC ASSY

Double, DX33 Refer to Fig. 03.02 for Breakdown

1шт.

15

SBA320040970R

REMAN-CLUTCH PLATE

Double, DX33 Refer to Fig. 03.02 for Breakdown

1шт.

15

SBA320040970C

CORE-CLUTCH PLATE

Return Number

1шт.

16

SBA320400620

CLUTCH DISC

Clutch Disk Double

1шт.

16

SBA320400620R

REMAN-CLUTCH PLATE

Clutch Disk Double

1шт.

16

SBA320400620C

CORE-CLUTCH PLATE

Return Number

1шт.

17

SBA010109607

BOLT,Hex, M10 x 1.5 x 35mm

2шт.

18

SBA011511020

BOLT,M10 x 20

1шт.

19

SBA012111030

STUD,M10 x 30

3шт.

20

100016

NUT,M10 x 1.5, Cl 8

3шт.

21

892-11010

LOCK WASHER,M10

6шт.

22

SBA011511035

BOLT,M10 x 35

2шт.

23

SBA010311035

BOLT,M10 x 35

2шт.

24

SBA021010010

NUT,M10 x 1.25

3шт.

25

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

Double Clutch

6шт.

26

E630153S71

LOCK WASHER,M8

Spring

3шт.

26

E630153S71

LOCK WASHER,M8

Spring

6шт.

27

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

1шт.

29

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

30

SBA040116001

BALL BEARING

1шт.

31

SBA052400280

O-RING

2шт.

32

SBA030104020

PIN

Split

1шт.

USED BEFORE DRIVELINE 2M63475

1шт.

33

SBA322140670

COVER

Seal

1шт.

34

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

5шт.

35

SBA320990140

GASKET

1шт.

36

SBA320180460

RETAINER

1шт.
