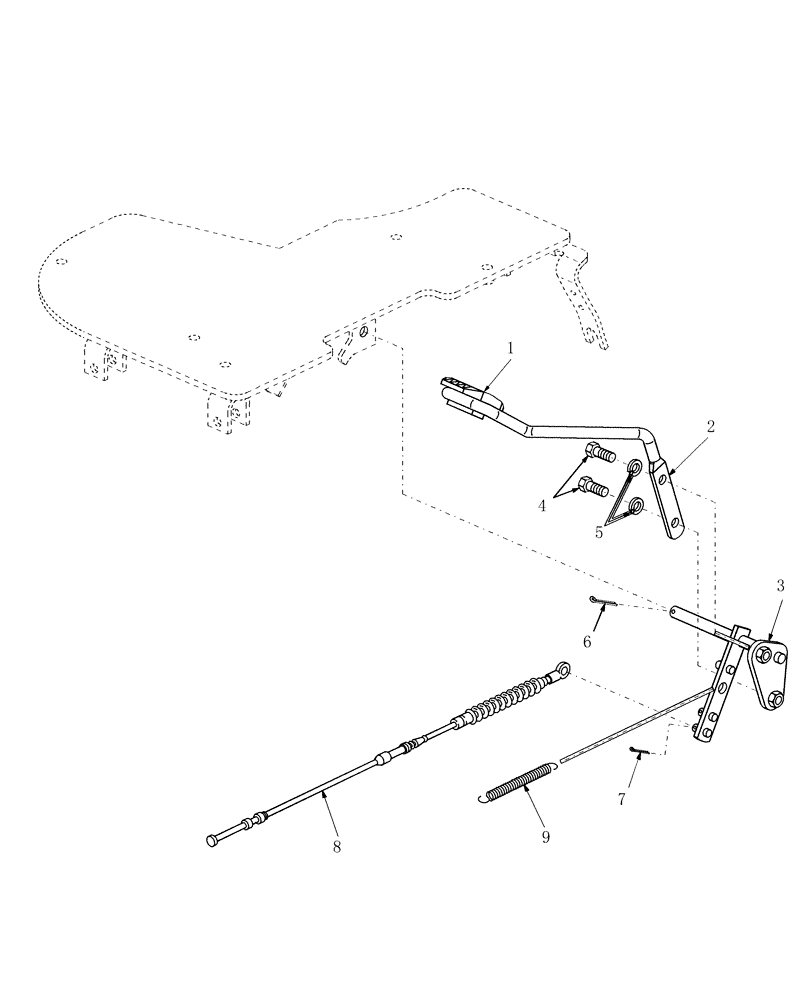

Запчасти Case IH DX33 (02.07) - THROTTLE CONTROLS - FOOT 9 X 3 (02) - ENGINE EQUIPMENT

1

9821941

RUBBER PEDAL PAD

Pad, Pedal

1шт.

2

86530717

ROD

Foot Accelerator

1шт.

3

86530820

PIVOTING ARM

Assy

1шт.

4

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

2шт.

5

492-11031

LOCK WASHER,5/16"

2шт.

6

80756

COTTER PIN,1/8" x 3/4"

1шт.

7

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

8

SBA312070230

CABLE

Foot Throttle

1шт.

9

18

SPRING

Safety Hook

1шт.
