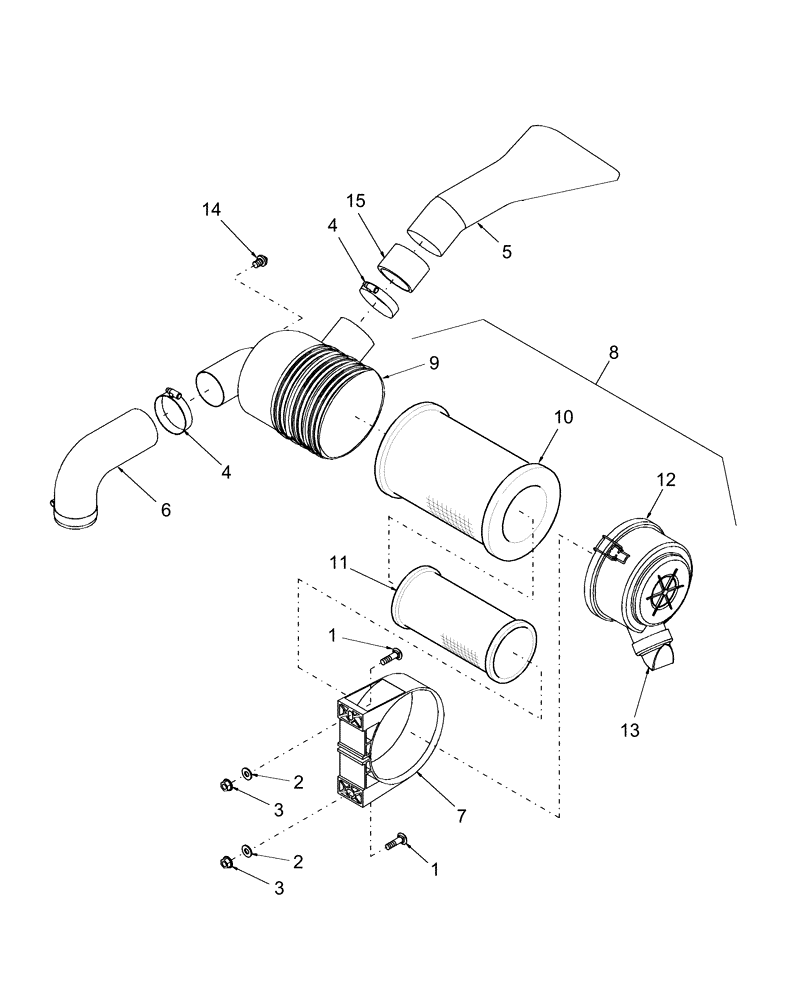

Запчасти Case IH DX33 (02.04) - AIR CLEANER (02) - ENGINE EQUIPMENT

1

43465

CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd

2шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

4

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

1-9/16" ID

3шт.

5

86519859

HOSE

Air Intake Duct

1шт.

6

87300214

INTAKE AIR HOSE,50.80 mm ID x 110.00

Air Filter

1шт.

7

86549702

BRACKET

1шт.

8

86549691

AIR CLEANER

Includes: Ref. 9 thru 14

1шт.

9

86549692

BODY

Air Cleaner

1шт.

10

87300179

AIR FILTER

Primary

1шт.

11

87300181

AIR FILTER

Safety

1шт.

12

86549696

COVER

1шт.

13

82981184

DUST VALVE

Unloader

1шт.

14

86549695

PIPE PLUG,1/8"-27 NPT

1шт.

15

86401516

SLEEVE

Adapter

1шт.
