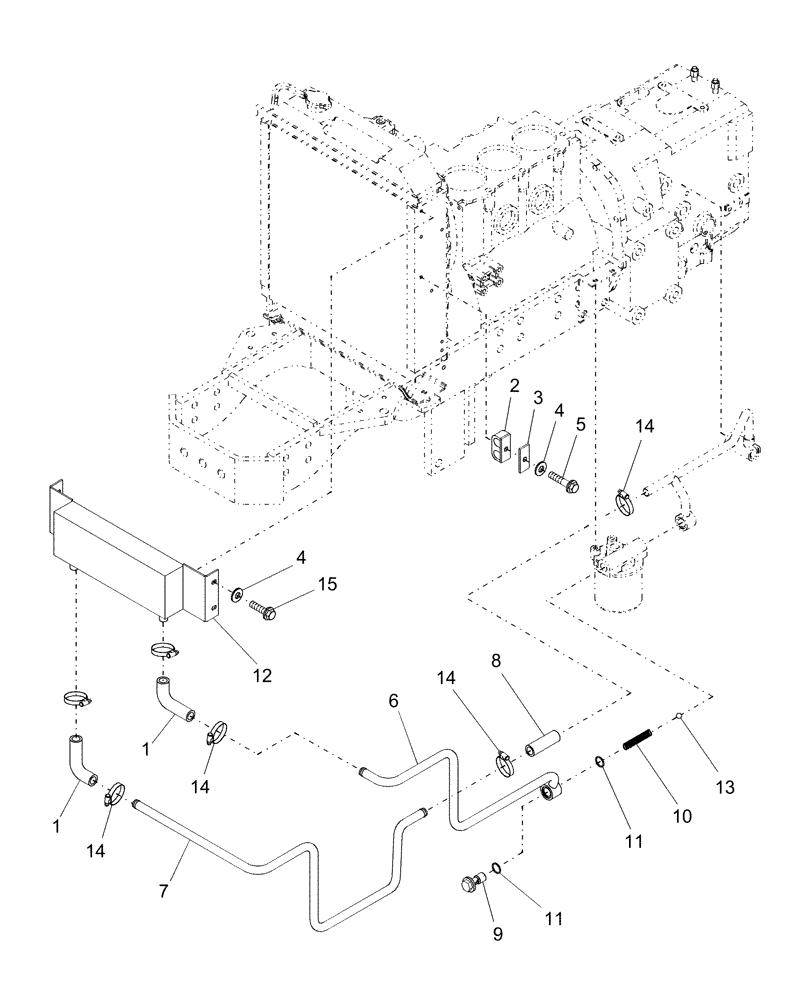

Запчасти Case IH DX33 (02.03) - OIL COOLER, HST (02) - ENGINE EQUIPMENT

1

86540861

HOSE

HST Elbow

2шт.

2

781221

CLAMP

Used for Cooling Lines to HST Filter

1шт.

3

86509354

PLATE,9/32" ID x 3/4" W x 2" L

1шт.

4

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

5шт.

5

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

1шт.

6

86524957

TUBE,469, 245.8 mm L

HST Cooler

1шт.

7

86522970

TUBE,15.90 mm ID x 17.00 mm OD

HST Cooler

1шт.

8

86530711

HYDRAULIC HOSE,15.88 mm ID x 70.00 mm, SAE 30R2 Type 1

1шт.

9

SBA398480240

BANJO BOLT,3/8"

1шт.

10

86532703

SPRING

1шт.

11

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

2шт.

12

86522859

OIL COOLER

HST

1шт.

13

210006

BALL

1шт.

14

86505159

HOSE CLAMP

6шт.

15

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

4шт.
