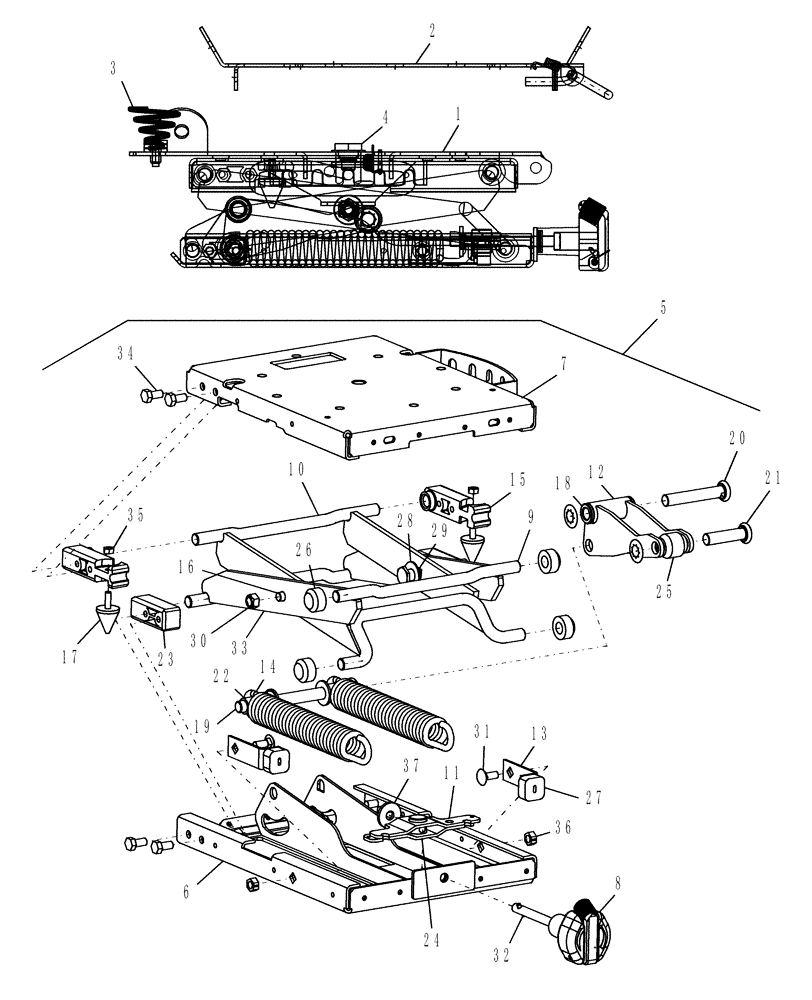

Запчасти Case IH DX33 (10.03.01) - DELUXE SEAT - 86403798 (10) - OPERATORS PLATFORM/CAB

1

87300446

SEAT ACCESSORY

Suspension & Swivel Assembly Includes: Ref. 2,3,4,5

1шт.

2

86530934

SWIVEL CONNECTION

Latch

1шт.

3

86401230

SPRING

Conical

2шт.

4

86560560

BOLT

Swivel

1шт.

5

87300396

SEAT ACCESSORY

Suspension Assembly Includes: Ref. 6-37

1шт.

6

NSS

NOT SOLD SEPARAT

Lower Housing

1шт.

7

NSS

NOT SOLD SEPARAT

Upper Housing

1шт.

8

NSS

NOT SOLD SEPARAT

Weight Adjustment Knob

1шт.

9

NSS

NOT SOLD SEPARAT

Outer Scissors

1шт.

10

NSS

NOT SOLD SEPARAT

Arm, Scissors, Inner

1шт.

11

NSS

NOT SOLD SEPARAT

Weight Adjust

1шт.

12

NSS

NOT SOLD SEPARAT

Drive Arm

1шт.

13

NSS

NOT SOLD SEPARAT

Bracket, Upstart

2шт.

14

NSS

NOT SOLD SEPARAT

Spring, Extension

2шт.

15

NSS

NOT SOLD SEPARAT

Block, Scissors Pivot, Side Mount

2шт.

16

NSS

NOT SOLD SEPARAT

Bolt, Cross Pivot

2шт.

17

NSS

NOT SOLD SEPARAT

Bumper, Downstop

2шт.

18

NSS

NOT SOLD SEPARAT

Tube, Bearing

2шт.

19

NSS

NOT SOLD SEPARAT

Shaft, Spring

1шт.

20

NSS

NOT SOLD SEPARAT

Pin, Pivot

1шт.

21

NSS

NOT SOLD SEPARAT

Pin, Roller

1шт.

22

NSS

NOT SOLD SEPARAT

Bushing, Spring

2шт.

23

NSS

NOT SOLD SEPARAT

Block, Shaft

2шт.

24

NSS

NOT SOLD SEPARAT

Nut, Weight Adjust

1шт.

25

NSS

NOT SOLD SEPARAT

Guide, Roller

1шт.

26

NSS

NOT SOLD SEPARAT

Roller

4шт.

27

NSS

NOT SOLD SEPARAT

Bumper

2шт.

28

NSS

NOT SOLD SEPARAT

Washer, Spacer

2шт.

29

NSS

NOT SOLD SEPARAT

Bearing, Cross Pivot

2шт.

30

NSS

NOT SOLD SEPARAT

Locknut, Crown 3/8-16

2шт.

31

NSS

NOT SOLD SEPARAT

Bolt, Carriage 5/16-18

2шт.

32

NSS

NOT SOLD SEPARAT

Pin, Roller 5/32 x 5/8

1шт.

33

NSS

NOT SOLD SEPARAT

Retainer, Internal Tooth 05.00

3шт.

34

NSS

NOT SOLD SEPARAT

5/16-14 x .63 Washer

8шт.

35

NSS

NOT SOLD SEPARAT

Nut, M6 x 0.75

2шт.

36

NSS

NOT SOLD SEPARAT

Nut, Centerlock 5/16-18

2шт.

37

NSS

NOT SOLD SEPARAT

Washer, Flat .390 ID x 1.120 OD

1шт.
