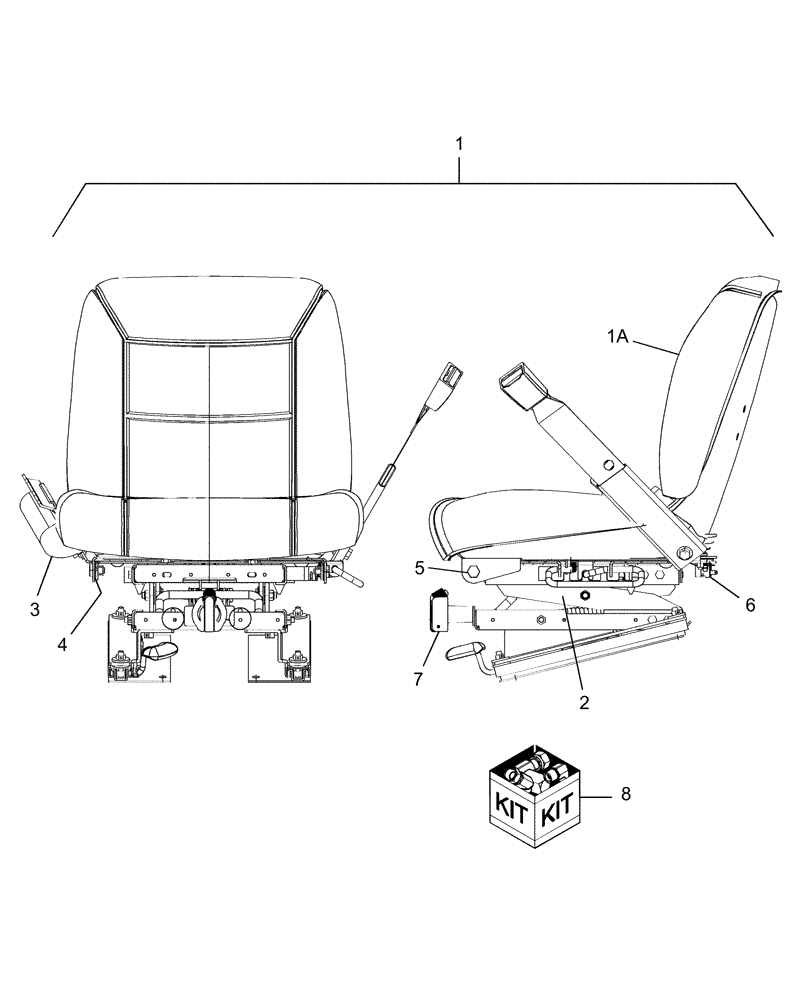

Запчасти Case IH DX33 (10.03) - DELUXE SEAT - 86403798 (10) - OPERATORS PLATFORM/CAB

1

87312893

DRIVER SEAT

Complete Includes: Ref. 1A-7 & Parts shown on Fig. 10.03.01 & 10.03.02

1шт.

1a

87362534

SEAT

One Piece Seat

1шт.

2

87300446

SEAT ACCESSORY

Suspension Assembly Refer to Fig. 10.03.01 for Breakdown

1шт.

3

86403923

SAFETY BELT ,48.00 mm W

1шт.

4

86560539

SPACER

Plastic

2шт.

5

86560540

BOLT

3/8"

2шт.

6

87300397

SWITCH

Operator's Presence

1шт.

7

86403924

SLIDE

Kit, Refer to Fig. 10.03.02 for Breakdown

1шт.

8

718852026

ARMREST

KIT, Includes:

1шт.

Not Included with 86403798 Complete Driver Seat

1шт.

(1) ARMREST ASSY, LH

1шт.

(1) ARMREST ASSY, RH

1шт.

(1) ARMREST BRACKET ASSY

1шт.

(1) PLATE, cover, LH

1шт.

(1) PLATE, cover, RH

1шт.

(2) STOP, armrest

1шт.

(4) BOLT, 3/8-16x.75

1шт.

(2) SCREW, #10

1шт.

(4) LOCKWASHER, .375

1шт.

(2) WASHER, wave

1шт.
