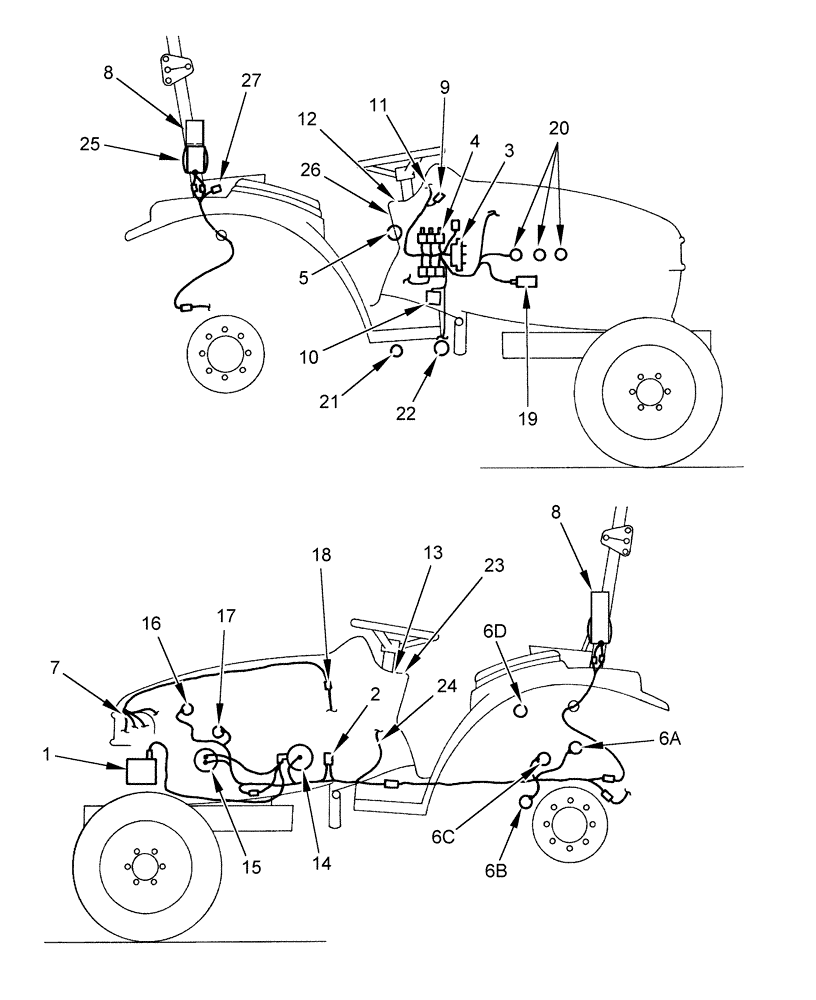

Запчасти Case IH DX31 (06.02) - ELECTRICAL COMPONENT LOCATION FUNCTION (06) - ELECTRICAL SYSTEMS

1

B5150W

WET BATTERY

United States

1шт.

1

CB51435W

BATTERY, WET

BATTERY WET Canada

1шт.

2

84038658

FUSE,40 Amp

Main, Refer to Fig. 06.02.01

1шт.

3

NSS

NOT SOLD SEPARAT

Block, Fuse Refer to Fig. 06.02.01 for Fuses

1шт.

4

86509590

RELAY

Fuel Shutoff, Glow Plug Lamp, Auxiliary Worklight, PTO Safety Interlock, Hazard Flasher, Cutoff, PTO Alarm, Serial Range: Refer-Fig.06.04

6шт.

4

86537972

RELAY

Neutral Start, PTO Safety Start, Glow Plug, Power, Cruise Control Relay, Starter Relay Refer to Fig. 06.04

5шт.

4

SBA385870301

TIMER,12V

Glow Plug Lamp, Refer to Fig. 06.04

1шт.

5

86405635

SWITCH ASSY

Ignition Refer to Fig. 06.06

1шт.

5

87577814

IGNITION SWITCH

Refer to Fig. 06.06

1шт.

6a

SBA385200730

SWITCH

Range Gear Refer to Fig. 06.06.01

1шт.

6b

SBA385201260

SWITCH

Rear PTO Refer to Fig. 06.06.01

1шт.

6c

86531140

SWITCH

Mid PTO Refer to Fig. 06.06.01

1шт.

6d

87385234

SWITCH

Operator's Presence, Refer to Fig. 06.06

1шт.

7

86400128

HEADLAMP

Refer to Fig. 06.09

1шт.

8

86404264

LIGHT,12V, 21W, Amber/Red

Rear, LH Contains Taillight & Flasher Warning Light Refer to Fig. 06.10

1шт.

8

86404265

LIGHT

Rear, RH Contrains Taillight & Flasher Warning Light Refer to Fig. 06.10

1шт.

9

86403092

FLASHER UNIT

Turn Signal/Flasher Control Module Refer to Fig. 06.06.02

1шт.

10

86537972

RELAY

Cruise Control, Refer to Fig. 06.04

1шт.

11

86403815

INSTRUMENT PANEL

Refer to Fig. 06.07

1шт.

11

86403815R

REMAN-INSTR CLUSTER

1шт.

11

86403815C

CORE-CLUSTER, INSTR

Return Number

1шт.

12

86545720

LIGHT SWITCH

Light Switch Refer to Fig. 06.07

1шт.

13

86545718

FLASHER SWITCH

Hazard Warning Refer. to Fig. 06.07.01

1шт.

14

SBA185086551

STARTER MOTOR

Includes: Ref. 2 - 21, DX31 Refer to Fig. 01.10 -- 9 Tooth Drive

1шт.

14

SBA185086530

STARTER MOTOR

Includes: Ref. 2 thru 24, DX34, DX35 (Australia) Refer to Fig. 01.11

1шт.

14

SBA185086530R

REMAN-STARTER

Remanufactured Starter -- 11 Tooth Drive

1шт.

14

SBA185086530C

CORE-STARTER

Return Part Number

1шт.

14

SBA185086530GV

STARTER MOTOR

Value

1шт.

15

SBA185046320

ALTERNATOR

Refer to Fig. 01.09

1шт.

15

SBA185046320R

REMAN-ALTERNATOR

DX31, DX34

1шт.

15

SBA185046320C

CORE-ALTERNATOR

Return Part Number

1шт.

15

SBA185046320GV

ALTERNATOR

Value

1шт.

16

SBA185246060

SENDER UNIT

Oil Pressure Refer to Fig. 01.06

1шт.

17

SBA385720070

SENSOR

Engine Coolant Temperature Refer to Fig. 01.08

1шт.

18

86525311

SENDER UNIT

Fuel, Use Gasket 48751 as Replacement Gasket Refer to Fig. 02.02

1шт.

19

SBA185206084

SOLENOID

Fuel Shutoff Refer to Fig. 01.12

1шт.

20

SBA185366190

GLOW PLUG

Refer to Fig. 01.12

3шт.

21

86402702

PARK BRAKE SWITCH

Refer to Fig. 06.06.01

1шт.

22

86530877

SWITCH

Cruise Control Brake Release Refer to Fig. 06.06.01 & 07.06

1шт.

23

87300030

SWITCH

Cruise Control, Refer to Fig. 06.08

1шт.

24

87316542

ELECTROMAGNET

6" Wire Lead, Cruise Control Refer to Fig. 03.17

1шт.

25

SP1229985DS

WORK LAMP

Rear, Includes: (1) Male Bullet, (1) 1/4" Ring Terminal & (1) Female Bullet, Refer to Fig. 06.11

1шт.

26

86400240

SWITCH

Turn Signal Refer to Fig. 06.06

1шт.

27

0C

ORDER COMPONENTS

Auxiliary Electrical Power Socket Refer to Fig. 06.06 for Components

1шт.

28

5188605

BUZZER,12V, 0.7A

Park Brake Refer to Fig. 06.06.02

1шт.
