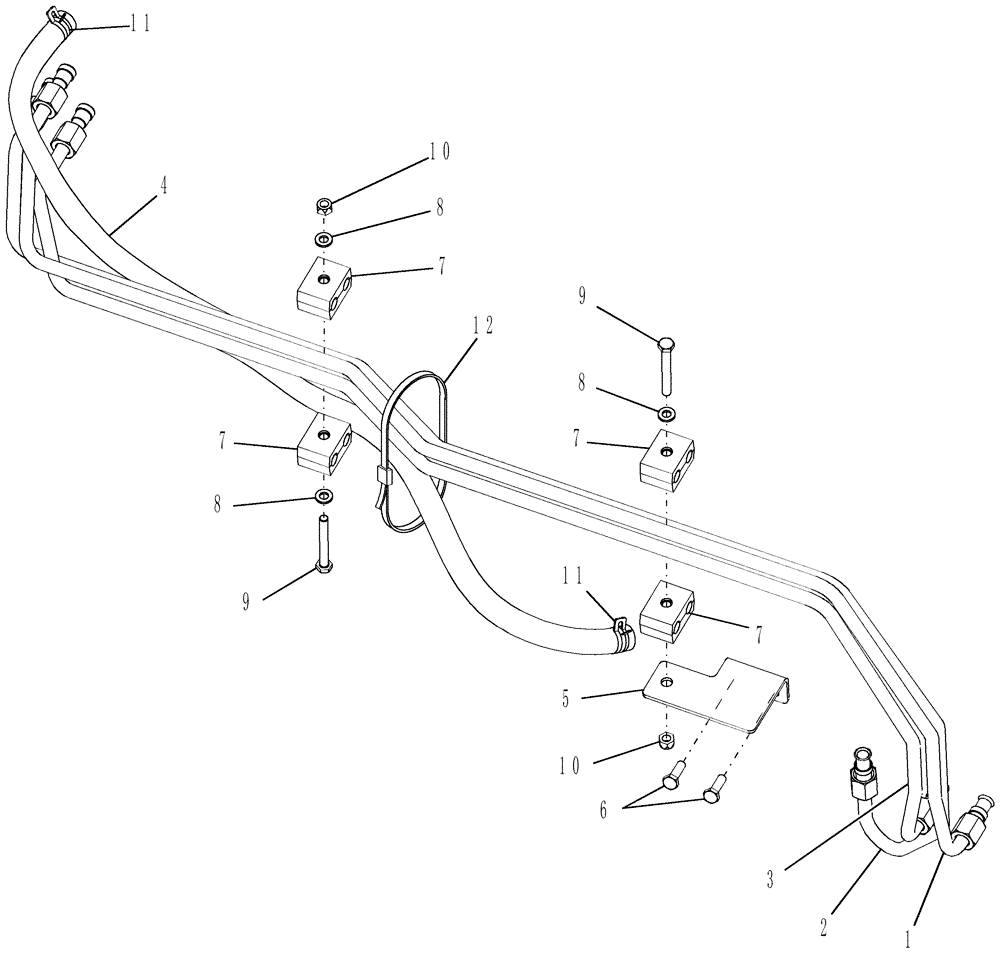

Запчасти Case IH DX31 (04.08.01) - POWER STEERING LINES (04) - FRONT AXLE & STEERING

1

87337158

HYD TUBE

Left Steering, L

1шт.

2

87337156

HYD TUBE

Steering Supply, P

1шт.

3

87337159

HYD TUBE

Right Steering, R

1шт.

4

84147083

HOSE,9.50 mm ID x 700.00 mm, SAE 30R2 Type 1

Power Steering Reservoir

1шт.

5

86567730

BRACKET

Power Steering Tube

1шт.

6

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

2шт.

7

86400111

CLAMP

Halves 3/8

4шт.

8

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

3шт.

9

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

10

353308

NUT,M6 x 1.0, Cl 8

2шт.

11

86400353

HOSE CLAMP,#DW-9.5

2шт.

12

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.
