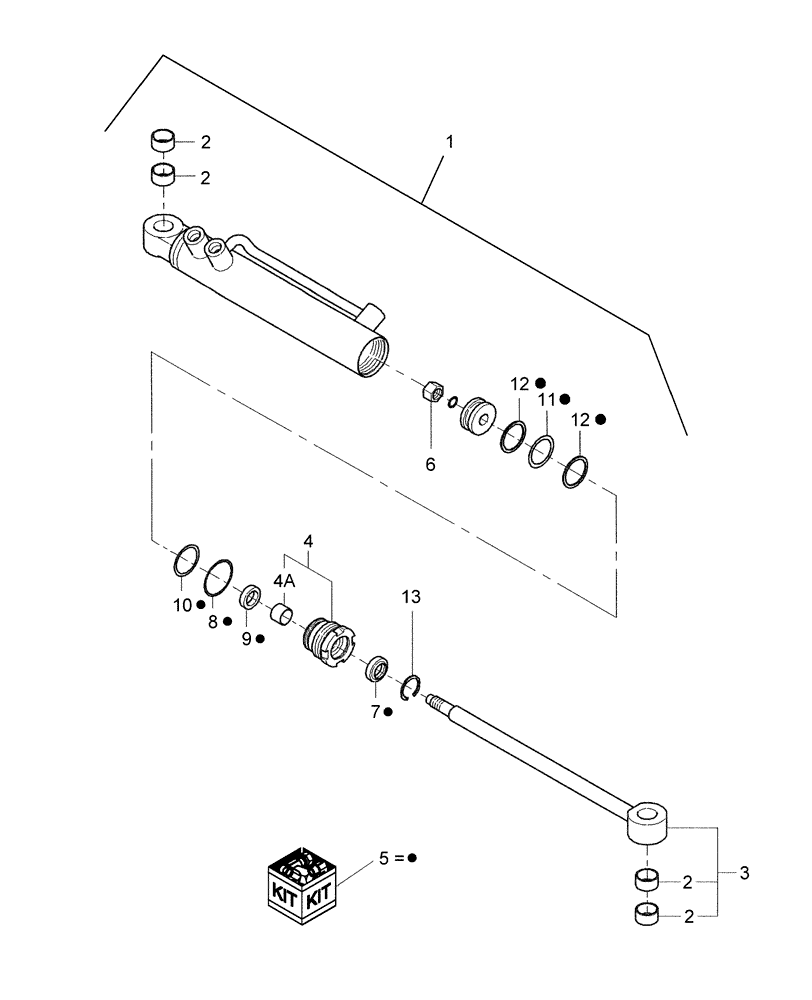

Запчасти Case IH DX31 (04.08) - POWER STEERING CYLINDER, W/FWD (04) - FRONT AXLE & STEERING

1

SBA344953380

HYDRAULIC CYLINDER

Includes: Ref. 2 - 13

1шт.

2

SBA344960432

BUSHING

4шт.

3

SBA344960445

PISTON ROD

Includes: Ref. 2

1шт.

4

SBA344960452

KIT

Guide, Includes: Ref. 4A

1шт.

4a

SBA344960429

BUSHING

1шт.

5

SBA344960440

SEAL KIT

Includes: Ref. 7 - 12

1шт.

6

SBA020910012

NUT,M12, Cl 8.8

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL, Dust

1шт.

8

SBA052400380

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

PACKING, Rod

1шт.

10

SBA052310300

O-RING

Cylinder Head

1шт.

11

SBA052110290

O-RING

Piston

1шт.

12

NSS

NOT SOLD SEPARAT

RING, Back-Up

2шт.

13

SBA344960437

SNAP RING

1шт.
