(04.07.01) - POWER STEERING PUMP BREAKDOWN

Запчасти Case IH DX31 (04.07.01) - POWER STEERING PUMP BREAKDOWN (04) - FRONT AXLE & STEERING

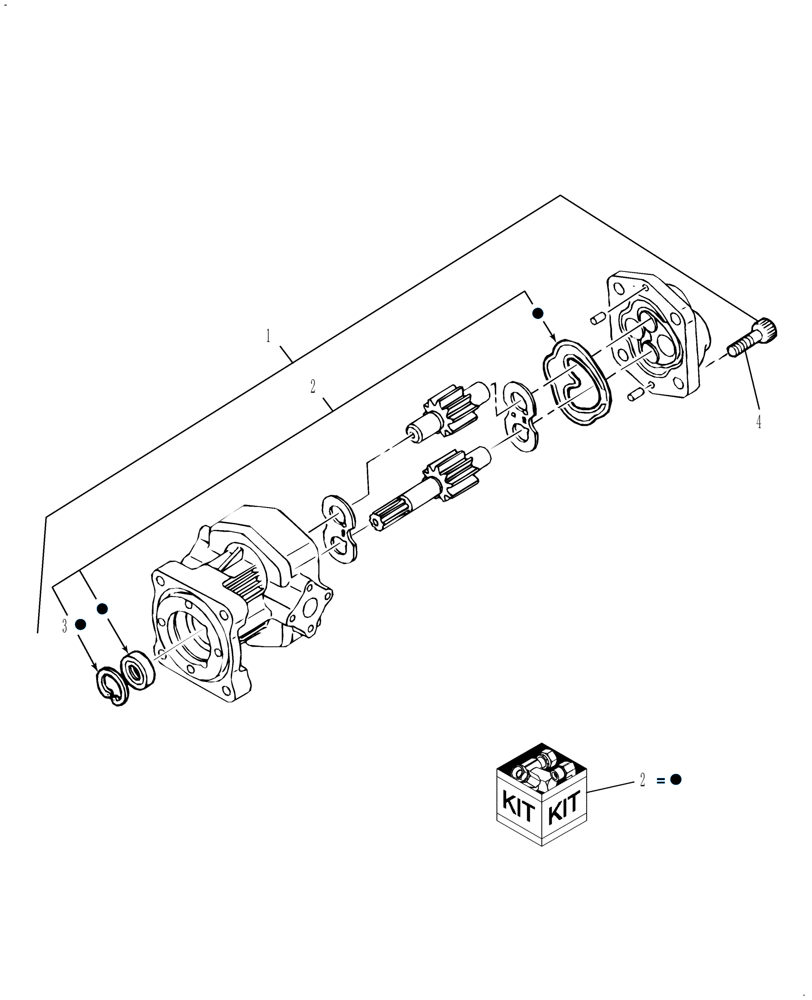

Схема запчастей Case IH DX31 - (04.07.01) - POWER STEERING PUMP BREAKDOWN (04) - FRONT AXLE & STEERING
3
2
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SBA340451020

HYDRAULIC PUMP

Power Steering Includes: Ref. 2-4

1шт.

SBA340451020R

REMAN-HYD PUMP

DX31 PIN # Z6DD00103 & ABOVE (1/06-), DX35 (CLASS 2) AUSTRALI (3/09-) BOTH 3 CYL COMPACT TRACTOR, DX34 (3/06-)

1шт.

SBA340451020C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

SBA340490224

SEAL KIT

Power Steering

1шт.

3

301642

SNAP RING,M28, Int

1шт.

4

SBA340490237

BOLT

4шт.

Выбрано товаров: 0
