Запчасти Case IH DX31 (03.18) - CONTROL LEVERS, TRANSMISSION RANGE, REAR PTO, MID PTO & FWD (03) - TRANSMISSION

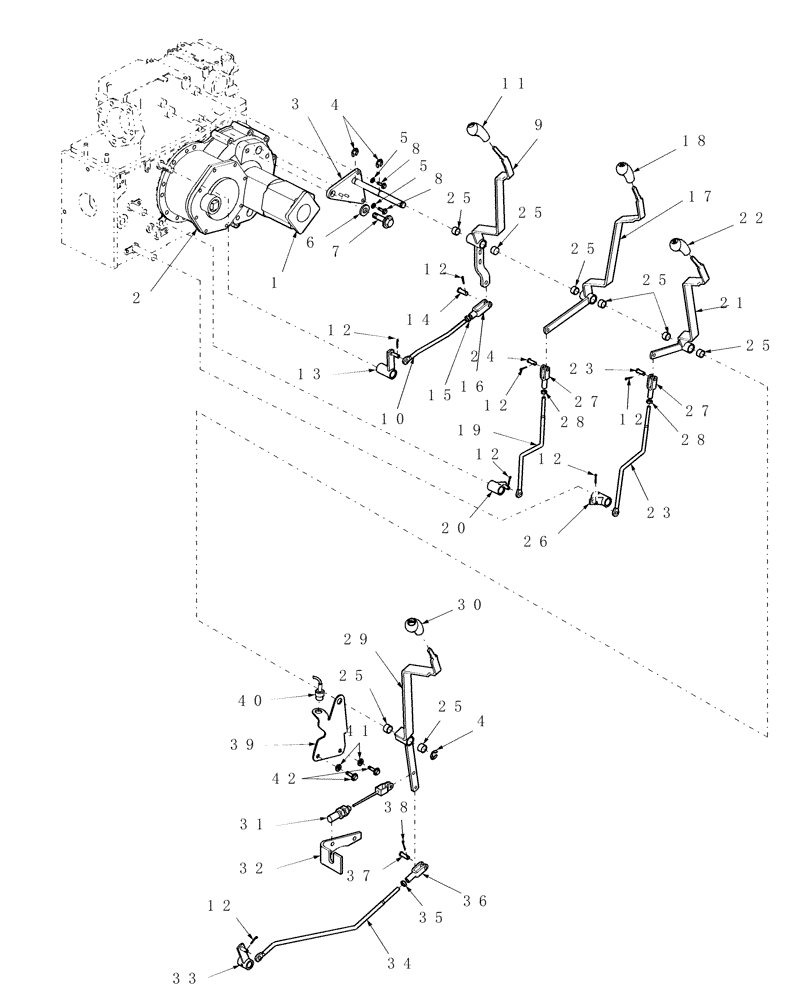

Схема запчастей Case IH DX31 - (03.18) - CONTROL LEVERS, TRANSMISSION RANGE, REAR PTO, MID PTO & FWD (03) - TRANSMISSION
37
39
33
16
12
32
31
12
30
12
8
25
12
29
12
27
41
25
38
24
17
15
26
10
36
22
28
25
23
28
12
25
23
11
34
6
8
21
7
12
4
27
2
1
40
25
19
25
35
5
18
13
42
4
5
3
14
25
9
20

Артикул

Название

Примечание

Количество

1

SBA326344380

HOUSING

Wheel Shaft

1шт.

2

SBA328001161

BRAKE ASSY.

Cover

1шт.

3

86540880

PIVOT

L.H.

1шт.

4

505291

LOCKING RING,#62, .480" Dia, E-Type

3шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

6

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

7

86511846

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

1шт.

8

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

9

86519835

LEVER

Transmission

1шт.

10

86530923

CONNECTING LINK

Transmission

1шт.

11

86403805

KNOB

Range

1шт.

12

280250

COTTER PIN,3/32" OD x 3/4" L

6шт.

13

SBA324105950

LEVER

Change, Range

1шт.

14

510390

CLEVIS PIN,8.33mm OD x 30.66mm L

1шт.

15

87308

JAM NUT,Jam, 3/8"-24, G2

1шт.

16

42130

YOKE,3/8" - 24

End

1шт.

17

86524910

LEVER

Rear PTO

1шт.

18

86524781

KNOB

Rear PTO

1шт.

19

86530924

CONNECTING LINK

Rear PTO

1шт.

20

SBA324105960

LEVER

Change, Rear PTO

1шт.

21

86524800

LEVER

Mid PTO

1шт.

22

86524780

KNOB

Mid PTO

1шт.

23

86530925

CONNECTING LINK

Mid PTO

1шт.

24

200731

CLEVIS PIN,7.9mm OD x 26.72mm L

2шт.

25

86524680

BUSHING

8шт.

26

SBA324105970

LEVER

Change, Mid PTO

1шт.

27

86629512

YOKE,5/16" - 24

End

2шт.

28

87307

JAM NUT,Jam, 5/16"-24, G2

2шт.

29

86526750

LEVER

FWD. Includes: Ref. 35

1шт.

30

86524782

KNOB

FWD

1шт.

31

86524844

CABLE

Brake, FWD Clutch

1шт.

32

86402610

BRACKET

FWD Cable

1шт.

33

SBA324105980

LEVER

Change, FWD, STD

1шт.

34

86543987

CONNECTING LINK

FWD

1шт.

35

87307

JAM NUT,Jam, 5/16"-24, G2

1шт.

36

86629512

YOKE,5/16" - 24

End, STD

1шт.

37

200731

CLEVIS PIN,7.9mm OD x 26.72mm L

1шт.

38

280250

COTTER PIN,3/32" OD x 3/4" L

2шт.

39

86543716

BRACKET

Support

1шт.

40

86531140

SWITCH

Safety, Mid PTO

1шт.

41

492-11031

LOCK WASHER,5/16"

2шт.

42

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

Выбрано товаров: 42
