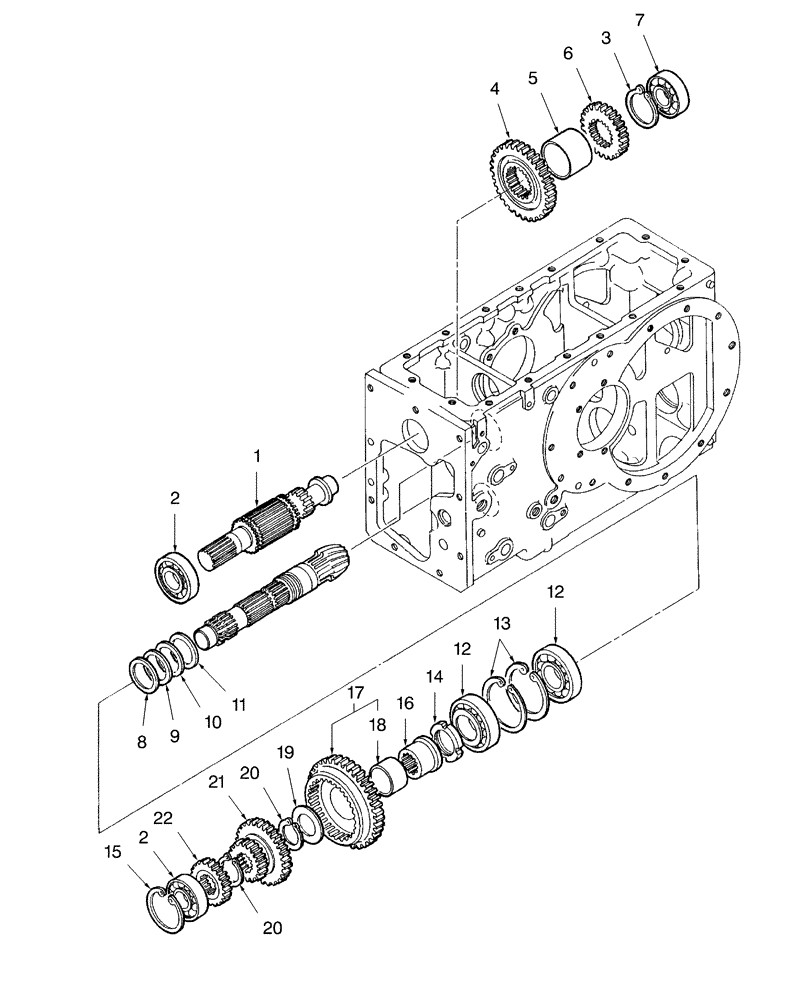

Запчасти Case IH DX31 (03.11) - REAR TRANSMISSION GEARS, W/9 X 3 (03) - TRANSMISSION

1

SBA322520581

MAIN SHAFT

1шт.

2

210041

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

3

370006

SNAP RING,M40, Ext

1шт.

4

SBA322323590

GEAR

Fixing, High Range

1шт.

5

SBA399232850

COLLAR

1шт.

6

SBA322323540

GEAR

Fixing, Mid Range

1шт.

7

SBA040156204

BALL BEARING,20mm ID x 47mm OD x 14mm W

1шт.

8

SBA199281210

SHIM,0.1mm Thk

1шт.

9

SBA199281220

SHIM,0.2mm Thk

1шт.

10

SBA199280490

SHIM,0.5mm Thk

(.020")

1шт.

11

SBA199260040

THRUST WASHER

1шт.

12

309085

BEARING ASSY,30mm ID x 62mm OD x 17.25mm W

2шт.

13

370012

RING,M62, Internal

1шт.

14

SBA399370760

NUT

1шт.

15

33915

SNAP RING,2.062", Int, #206

1шт.

16

SBA322611180

COUPLING

1шт.

17

SBA322031460

GEAR SET

1шт.

18

SBA398510230

DRIVE BUSHING

1шт.

19

SBA399260940

THRUST WASHER

1шт.

20

SBA036100028

SNAP RING

2шт.

21

SBA322360840

GEAR

Slide B

1шт.

22

SBA322326640

GEAR

Fixing A, w/FWD w/9x3 w/HST

1шт.
