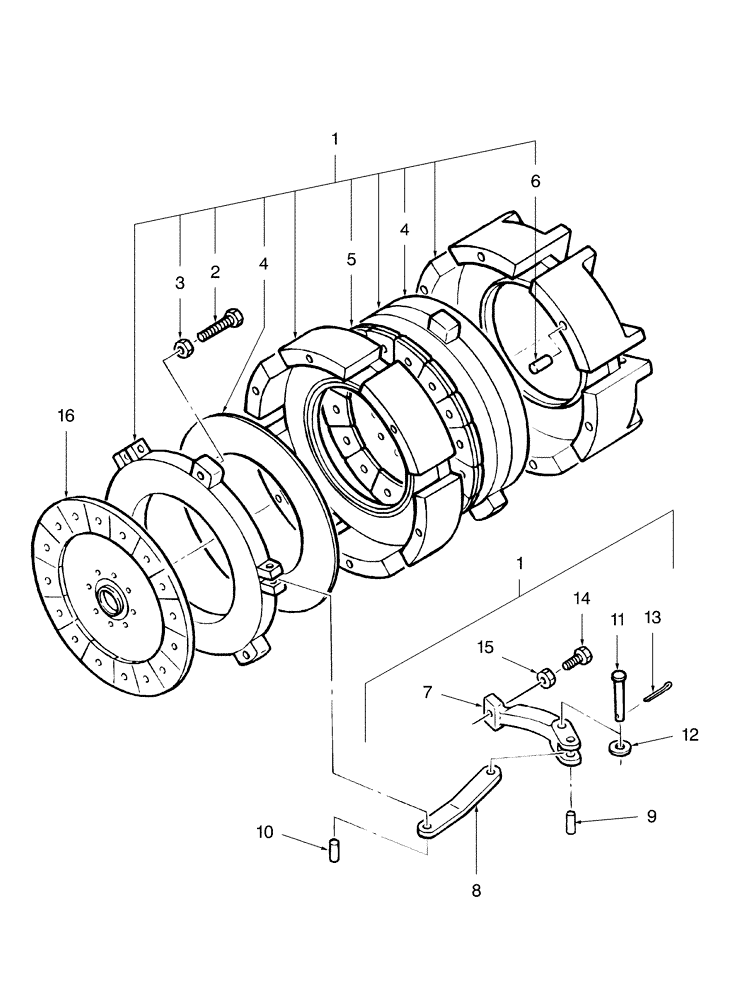

Запчасти Case IH DX31 (03.02) - DOUBLE CLUTCH W/9 X 3 (03) - TRANSMISSION

1

SBA320040970

CLUTCH & DISC ASSY

Double, DX31 Includes: Ref. 2 - 15

1шт.

1

SBA320040970R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate

1шт.

1

SBA320040970C

CORE-CLUTCH PLATE

Return Number

1шт.

2

SBA320460980

BOLT

3шт.

3

SBA320460990

NUT

3шт.

4

NS

NOT SERVICED

Diaphragm Spring

2шт.

5

SBA320400630

CLUTCH DISC

CLUTCH DISK PTO DX31

1шт.

6

SBA320461000

DOWEL

3шт.

7

SBA320460900

LEVER

Release

3шт.

8

SBA320460960

CONNECTING LINK

Release Sub

3шт.

9

SBA320460930

PIN

Release, Lever

3шт.

10

SBA320460910

PIN

Release, Lever

3шт.

11

SBA320460920

PIN

Release, Lever

3шт.

12

SBA026100008

WASHER

M8

3шт.

13

SBA030102016

COTTER PIN

3шт.

14

SBA320460940

BOLT

Adjusting

3шт.

15

SBA320460950

NUT

Adjusting Bolt

3шт.

16

SBA320400620

CLUTCH DISC

Clutch Disk Transmission DX31

1шт.

16

SBA320400620R

REMAN-CLUTCH PLATE

Clutch Disk Transmission DX31

1шт.

16

SBA320400620C

CORE-CLUTCH PLATE

Return Number

1шт.
