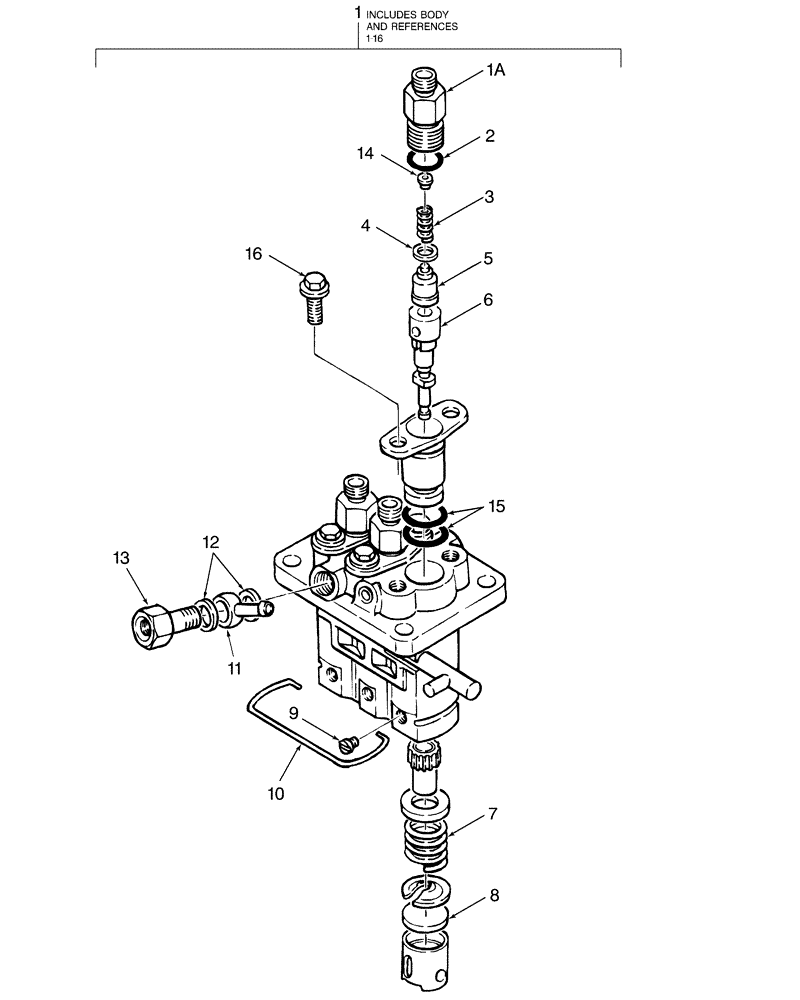

Запчасти Case IH DX31 (01.13) - INJECTION PUMP (01) - ENGINE

1

SBA131017811

FUEL INJECTION PUMP

Includes: Body & Ref. 1A - 16

1шт.

SBA131017811R

REMAN-FUEL INJ PUMP

DX31 TRACTOR PIN # Z6DD00103 & ABOVE (1/06-), DX34 TRACTOR, DX35 TRACTOR (CLASS 2) - AUSTRALIA Both (3/06-)

1шт.

SBA131017811C

CORE-FUEL INJ PUMP

Return Number

1шт.

1a

NSS

NOT SOLD SEPARAT

HOLDER

3шт.

2

NSS

NOT SOLD SEPARAT

O-RING

3шт.

3

NSS

NOT SOLD SEPARAT

SPRING

3шт.

4

NSS

NOT SOLD SEPARAT

GASKET

3шт.

5

NSS

NOT SOLD SEPARAT

VALVE, Delivery

3шт.

6

NSS

NOT SOLD SEPARAT

PLUNGER

3шт.

7

NSS

NOT SOLD SEPARAT

SPRING

3шт.

8

NSS

NOT SOLD SEPARAT

KIT, PLATE

1шт.

9

NSS

NOT SOLD SEPARAT

PIN

3шт.

10

NSS

NOT SOLD SEPARAT

RING, Snap

1шт.

11

NSS

NOT SOLD SEPARAT

FITTING, Banjo

1шт.

12

NSS

NOT SOLD SEPARAT

GASKET

2шт.

13

NSS

NOT SOLD SEPARAT

BOLT

1шт.

14

NSS

NOT SOLD SEPARAT

SEAT, Spring

3шт.

15

NSS

NOT SOLD SEPARAT

O-RING

6шт.

16

NSS

NOT SOLD SEPARAT

BOLT

6шт.
