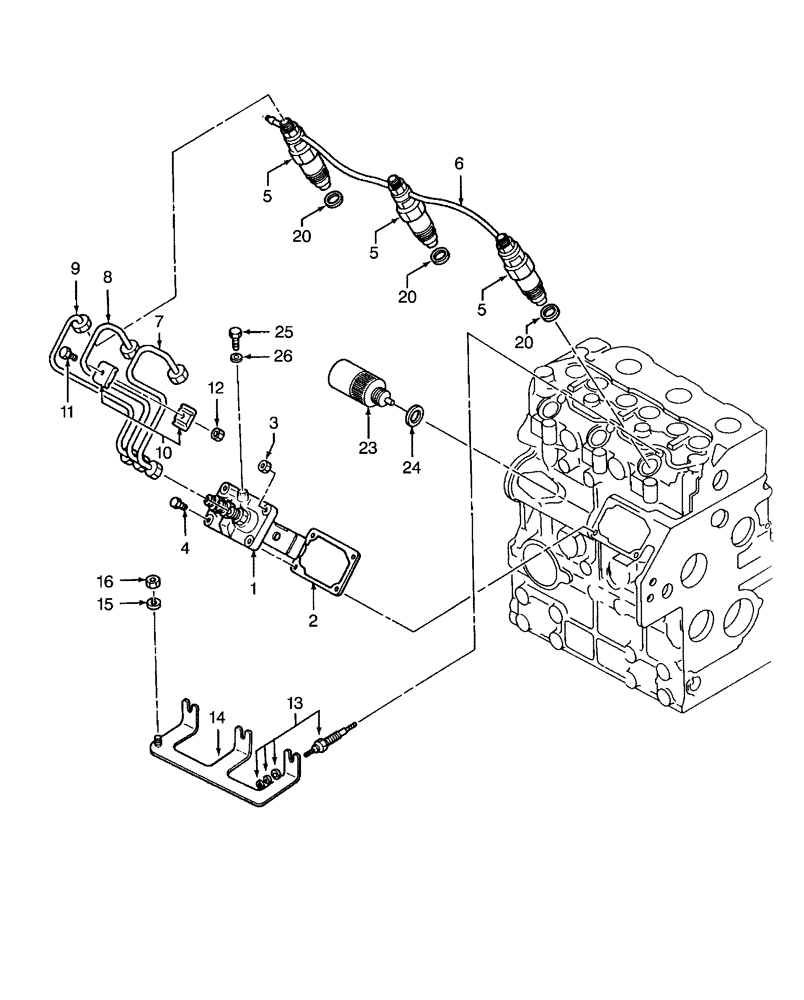

Запчасти Case IH DX31 (01.12) - INJECTION PUMP & LINES (01) - ENGINE

1

SBA131017811

FUEL INJECTION PUMP

Refer to Fig. 01.13 For Breakdown, Components Not Serviced Separately

1шт.

1

SBA131017811R

REMAN-FUEL INJ PUMP

DX31 TRACTOR PIN # Z6DD00103 & ABOVE (1/06-), DX34 TRACTOR, DX35 TRACTOR (CLASS 2) - AUSTRALIA Both (3/06-)

1шт.

1

SBA131017811C

CORE-FUEL INJ PUMP

Return Number

1шт.

2

SBA131426310

SHIM KIT

Shims, Includes: (1) each of 0.2mm, 0.3mm, 0.4mm & 0.5mm

1шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

4

SBA010800820

BOLT

2шт.

5

SBA131406360

FUEL SYSTEM INJECTOR

3шт.

5

87298764

REMAN-FUEL INJECTOR

3шт.

5

87298765

CORE-FUEL INJECTOR

Return Number

3шт.

6

SBA131606290

TUBE

Return

1шт.

7

SBA131507601

TUBE

DX31

1шт.

7

SBA131507700

RIGID TUBE

DX34, DX35

1шт.

8

SBA131507611

TUBE

DX31

1шт.

8

SBA131507710

RIGID TUBE

DX34, DX35

1шт.

9

SBA131507621

TUBE

DX31

1шт.

9

SBA131507720

RIGID TUBE

DX34, DX35

1шт.

10

SBA199106021

CLAMP

4шт.

11

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

12

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

13

SBA185366190

GLOW PLUG

3шт.

14

SBA185376140

SUPPORT

Glow Plug

1шт.

15

9672401

LOCK WASHER

Ext T, M4

1шт.

16

100012

NUT,M4 x 0.7, Cl 8

1шт.

20

SBA131426200

SEAL

3шт.

23

SBA185206084

SOLENOID

Fuel Shutoff

1шт.

Not Included in Long Block

1шт.

24

SBA025100016

WASHER,16.4mm ID x 27mm OD x 2mm Thk

Seal #16

1шт.

25

SBA131136350

BOLT

1шт.

26

SBA025100008

SEALING WASHER,7.3mm ID x 14mm OD x 1.8mm Thk

Seal, #08

1шт.
