Запчасти Case IH DX31 (01.03) - CYLINDER HEAD (01) - ENGINE

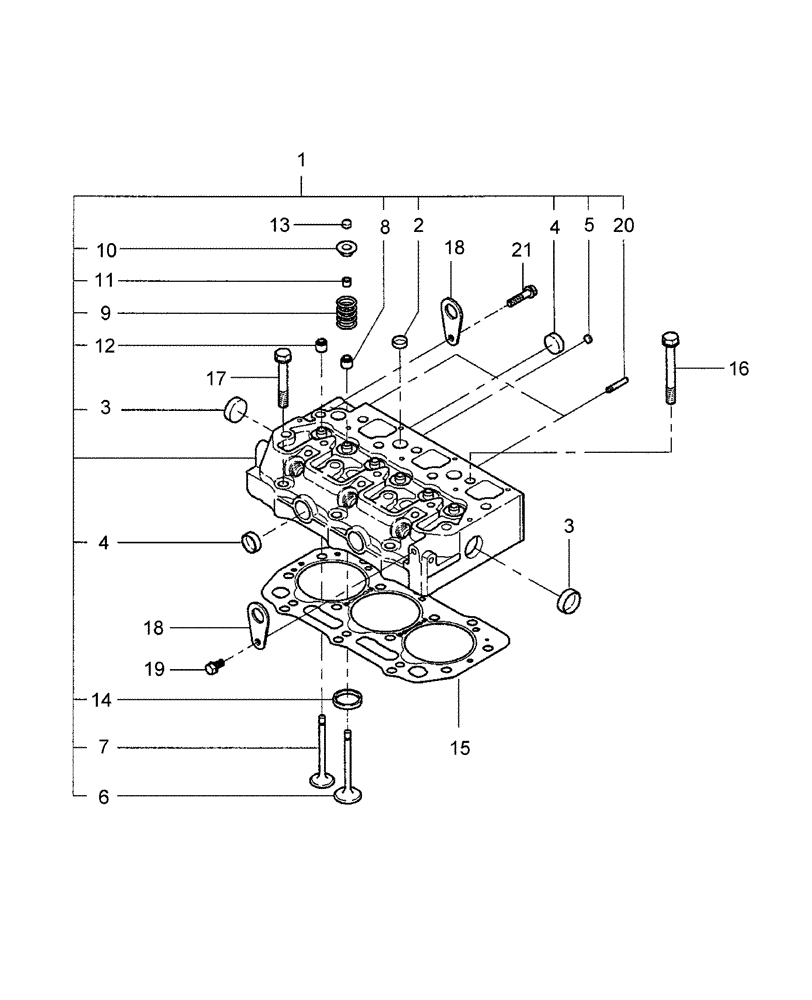

Схема запчастей Case IH DX31 - (01.03) - CYLINDER HEAD (01) - ENGINE
18
4
3
3
12
1
20
16
7
15
2
14
19
10
21
9
5
13
4
11
6
18
17
8

Артикул

Название

Примечание

Количество

1

SBA111010471

CYLINDER HEAD

Includes: Ref. 2 - 12, 14 & 20

1шт.

2

SBA064210020

SEALING ELEMENT

20 MM

5шт.

3

SBA064210030

PLUG,30mm

2шт.

4

SBA064210025

PLUG,25mm

4шт.

5

SBA064210010

PLUG,10mm

2шт.

6

SBA120166350

STD INLET VALVE

STD ENGINE INLET VALVE Intake

3шт.

7

SBA120176360

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

3шт.

8

SBA120406070

SEAL

Intake

3шт.

9

SBA198216700

SPRING

6шт.

10

SBA120186080

RETAINER

6шт.

11

SBA120226070

RETAINER

Keeper, Valve

12шт.

12

SBA120406050

SEAL

Exhaust

3шт.

13

SBA120216040

CAP

6шт.

14

SBA110136400

VALVE SEAT

Intake

3шт.

15

SBA111147491

CYLINDER HEAD GASKET

T=1.3

1шт.

15

SBA111147501

CYLINDER HEAD GASKET,1.4mm Thk

T=1.4

1шт.

16

SBA111136480

BOLT

11шт.

17

SBA111136490

BOLT

3шт.

18

SBA195816540

LIFTING EYE

2шт.

19

SBA011510816

BOLT

M8 x 16

1шт.

20

SBA012110625

STUD,M6 x 25

2шт.

21

SBA011510816

BOLT

M8 x 16

1шт.

Выбрано товаров: 22
