(11.04) - REAR WHEEL WEIGHTS, 75 LBS., R4 FWD - 718470036

Запчасти Case IH DX31 (11.04) - REAR WHEEL WEIGHTS, 75 LBS., R4 FWD - 718470036 (11) - WHEELS/TRACKS

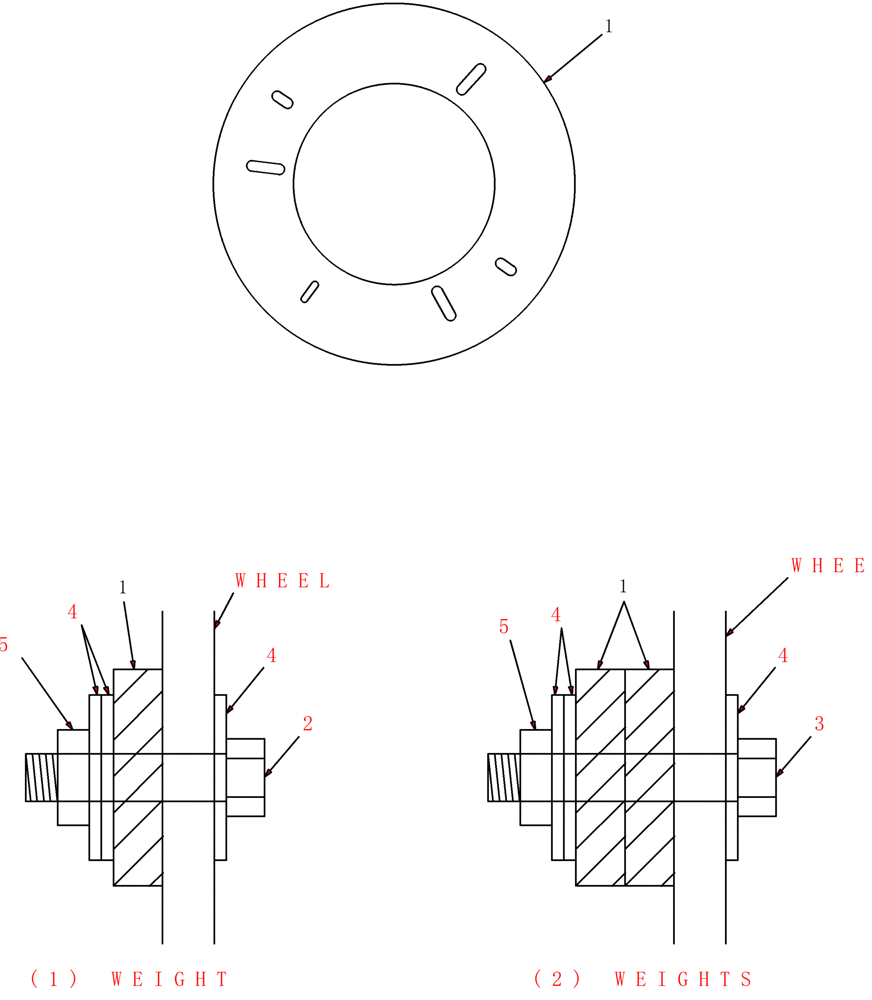

Схема запчастей Case IH DX31 - (11.04) - REAR WHEEL WEIGHTS, 75 LBS., R4 FWD - 718470036 (11) - WHEELS/TRACKS
3
wheel
wheel
(2) weights
4
4
5
2
(1) weight
4
1
4
1
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

718470036

DIA KIT, ADD PROD

Weight, Rear Wheel, 75 Lbs, R4 FWD

1шт.

2

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

Used W/(1) Weight Per Wheel

3шт.

3

9627857

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

Used With (2) Weights Per Wheel

3шт.

4

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

Use (9) with both (1) & (2) weights per wheel

9шт.

5

280431

NUT,1/2"-13, G5

Use (3) With Both (1) & (2) Weights Per Wheel

3шт.
