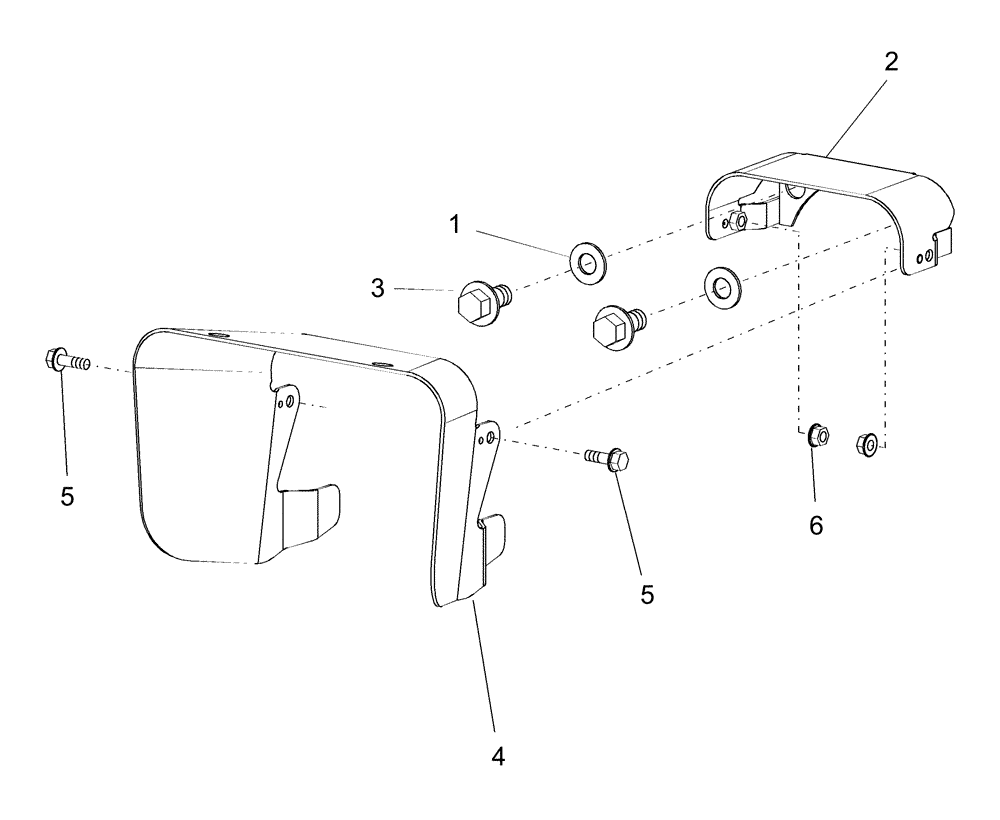

Запчасти Case IH DX31 (09.03) - PTO SHIELD (09) - IMPLEMENT LIFT

1

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

2

86402580

BRACKET

1шт.

3

86511846

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

2шт.

4

86402603

SHIELD

PTO

1шт.

5

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.
