Запчасти Case IH DX29 (10A01) - HYDRAULIC PUMP (07) - HYDRAULIC SYSTEMS

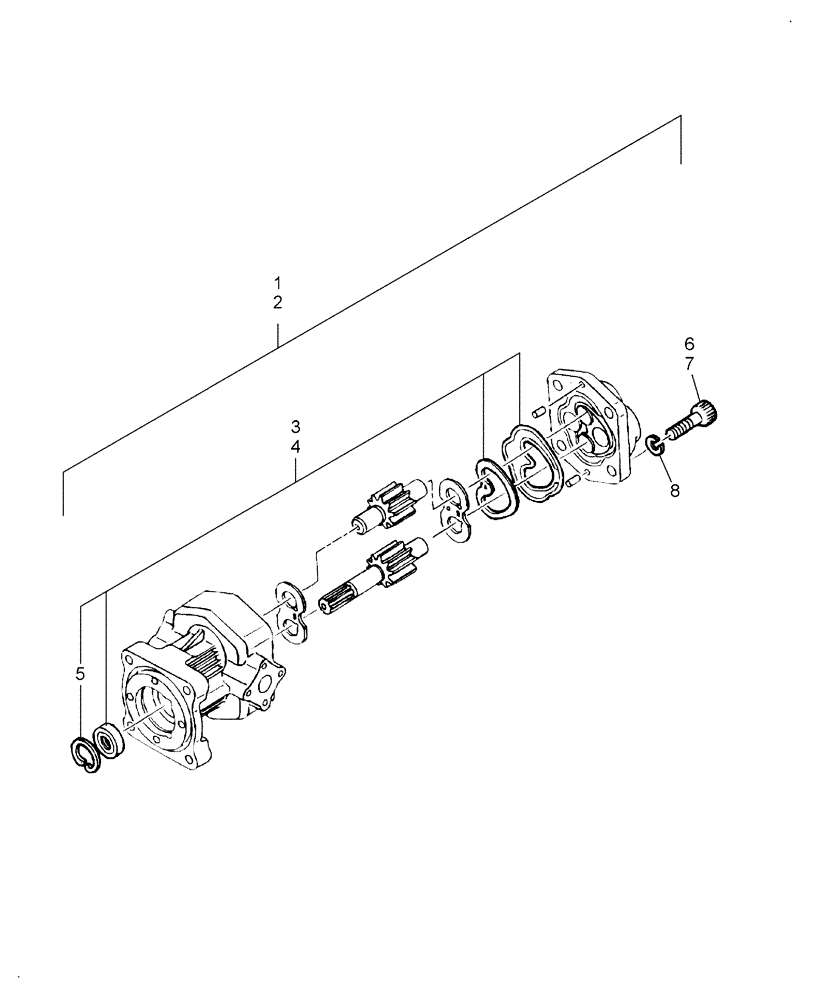

Схема запчастей Case IH DX29 - (10A01) - HYDRAULIC PUMP (07) - HYDRAULIC SYSTEMS
3
2
5
4
1
6
8
7

Артикул

Название

Примечание

Количество

1

SBA340450481

HYDRAULIC PUMP

Pump Assy., Hydraulic System, D25,D29,D33 Includes: Ref. 3, 6 & 8

1шт.

1

SBA340450511

HYDRAULIC PUMP

Pump Assy., Hydraulic System, DX25,DX29,DX33 Includes: Ref. 3, 6 & 8

1шт.

SBA340450511R

REMAN-HYD PUMP

DX25, DX29 S/N HBA0000516 & Aft., DX33 HBA000501 TO

1шт.

SBA340450511C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

SBA340450920

SMALL PUMP

Pump Assy., Power Steering, D25,D29,D33 Includes: Ref. 4, 5 & 7

1шт.

2

SBA340450490

PUMP

Assy., Power Steering, (KP0588ARS) DX25,DX29,DX33 Includes: Ref. 4, 5 & 7

1шт.

3

SBA340490174

SEAL KIT

KIT, SEALS

1шт.

4

SBA340490224

SEAL KIT

Kit, Seal

1шт.

5

SBA036500028

SNAP RING

Ring, Snap

1шт.

6

SBA340490187

BOLT

4шт.

7

SBA340490237

BOLT

4шт.

8

892-11010

LOCK WASHER,M10

4шт.

Выбрано товаров: 12
