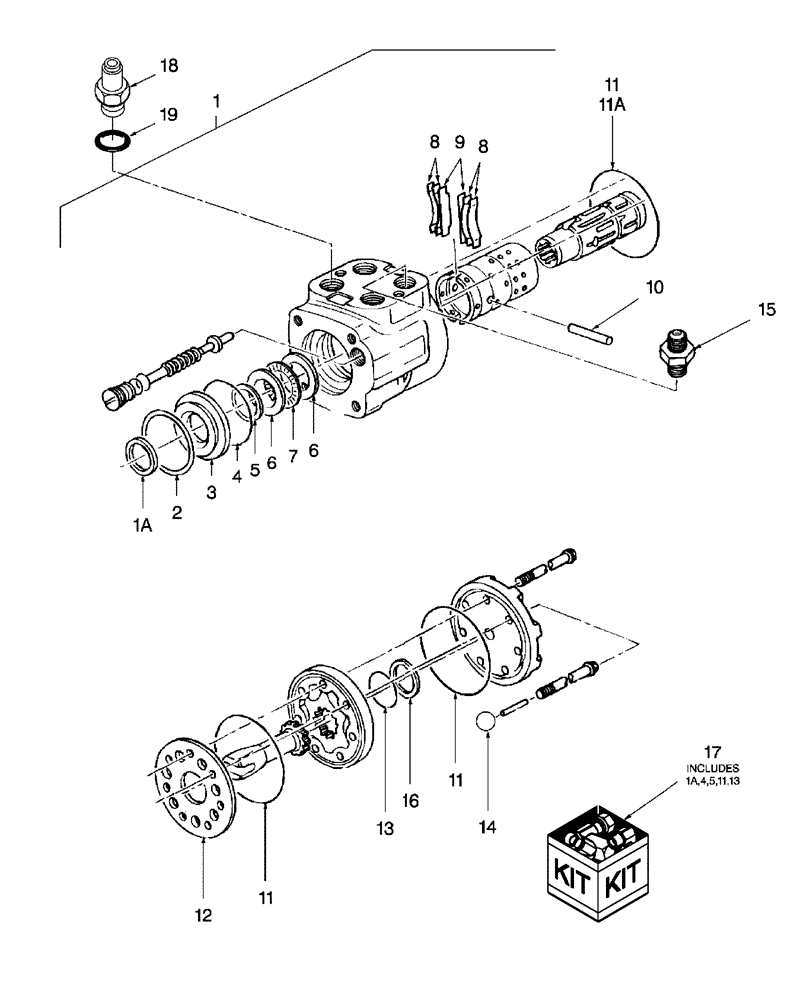

Запчасти Case IH DX29 (03G01) - POWER STEERING CASE ASSY. (06) - FRONT AXLE & STEERING

1

86566454

HYDRAULIC STEERING

Case Assy., Steering

1шт.

1a

SBA334292269

SEAL

Dust

1шт.

2

SBA334292270

RETAINER

1шт.

3

SBA334292271

DRIVE BUSHING

Bushing, Seal Gland

1шт.

4

272380

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

5

SBA334292268

SEAL

Oil

1шт.

6

SBA334292265

RING RACE

Race, Bearing

2шт.

7

SBA334292266

BEARING ASSY

Bearing, Roller

1шт.

8

SBA334292255

SPRING

Centering

4шт.

9

SBA334292256

SPRING

Flat

2шт.

10

SBA334292257

PIN

1шт.

11

86536463

O-RING

2шт.

11a

SBA334293127

O-RING

1шт.

12

SBA334292252

PLATE

Spacer

1шт.

13

SBA334293082

O-RING

Seal Assy., Star/O-Ring

1шт.

14

SBA334292331

BALL

1шт.

15

SBA334293134

HYD CONNECTOR

Connector

1шт.

16

SBA334293081

PLUG

1шт.

17

SBA334293128

SEAL KIT

Kit, Seal, Includes: Ref. 1A, 4, 5, 11, 11A & 13

1шт.

18

SBA340671220

ADAPTER

3шт.

18

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

4шт.

19

SBA052100140

O-RING

3шт.
