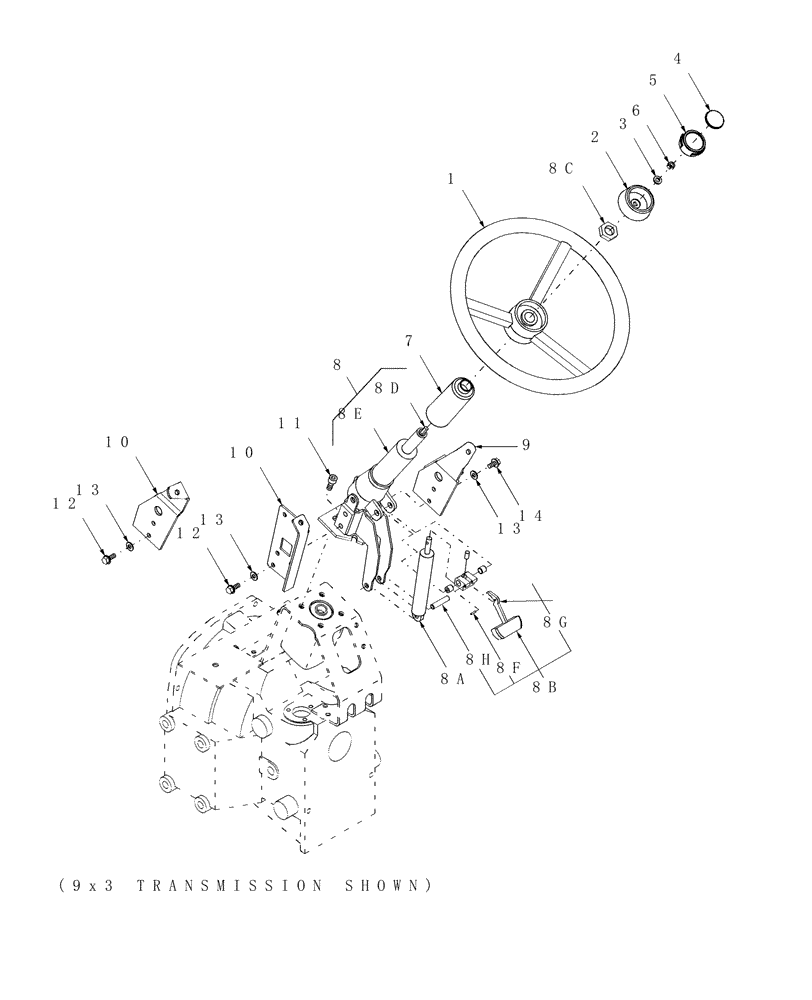

Запчасти Case IH DX29 (03F01) - STEERING COLUMN, TILT (06) - FRONT AXLE & STEERING

1

9821708

STEERING WHEEL

Wheel, Steering

1шт.

2

9821709

KNOB

1шт.

3

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

1шт.

4

86401696

EMBLEM CASE/IH

CIH Logo

1шт.

4a

87308002

DISC

Used to Improve Retention of CIH Logo in Steering Wheel

1шт.

Not Illustrated

1шт.

5

86504533

COVER

Cap, Steering Wheel

1шт.

6

832-46408

NUT,M8 x 1.25, Cl 8

NUT, LOCK, M8 x 1.25", Cl 8

1шт.

7

86522881

COVER

Telescope Cover

1шт.

8

86543812

STEERING COLUMN

Column, Steering, Includes: Ref. 8A thru 8E

1шт.

No Longer Serviced

1шт.

8a

86522914

SHOCK ABSORBER

Gas Shock

1шт.

8b

86530984

KIT

Handle, Tilt Lever, Includes Ref. 8F, 8G, & 8H

1шт.

8c

130321

JAM NUT

Jam, G2, 13/16"-20

1шт.

8d

86014245

SHAFT

Assy.

1шт.

8e

86530987

HOUSING

Assy.

1шт.

8f

86578373

DOWEL

Spring

1шт.

8g

86578372

LEVER

Tilt

1шт.

8h

86578371

PIN

Lock

1шт.

9

86540910

SUPPORT

Rear Hood Assy., DX25,DX29

1шт.

9

86543892

SUPPORT

Rear Hood Assy., DX33

1шт.

10

86522948

SUPPORT

Rear Hood, L.H., HST

1шт.

11

86544072

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8, Full Thd

SCREW, Cap, HS, CL 8.8, M10 x 1.25 x 25

4шт.

11

120052

HEX SOC SCREW,M10 x 25mm, Cl 8.8

4шт.

12

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

WASHER, BELLEVILLE, M8

8шт.

14

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

Hex Flg Hd, CL 8.8, M8 x 1.25 x 16

2шт.

15

86401203

COVER

Gas Strut

1шт.
