Запчасти Case IH DX29 (11F01) - STARTING MOTOR (06) - ELECTRICAL SYSTEMS

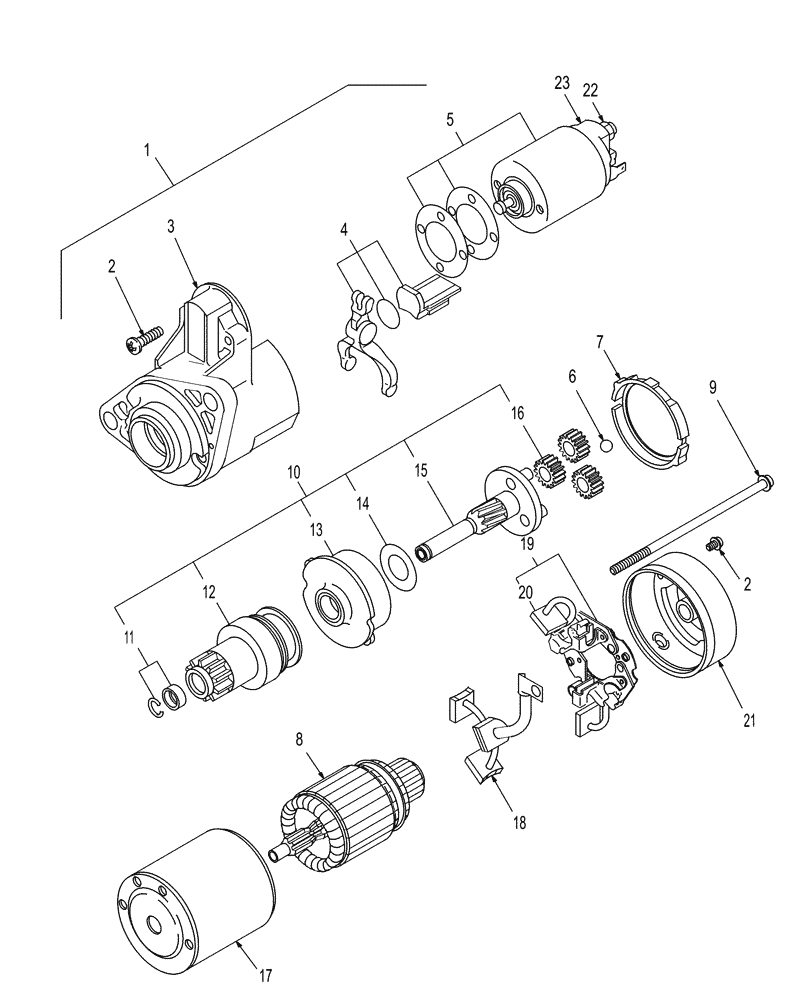

Схема запчастей Case IH DX29 - (11F01) - STARTING MOTOR (06) - ELECTRICAL SYSTEMS
9
3
14
2
17
6
18
23
11
16
22
20
10
13
15
12
1
8
2
19
4
7
5
21

Артикул

Название

Примечание

Количество

1

SBA185086551

STARTER MOTOR

Motor Assy., Starting Includes: Ref. 2 thru 21

1шт.

1

SBA185086551R

REMAN-STARTER

Remanufactured Starter

1шт.

1

SBA185086551C

CORE-STARTER

Return Number

1шт.

1

SBA185086551GV

STARTER MOTOR

Value

1шт.

2

SBA185846468

KIT

Set, Screw

1шт.

3

SBA185846610

BRACKET

Bracket Assy., Front

1шт.

4

SBA185846615

LEVER

Set, Lever

1шт.

5

SBA185816340

SOLENOID

SOLENOID

1шт.

6

SBA185846616

BALL

Ball

1шт.

7

SBA185846617

RETAINER

Retainer

1шт.

8

SBA185846618

ARMATURE

Armature

1шт.

9

SBA185846621

BOLT

Set, Bolt

1шт.

10

SBA185866391

SHAFT

Shaft Assy., Clutch Set Includes: Ref. 11 thru 16

1шт.

11

SBA185846614

PLUG

Set, Stopper

1шт.

12

SBA185866411

CLUTCH

Clutch, Pinion

1шт.

13

SBA185846612

GEAR

Gear Assy., Internal

1шт.

14

SBA185846611

WASHER

Washer

1шт.

15

SBA185866400

SHAFT

Shaft Assy., Gear

1шт.

16

SBA185846613

GEAR

Gear Assy.

3шт.

17

SBA185846619

STATOR

STATOR, Yoke Assy

1шт.

18

SBA185416490

COMMUTATOR BRUSH

Brush Assy.

1шт.

19

SBA185416500

BRUSH HOLDER

Holder Assy., Brush Includes: Ref. 20

1шт.

20

SBA185886070

SPRING

Spring, Brush Set

1шт.

21

SBA185846620

COVER

Bracket Assy., Rear

1шт.

22

SBA020109160

NUT

Nut, Special

1шт.

23

SBA185736330

COVER

Shield

1шт.

Выбрано товаров: 26
