Запчасти Case IH DX29 (07M01) - PEDALS & BRAKE LOCK (HST & 9 X 3) (03) - TRANSMISSION

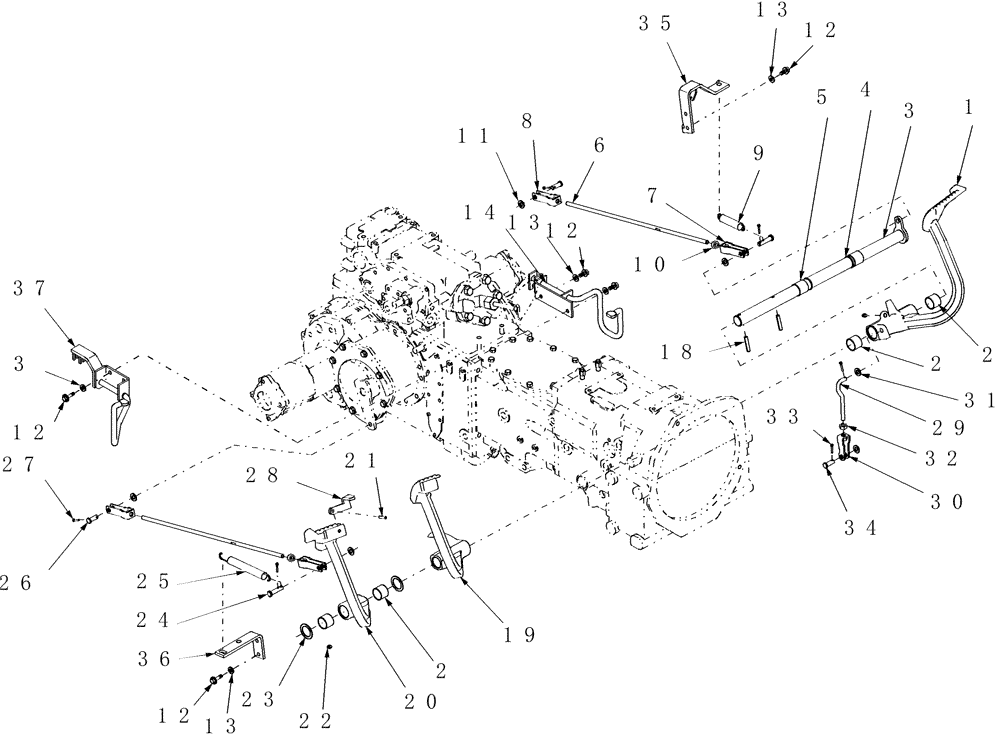

Схема запчастей Case IH DX29 - (07M01) - PEDALS & BRAKE LOCK (HST & 9 X 3) (03) - TRANSMISSION
13
30
13
22
6
10
8
26
2
35
20
12
37
28
12
9
32
21
25
33
27
11
7
18
19
36
3
1
24
4
5
23
2
29
12
34
14
13
13
12
2
31

Артикул

Название

Примечание

Количество

1

86540869

PEDAL

Clutch Includes: SBA060610000 Grease Fitting

1шт.

2

86535945

BUSHING

Clutch

4шт.

3

86530743

SHAFT

Cross

1шт.

4

86530988

O-RING,28.08mm ID x 2mm Width

70 Duro, M28.08 ID x 2 Thk

2шт.

5

86535944

BUSHING

Pedal Shaft

2шт.

6

86530748

ADJUSTMENT ROD,M10 x 530

ROD, ADJUSTMENT, M10 x 1.5 x 530, Brake

2шт.

7

86530749

CLEVIS

Assy., R.H.

2шт.

8

86530750

CLEVIS

Assy., L.H.

2шт.

9

86530740

SPRING

Pedal

2шт.

10

825-1410

NUT,M10, Cl 8

3шт.

11

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

6шт.

12

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

Hex Flg Hd, CL 8.8, M8 x 1.25 x 16

6шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

WASHER, BELLEVILLE, M8

6шт.

14

86574972

DIFF. LOCK ASSY

Differential Lock Assy., L.H., HST

1шт.

17

832-46406

NUT,M6 x 1, Cl 8

Nut, Lock, M6 x 1, Cl 8

1шт.

18

300873

ROLL PIN

Pin, Spring; M8 x 45

2шт.

19

86549914

PEDAL

Brake, L.H.

1шт.

20

86549916

PEDAL

Brake, R.H.

1шт.

Use Grease Zerk SBA060610000

1шт.

21

86555830

ROLL PIN

Pin, Spiral

1шт.

22

SBA060610000

LUBE NIPPLE,M6 x .075

NIPPLE, LUBE, M6 x .075

3шт.

23

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

2шт.

24

86530738

CLEVIS PIN,10mm OD x 46mm L

PIN, CLEVIS, , Brake M10 x 42

2шт.

25

86543804

SPRING

Right Brake

1шт.

26

86530992

CLEVIS PIN,10mm OD x 29.1mm L

PIN, CLEVIS, M10 x 26

3шт.

27

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

7шт.

28

86556100

LATCH

Brake Lock

1шт.

29

86530918

ROD

Double Clutch, 9 x 3

1шт.

29

86526805

ROD

Clutch, HST

1шт.

30

86530920

CLEVIS,M10 x 1.5

Assy., Clutch

1шт.

31

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

32

825-1410

NUT,M10, Cl 8

1шт.

33

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

34

510390

CLEVIS PIN,8.33mm OD x 30.66mm L

Pin, Clevis, 3/8" x 1-1/16"

2шт.

35

86535795

BRACKET

Spring Bracket Assy., 9 x 3

1шт.

36

86530821

BRACKET

Brake Spring

1шт.

37

86574970

DIFF. LOCK ASSY

Differential Lock Assy., R.H., 9 x 3

1шт.

38

86526842

BRACKET

Left Brake, HST (NOT SHOWN ON ART)

1шт.

Выбрано товаров: 38
