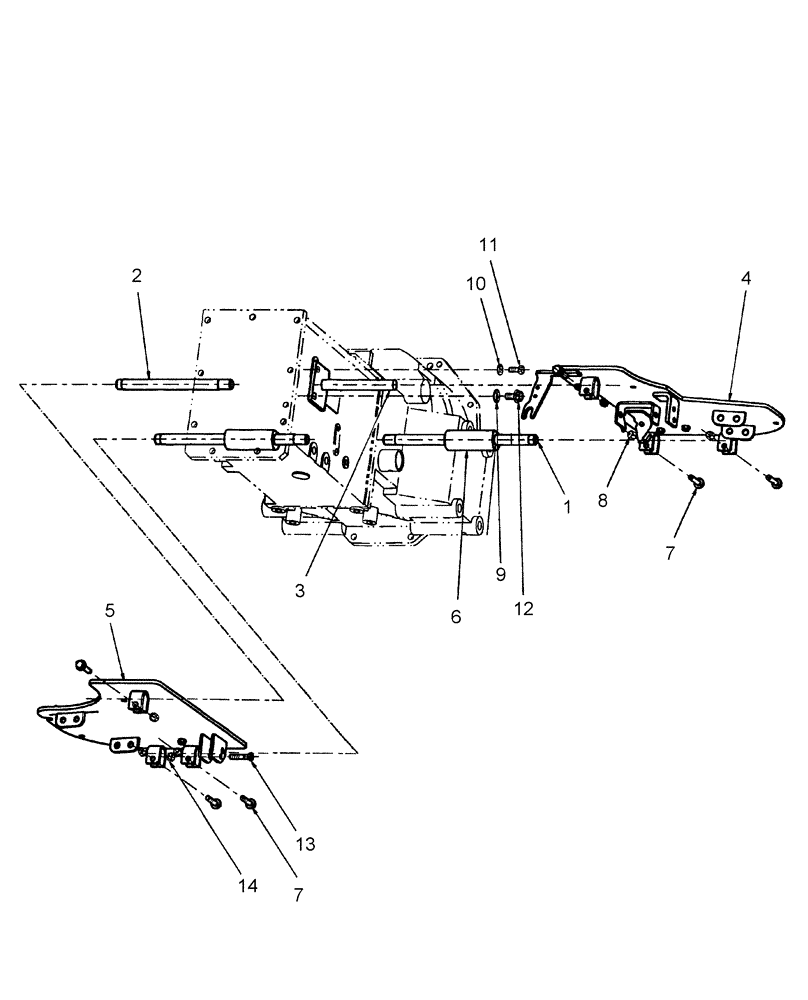

Запчасти Case IH DX29 (07L01) - STEP PLATE (03) - TRANSMISSION

1

86522879

THREADED ROD,M18 x 1.5 x 303 L

ROD, THREADED, , Step Support M18 x 1.5 x 303 L

2шт.

2

86522880

THREADED ROD,M18 x 1.5 x 230 L

ROD, THREADED, , Short Step Support, 9x3 M18 x 1.5 x 230 L

1шт.

2

86522880

THREADED ROD,M18 x 1.5 x 230 L

ROD, THREADED, , Short Step Support, HST M18 x 1.5 x 230 L

2шт.

3

86526951

ROD

Floor, RH, 9x3

1шт.

4

86402596

STEP

Plate, Step, R.H. 9x3

1шт.

4

86403326

STEP

Plate, Step, RH, 9 x 3

1шт.

Used On & ASN HBA0001480

1шт.

4

86402595

STEP

Plate, Step, RH, HST

1шт.

5

86402587

STEP

Plate, Step, LH

1шт.

6

86540884

PLASTIC-RUBBER TUBE,19.05 mm ID x 38.10 mm OD x 95 mm L

Tube, Pedal Stop

2шт.

7

844-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

Flg Hd, CL 8.8, M8 x 1.25 x 40

6шт.

8

832-46408

NUT,M8 x 1.25, Cl 8

NUT, LOCK, M8 x 1.25", Cl 8, HST

7шт.

8

832-46408

NUT,M8 x 1.25, Cl 8

NUT, LOCK, M8 x 1.25", Cl 8, HST

6шт.

Used On & ASN HBA0001480

1шт.

8

832-46408

NUT,M8 x 1.25, Cl 8

NUT, LOCK, M8 x 1.25", Cl 8, 9x3

6шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

WASHER, BELLEVILLE, M10

1шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

WASHER, BELLEVILLE, M8

1шт.

11

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

12

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

Screw, Cap, Flg Hd, CL 8.8, M10 x 1.5 x 20, 9x3

1шт.

13

426-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

- hex, 5/16 NC x 1-1/2 inch, grade 8

1шт.

14

232-4145

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

15

86401063

ANCHOR

Located on Left Hand Side under Step, attached to transmission housing by two bolts.

1шт.

Not Illustrated

1шт.
