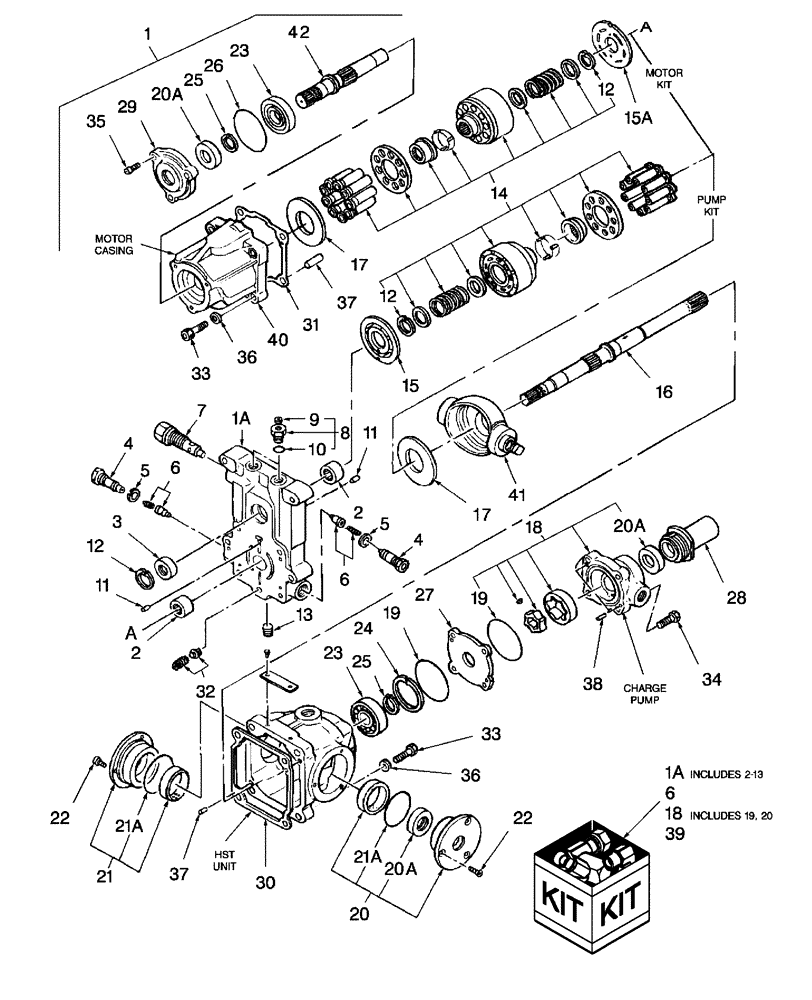

Запчасти Case IH DX29 (07J01) - HST ASSEMBLY (03) - TRANSMISSION

1

SBA322800120

TRANSMISSION, HYDROS

HST Assy. Includes: Ref. 1A thru 39

1шт.

1a

SBA322840826

BLOCK

1шт.

2

SBA322840490

NEEDLE BEARING

BEARING, NEEDLE

2шт.

3

SBA322840150

SEAL

Oil

1шт.

4

SBA322840758

HYDRAULIC VALVE

Valve Assy., Neutral. Includes: Ref. 5

2шт.

5

SBA322840170

SEAL

2шт.

6

SBA322840500

KIT

Check Valve

2шт.

7

SBA322840759

HYDRAULIC VALVE

Valve Assy., Relief

1шт.

(1) - Shims, Not Serviced Separately

1шт.

8

SBA322840110

PLUG

Assy. Includes: Ref. 9 & 10

2шт.

9

SBA322840130

GASKET

2шт.

10

SBA052100140

O-RING

2шт.

11

SBA322840700

PIN

2шт.

12

300642

CIRCLIP,M35 x 1.5mm W, Internal

SNAP RING, M35, Int

3шт.

13

SBA064409006

PLUG,1/8" NPT

1шт.

14

SBA322840715

CYLINDER

Pump/Motor, Rotating Group

2шт.

15

SBA322840713

PLATE

Valve, Pump

1шт.

15a

SBA322840714

PLATE

Valve, Motor

1шт.

16

SBA322840550

SHAFT

Input

1шт.

17

SBA322840560

THRUST PLATE

PLATE, THRUST

2шт.

18

SBA322840580

KIT

Charge Pump. Includes: Ref. 19 & 20

1шт.

19

SBA052400710

O-RING

2шт.

20

SBA322840600

COVER

Assy, Includes: Ref. (1) 20A & (1) 21A

1шт.

20a

SBA322840590

SEAL

Oil

3шт.

21

SBA322840610

COVER

Assy, Includes: Ref. (1) 21A

1шт.

21a

SBA052300650

O-RING,64.4mm ID x 3.1mm Width

G25

2шт.

22

SBA015200614

SCREW

6шт.

23

20996680

BALL BEARING,25mm ID x 62mm OD x 17mm W

Bearing, Ball

2шт.

24

370012

RING,M62, Internal

Snap, Int, M62

1шт.

25

370002

CIRCLIP,M25, External

Ring, Snap, Ext, M25, CS025

2шт.

26

SBA052400700

O-RING

1шт.

27

SBA322840620

PLATE

1шт.

28

SBA322840630

SUPPORT

Holder

1шт.

29

SBA322840640

COVER

1шт.

30

SBA322840670

GASKET

1шт.

31

SBA322840680

GASKET

1шт.

32

SBA322840320

KIT

Valve Assy., Relief

1шт.

33

SBA010701035

BOLT

8шт.

34

86531614

HEX SOC SCREW,M8 x 35mm, Cl 12.9

Screw, Cap, HS, CL 12.9, M8 x 1.25 x 35

4шт.

35

86512135

HEX SOC SCREW,M6 x 1 x 20mm, Cl 12.9

Screw, Cap, HS, CL 10.9, M6 x 1 x 20

3шт.

36

SBA026200010

WASHER

8шт.

37

SBA030500612

DOWEL

Pin

4шт.

38

SBA030500616

DOWEL,M6 x 16

Pin M6 x 16

2шт.

39

SBA322840690

SEAL KIT

Seal, All Seals

1шт.

40

SBA322840650

CASING

Motor

1шт.

41

SBA322840570

PLATE

Trunnion

1шт.

42

SBA322840540

SHAFT

Output

1шт.
