Запчасти Case IH DX29 (09D01) - INJECTION PUMP & LINES (02) - FUEL SYSTEM

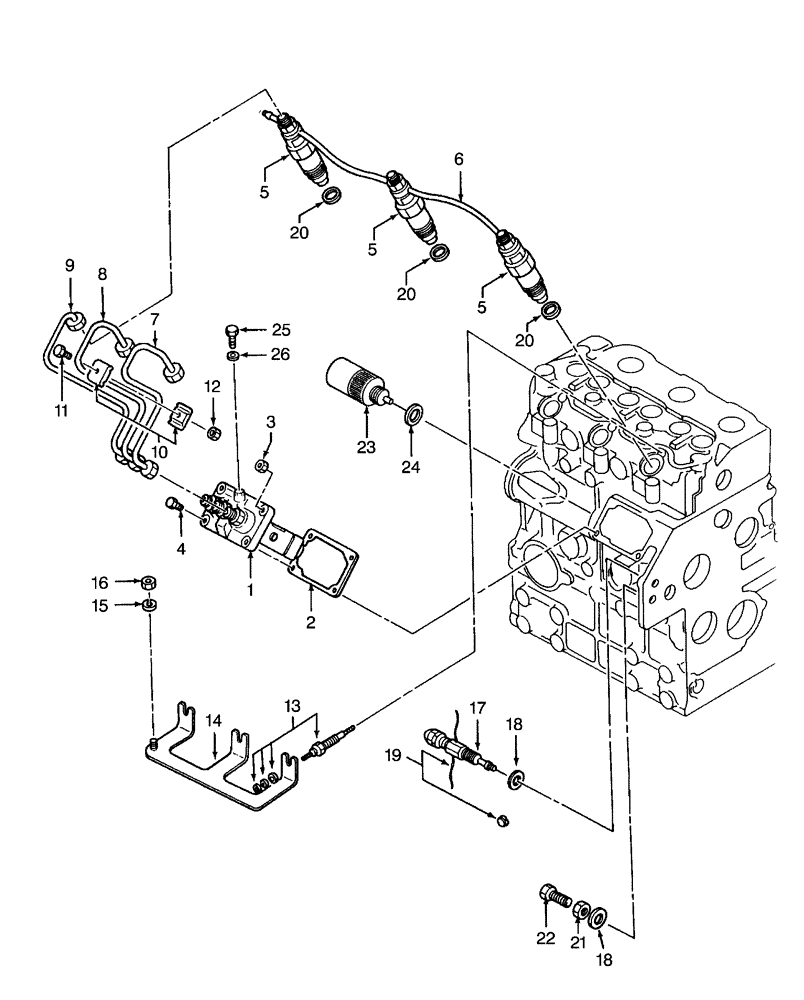

Схема запчастей Case IH DX29 - (09D01) - INJECTION PUMP & LINES (02) - FUEL SYSTEM
20
8
4
7
10
18
1
9
5
16
23
6
21
5
24
17
3
5
20
26
2
12
18
15
22
25
13
19
20
11
14

Артикул

Название

Примечание

Количество

1

SBA131017700

FUEL INJECTION PUMP

Pump Assy.

1шт.

1

SBA131017701R

REMAN-INJECTION PUMP

D25 PIN # HBA0001008 & ABOVE , D29 PIN # HBA0001022 & ABOVE, D33 PIN # HBA0001020 & ABOVE, ALL (2/01-), DX25, DX29 HBA0000516 & ABOVE (11/00-), DX33 HBA000501 TO (8/03-), Reman for New P/N SBA131017700

1шт.

1

SBA131017701C

CORE-INJECTION PUMP

Return Number

1шт.

2

SBA131426310

SHIM KIT

Shim Set, Includes: (1) each of 0.2mm, 0.3mm, 0.4mm & 0.5mm

1шт.

3

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

2шт.

4

SBA010800820

BOLT

2шт.

5

SBA131406440

FUEL SYSTEM INJECTOR

Injector, D25,DX25,D29,DX29

3шт.

5

SBA131406440R

REMAN-FUEL INJECTOR

DX25, DX29 HBA0000516 & ABOVE (11/00-), DX33 HBA000501 TO (8/01-), D25 PIN # HBA0001008 & ABOVE, D29 PIN # HBA0001022 & ABOVE, D33 PIN # HBA0001020 & ABOVE All (2/01-)

3шт.

5

SBA131406440C

CORE-FUEL INJECTOR

Return Number

3шт.

5

SBA131406360

FUEL SYSTEM INJECTOR

Injector, D33,DX33

3шт.

5

87298764

REMAN-FUEL INJECTOR

Injector, D33,DX33

3шт.

5

87298765

CORE-FUEL INJECTOR

Return Number

3шт.

6

SBA131606290

TUBE

Pipe, Return

1шт.

7

SBA131507670

TUBE

Pipe Assy., D25,DX25,D29,DX29

1шт.

7

SBA131507601

TUBE

Pipe Assy., D33,DX33

1шт.

8

SBA131507680

TUBE

Pipe Assy., D25,DX25,D29,DX29

1шт.

8

SBA131507611

TUBE

Pipe Assy., D33,DX33

1шт.

9

SBA131507690

TUBE

Pipe Assy., D25,DX25,D29,DX29

1шт.

9

SBA131507620

RIGID TUBE

Pipe Assy., D33,DX33

1шт.

10

SBA199106020

CLAMP

4шт.

11

300506

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

HH, CL 8.8, M6 x 1 x 25

2шт.

12

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

13

SBA185366190

GLOW PLUG

Plug, Glow, DX25,DX29,DX33

3шт.

13

SBA185366060

GLOW PLUG

Plug, Glow, D25,D29,D33

3шт.

14

SBA185376140

SUPPORT

Glow Plug

1шт.

15

9672401

LOCK WASHER

Washer, Lock, Ext T, M4

1шт.

16

825-1404

NUT,M4, Cl 8

1шт.

17

SBA131046260

SCREW

Smoke Vent Set Assy.

1шт.

18

SBA025100010

SEALING WASHER,9.2mm ID x 17mm OD x 1.8mm Thk

#010

2шт.

19

PL

PROCURE LOCALLY

Wire

1шт.

20

SBA131426200

SEAL

3шт.

21

SBA023109002

NUT

1шт.

22

SBA010109271

BOLT

43 mm

1шт.

23

SBA185206083

SOLENOID

1шт.

24

SBA025100016

WASHER,16.4mm ID x 27mm OD x 2mm Thk

Seal #16

1шт.

25

SBA131136350

BOLT

Screw

1шт.

26

SBA025100008

SEALING WASHER,7.3mm ID x 14mm OD x 1.8mm Thk

Seal, #08

1шт.

Выбрано товаров: 37
