Запчасти Case IH DX29 (06H01) - ENGINE GASKET KIT (01) - ENGINE

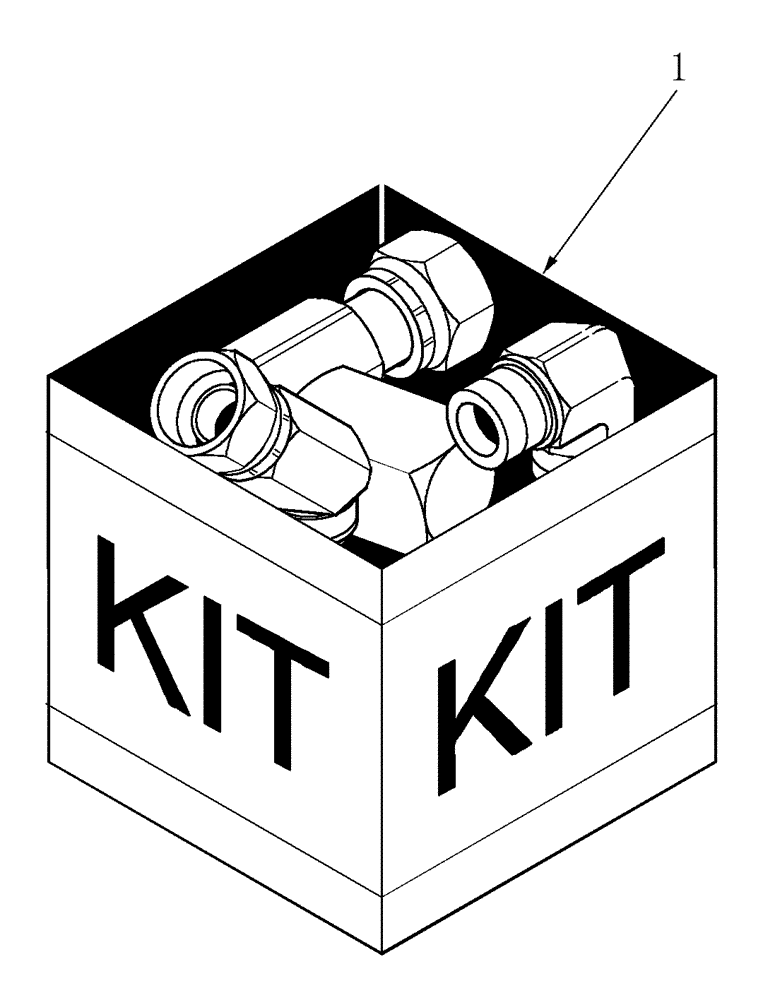

Схема запчастей Case IH DX29 - (06H01) - ENGINE GASKET KIT (01) - ENGINE
1

Артикул

Название

Примечание

Количество

1

SBA195907130

GASKET KIT

Engine Gasket, Includes:

1шт.

SBA025100008

SEALING WASHER,7.3mm ID x 14mm OD x 1.8mm Thk

Seal, Washer, 08

1шт.

SBA025100010

SEALING WASHER,9.2mm ID x 17mm OD x 1.8mm Thk

#010

2шт.

SBA025100012

WASHER,12.4mm ID x 19mm OD x 2mm Thk

Seal M12

1шт.

SBA025100016

WASHER,16.4mm ID x 27mm OD x 2mm Thk

Seal, Washer, 016

1шт.

SBA052100030

O-RING

1шт.

SBA052100050

O-RING

1шт.

SBA052100070

O-RING

1шт.

SBA052100100

O-RING

P10

2шт.

SBA052109076

O-RING,2.4mm Thk x 10.8mm ID

P11

1шт.

SBA052100120

O-RING

P12

1шт.

SBA052109078

O-RING,2.4mm Thk x 9.8mm ID

P15

1шт.

SBA052100400

O-RING,3.5mm Thk x 39.7mm ID, 70 Duro

P40, 39.70 O.D. x 3.5mm

1шт.

SBA052100420

O-RING

1шт.

SBA052109064

O-RING

O-Ring

1шт.

SBA052109065

O-RING

1шт.

SBA052300600

O-RING,G60

1шт.

SBA110996820

GASKET

1шт.

SBA111147490

CYLINDER HEAD GASKET

Gasket, Cylinder Head, 1.3

1шт.

SBA111147500

CYLINDER HEAD GASKET

Gasket, Cylinder Head, 1.4

1шт.

SBA120406050

SEAL

Valve Guide

3шт.

SBA120406070

SEAL

Valve Guide

3шт.

SBA131426310

SHIM KIT

Set, Shims, Includes: (1) each of 0.2mm, 0.3mm, 0.4mm & 0.5mm

1шт.

SBA131426200

SEAL

1шт.

SBA135996860

MANIFOLD GASKET

Gasket, Intake Manifold

1шт.

SBA135996810

GASKET,1.2mm Thk

1шт.

86577740

MANIFOLD GASKET

Exhaust Manifold

1шт.

SBA145996710

GASKET

Thermostat

1шт.

SBA145996051

GASKET

Thermostat

1шт.

SBA145996670

GASKET

1шт.

SBA145996450

GASKET

Water Pump

1шт.

SBA145996680

GASKET

Water Pump

1шт.

SBA165996550

GASKET

1шт.

SBA165996540

GASKET

1шт.

SBA198636160

SEAL,M35 x 55 x 11

Oil

1шт.

SBA198636170

SEAL

Oil

1шт.

SBA140996260

SEAL

7шт.

SBA314990013

GASKET

1шт.

Выбрано товаров: 38
