Запчасти Case IH DX29 (06F01) - OIL PUMP, WATER PUMP, ALTERNATOR (01) - ENGINE

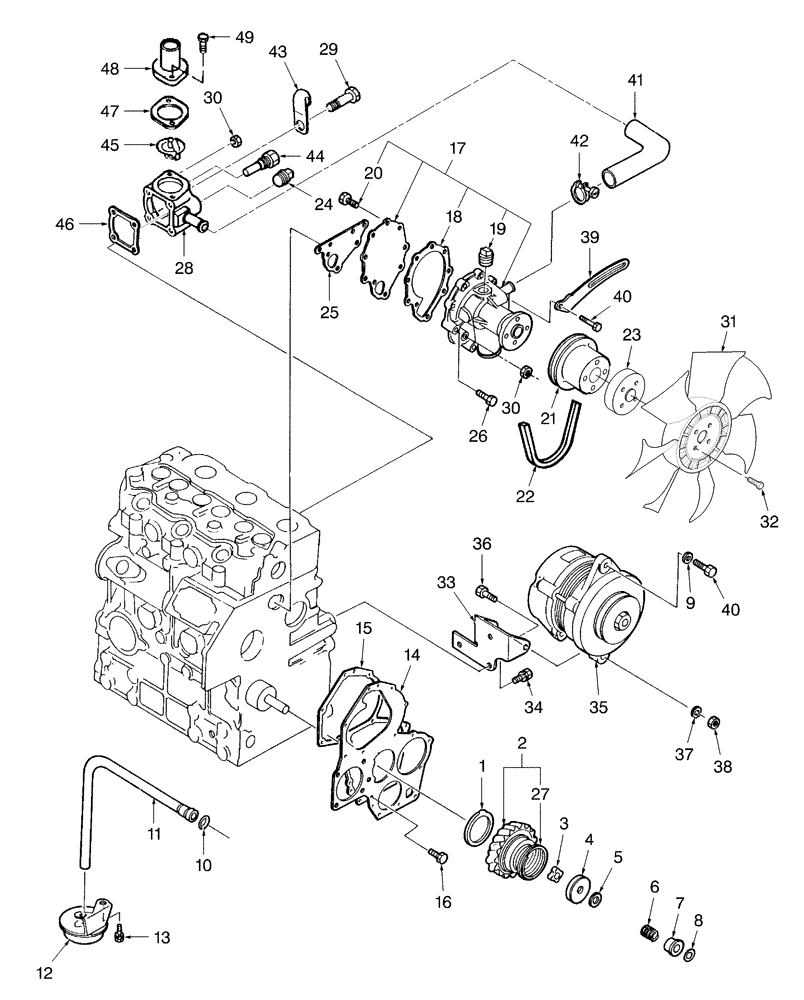

Схема запчастей Case IH DX29 - (06F01) - OIL PUMP, WATER PUMP, ALTERNATOR (01) - ENGINE
12
1
4
45
27
39
30
37
47
35
6
33
44
36
42
46
5
15
22
28
30
20
18
2
24
3
7
49
19
34
38
9
40
41
29
11
25
40
21
43
31
26
12
32
13
48
14
8
10
16
17

Артикул

Название

Примечание

Количество

1

SBA199266180

THRUST WASHER

Washer, Thrust

1шт.

2

SBA165026120

IDLER GEAR

Gear Assy. Includes: Ref. 27

1шт.

No Part Number For Complete Oil Pump Assy

1шт.

Component Of Oil Pump

1шт.

3

SBA140166140

ROTOR

1шт.

4

SBA140116140

COVER

1шт.

5

SBA199286340

SHIM KIT

KIT, SHIM

1шт.

6

SBA198216720

SPRING

1шт.

7

SBA199236540

COLLAR

1шт.

8

SBA036800010

SNAP RING

Ring, Snap

1шт.

9

SBA026109017

WASHER

1шт.

10

SBA052109076

O-RING,2.4mm Thk x 10.8mm ID

1шт.

11

SBA140986530

RIGID TUBE

Pipe, Oil

1шт.

12

SBA140406310

SCREEN

Assy.

1шт.

13

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

SCREW, CAPTIVE WASHER, Hex, M6 x 12, Cl 8.8

2шт.

14

SBA165166510

PLATE

1шт.

15

SBA165996540

GASKET

1шт.

16

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

SCREW, CAPTIVE WASHER, Hex, M6 x 12, Cl 8.8

2шт.

17

SBA145017660

WATER PUMP

Assy., D25,DX25,D29,DX29 Includes: Ref. 17A thru 20

1шт.

17

SBA145017661R

REMAN-WATER PUMP

Assy., D25,DX25,D29,DX29 Includes: Ref. 17A thru 20

1шт.

17

SBA145017661C

CORE-WATER PUMP

Return Part Number

1шт.

17

SBA145017790

WATER PUMP

Assy., D33,DX33 Includes: Ref. 17A thru 20

1шт.

17

SBA145017790R

REMAN-WATER PUMP

Assy., D33,DX33 Includes: Ref. 17A thru 20

1шт.

17

SBA145017790C

CORE-WATER PUMP

Return Part Number

1шт.

17a

SBA198466910

PLUG

Rubber

1шт.

Plug Is Used To Close The Vent Hole

1шт.

Not Illustrated

1шт.

18

SBA145996450

GASKET

D25,DX25,D29,DX29

1шт.

18

SBA145996680

GASKET

D33,DX33

1шт.

19

SBA064500030

PLUG,3/8"

PT 3/8"

1шт.

20

SBA015300614

SCREW

5шт.

21

SBA145336620

PULLEY

1шт.

22

86517954

V-BELT,0.50" W x 37.54" L

1шт.

23

SBA145386540

HOLDER

Fan

1шт.

24

SBA064500030

PLUG,3/8"

PT 3/8"

1шт.

25

SBA145996670

GASKET

1шт.

26

SBA011310635

CAPTIVE WASHER SCREW,Hex, M6 x 35, Cl 8.8

SCREW, CAPTIVE WASHER, Hex, M6 x 35, Cl 8.8

6шт.

27

SBA198216821

SPRING

1шт.

28

SBA145216500

CASE

Thermostat

1шт.

29

SBA011310645

CAPTIVE WASHER SCREW,Hex, M6 x 45, Cl 8.8

SCREW, CAPTIVE WASHER, Hex, M6 x 45, Cl 8.8

2шт.

30

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.

31

SBA145306520

FAN

1шт.

32

SBA011310645

CAPTIVE WASHER SCREW,Hex, M6 x 45, Cl 8.8

SCREW, CAPTIVE WASHER, Hex, M6 x 45, Cl 8.8

4шт.

33

SBA185976510

BRACKET

Stay

1шт.

34

SBA011510816

BOLT

M8 x 16

3шт.

35

SBA185046320

ALTERNATOR

1шт.

35

SBA185046320R

REMAN-ALTERNATOR

D25, DX25, D29, DX29, D33, DX33

1шт.

35

SBA185046320C

CORE-ALTERNATOR

Return Part Number

1шт.

35

SBA185046320GV

ALTERNATOR

Value

1шт.

36

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

37

892-11010

LOCK WASHER,M10

2шт.

38

825-1410

NUT,M10, Cl 8

2шт.

39

SBA185727000

PLATE

1шт.

40

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

SCREW, CAPTIVE WASHER, Hex, M8 x 20, G5

1шт.

41

SBA145536050

HOSE

1шт.

42

SBA067100022

HOSE CLAMP

Band, Hose

2шт.

43

SBA199116370

CLAMP

1шт.

44

SBA385720101

SENSOR

Switch, Temperature, OAL=1.733" D25,D29,D33

1шт.

44

SBA385720030

THERMOSTATIC SWITCH

Sender, Temperature, OAL 2.606" DX25,DX29,DX33

1шт.

45

SBA145206182

THERMOSTAT,82 Degrees C (180 Degrees F)

82 C

1шт.

46

SBA145996710

GASKET

1шт.

47

SBA145996051

GASKET

1шт.

48

SBA145226450

COVER

1шт.

49

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

SCREW, CAPTIVE WASHER, Hex, M8 x 20, G5

2шт.

Выбрано товаров: 64
