Запчасти Case IH DX29 (12B01) - DASHBOARD AND REAR HOOD (12) - INSTRUMENT PANEL

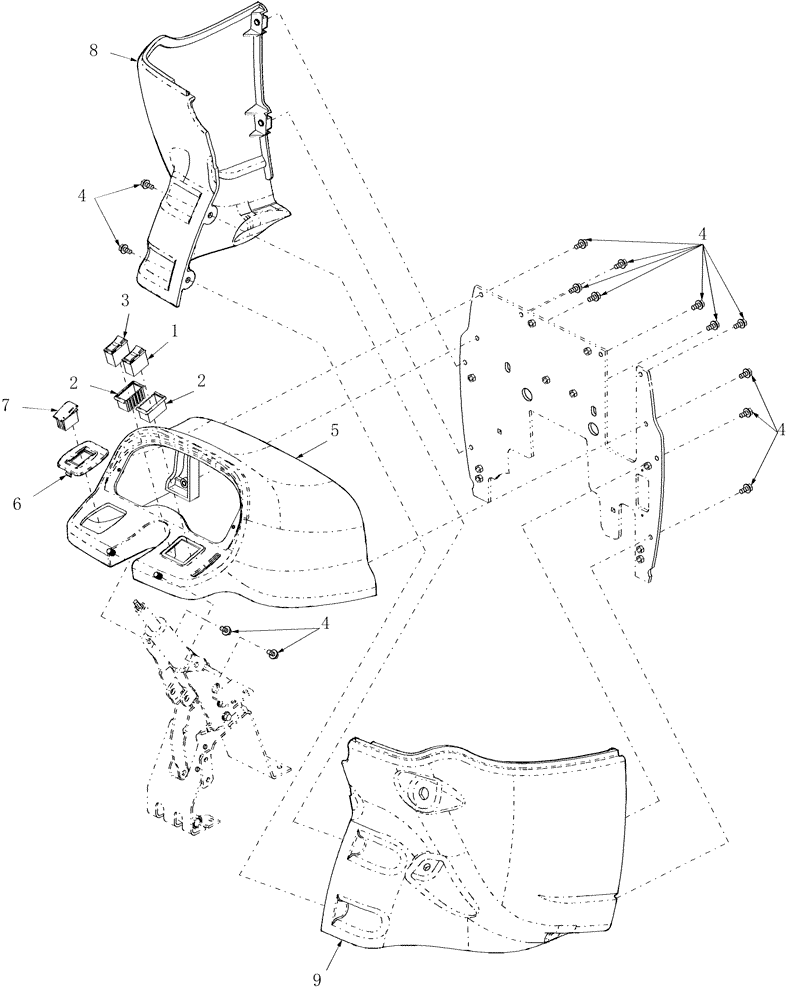

Схема запчастей Case IH DX29 - (12B01) - DASHBOARD AND REAR HOOD (12) - INSTRUMENT PANEL
4
4
6
9
7
3
8
1
5
2
4
4
2

Артикул

Название

Примечание

Количество

1

86545720

LIGHT SWITCH

Switch, Main Light, D25,D29,D33

1шт.

1

86545718

FLASHER SWITCH

Switch, Hazard Warning, DX25,DX29,DX33

1шт.

2

E7NN11N653AA

SUPPORT

Switch Holder

2шт.

3

86545720

LIGHT SWITCH

Switch, Main Light, DX25,DX29,DX33

1шт.

4

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

Hex Flg Hd, CL 8.8, M8 x 1.25 x 16

8шт.

5

86401989

HOOD

Rear

1шт.

5

86405232

HOOD

Rear

1шт.

Supersedes 86401989

1шт.

6

86526899

PANEL

HST Switch

1шт.

7

TR93D0527

SWITCH

HST Cruise Control, DX25,DX29,DX33

1шт.

8

86401674

PANEL

Hood, Rear LH, 9 x 3, HST, Red DX25,DX29,DX33

1шт.

8

86401783

PANEL

Hood, Rear, LH, 9 x 3, D25,D29,D33

1шт.

9

86402851

PANEL

Hood, Rear, RH

1шт.

Выбрано товаров: 13
