Запчасти Case IH DX29 (12A01) - INSTRUMENT PANEL (12) - INSTRUMENT PANEL

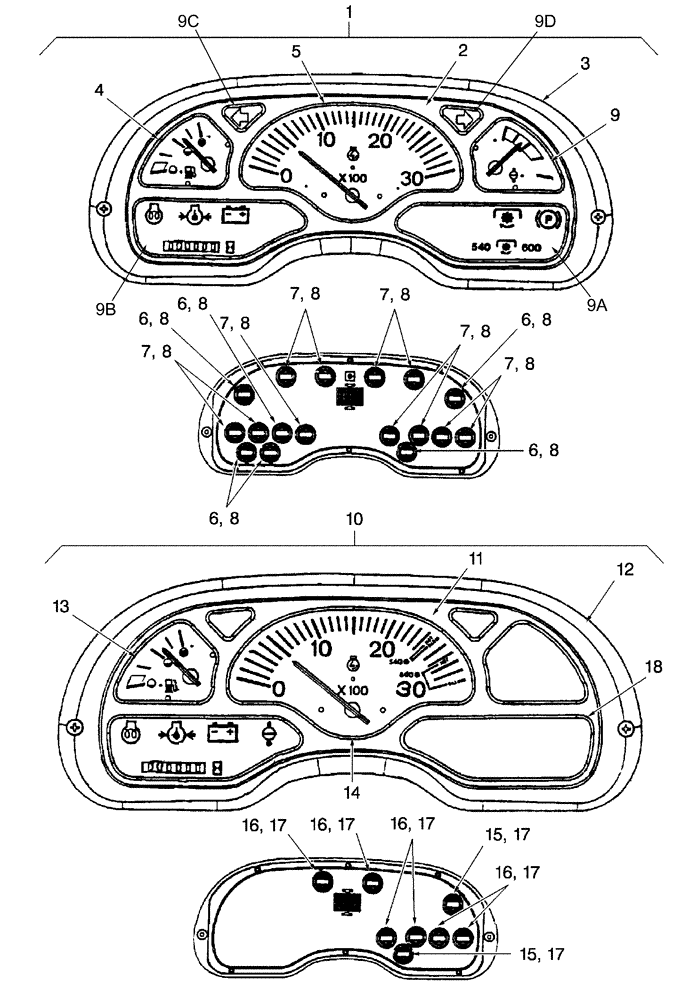

Схема запчастей Case IH DX29 - (12A01) - INSTRUMENT PANEL (12) - INSTRUMENT PANEL
17
7
7
6
6
8
7
16
17
2
6
1
17
17
8
8
9c
9
8
7
7
18
6
5
16
8
8
8
8
11
7
16
12
8
9a
3
14
8
15
17
9b
13
9d
6
4
16
15
10
17
8

Артикул

Название

Примечание

Количество

1

86540851

INSTRUMENT PANEL

Panel, Instrument, DX25,DX29,DX33 ( 9844205 Screw Can Be Used To Replace Original Screw) Includes: Ref. 2 thru 9A

1шт.

86540851R

REMAN-INSTR CLUSTER

DX25, DX33 HBA000501 TO BOTH (8/01-), DX29 HBA0000516 & ABOVE (11/00-)

1шт.

86540851C

CORE-CLUSTER, INSTR

Return Number

1шт.

2

86530843

BEZEL

Lens

1шт.

3

86530845

SEAL

Lens

1шт.

4

86540853

GAUGE

Fuel

1шт.

5

86540854

TACHOMETER

1шт.

6

V62204

BULB

#161

8шт.

7

276433

BULB,12V

#658

8шт.

7a

PL

PROCURE LOCALLY

Bulb, #194

1шт.

8

86540856

SEAL

Socket/Seal Assy. (1) Used With Each Bulb

17шт.

9

86540855

GAUGE

Temperature

1шт.

9a

87673677

MASK

RH IP Warning Lights

1шт.

9b

87673678

MASK

LH IP Warning Lights

1шт.

9c

87673679

MASK

LH IP Turning Lights

1шт.

9d

87673680

MASK

RH IP Turning Lights

1шт.

10

86401194

INSTRUMENT PANEL

Panel, Instrument, D25,D29,D33 (Screw 9844205 Can Be Used To Replace Original Screw) Includes: Ref. 11 thru 18

1шт.

11

86530843

BEZEL

Lens

1шт.

12

86530845

SEAL

Lens

1шт.

13

86540853

GAUGE

Fuel

1шт.

14

86401195

TACHOMETER

1шт.

15

V62204

BULB

#161

4шт.

16

276433

BULB,12V

#194

4шт.

17

86540856

SEAL

Socket/Seal Assy. (1) Used With Each Bulb

8шт.

18

86576557

MASK

Indicator Lamps

1шт.
