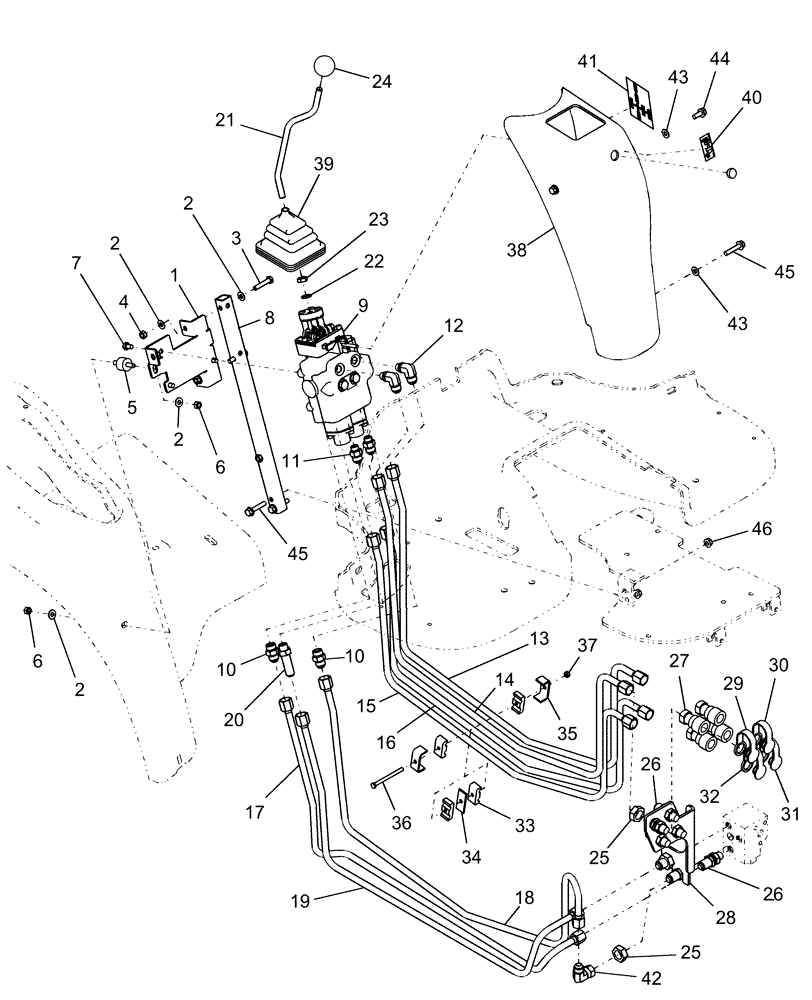

Запчасти Case IH DX29 (07.11) - 2-SPOOL REMOTE CONTROL VALVE & PIPING KIT - 710440076 (07) - HYDRAULIC SYSTEM

1

86404684

SUPPORT

Bracket, Valve

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

3

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

2шт.

4

9706690

NUT,M8 x 1.25, Cl 8

2шт.

5

86522829

SILENTBLOC

1шт.

6

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

3шт.

8

86405625

SUPPORT

1шт.

9

86403581

HYDRAULIC VALVE

2- Spool Kit

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

-8, Male, 3/4"-16, 37° Flare x 3/4"-16, O-Ring

2шт.

11

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

2шт.

12

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

2шт.

13

87300401

HYD TUBE

Port A2

1шт.

14

87300402

HYD TUBE

Port A1

1шт.

15

87300403

HYD TUBE

Port B1

1шт.

16

87300404

HYD TUBE

Port B2

1шт.

17

87300406

HYD TUBE

Tank

1шт.

18

87300407

HYD TUBE

Pressure

1шт.

19

87300602

HYD TUBE

Power Beyond

1шт.

20

9601710

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, Pipe

1шт.

21

86404419

HANDLE

Loader Valve

1шт.

22

81547

LOCK WASHER,7/16"

1шт.

23

87891

BHD LOCK NUT,Jam, 7/16"-20, G2

1шт.

24

511632

KNOB

1шт.

25

87313

JAM NUT,Jam, 3/4"-16, G2

6шт.

26

86532865

ADAPTER

Male Bulkhead, Uses 87313 Jam Nut

7шт.

27

9846343

COUPLING,3/8" NPTF

Hyd, O-Ring used is 238-5017 & Back-Up Ring used is 647327

4шт.

28

87300400

BRACKET

Valve Support

1шт.

29

86597755

PLUG,29mm OD x 246mm L

Dust, Blue

1шт.

30

86597758

PLUG,29mm OD x 246mm L

Dust, Yellow

1шт.

31

86597757

PLUG,29mm OD x 246mm L

Dust, Green

1шт.

32

86597754

PLUG,29mm OD x 246mm L

Dust, Red

1шт.

33

430357

CLAMP

4шт.

34

434097

SUPPORT

1шт.

35

431941

SUPPORT

2шт.

36

86508570

BOLT,Hex, M6 x 80mm OAL, Cl 8.8

1шт.

37

9706755

NUT,M6, Cl 8

1шт.

38

86404705

PROTECTION CAP

Loader Control

1шт.

39

86530982

BOOT

Loader Joystick

1шт.

40

86401119

DECAL

Valve Lock

1шт.

41

86401095

DECAL

Loader Valve

1шт.

42

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

-8

1шт.

43

86549853

WASHER,8.4mm ID x 28mm OD x 3mm Thk

3шт.

44

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

45

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

3шт.

46

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.
