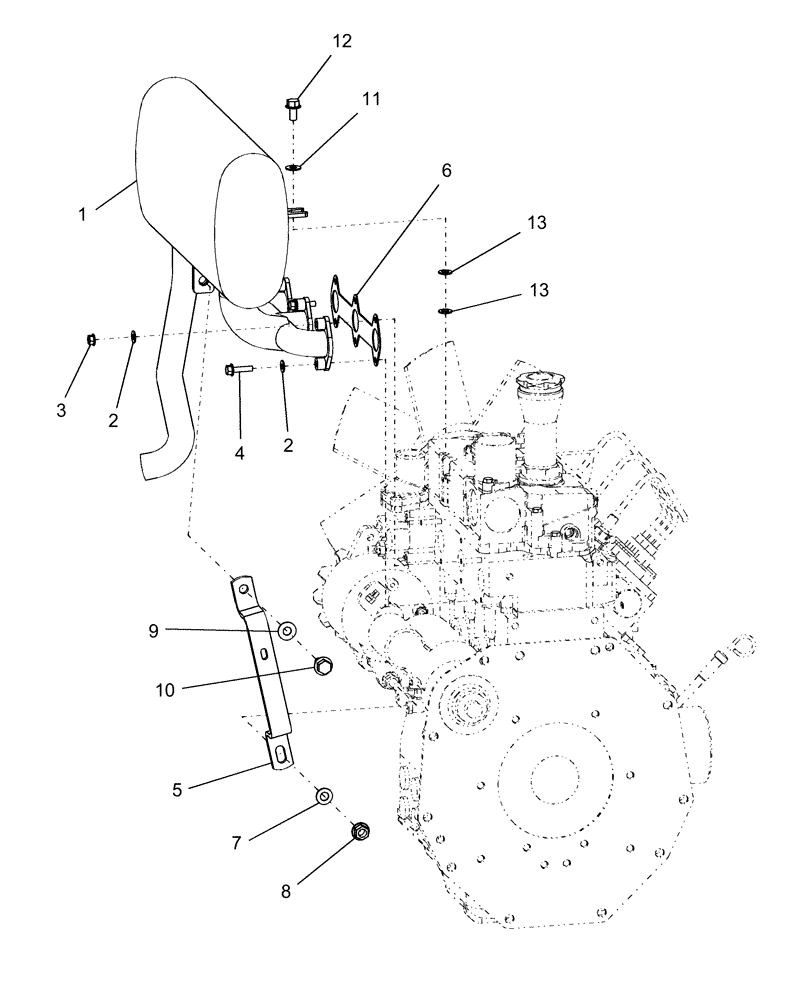

Запчасти Case IH DX29 (02.05) - MUFFLER (02) - ENGINE EQUIPMENT

1

87300890

MUFFLER

1шт.

2

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

3

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

4

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

DX33

4шт.

5

86524911

BRACKET

Muffler, J Engine, DX29

1шт.

5

86526931

BRACKET

Muffler, N Engine, DX33

1шт.

6

86577740

MANIFOLD GASKET

Manifold

1шт.

7

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

8

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

10

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

12

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

13

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

D x 29

2шт.
