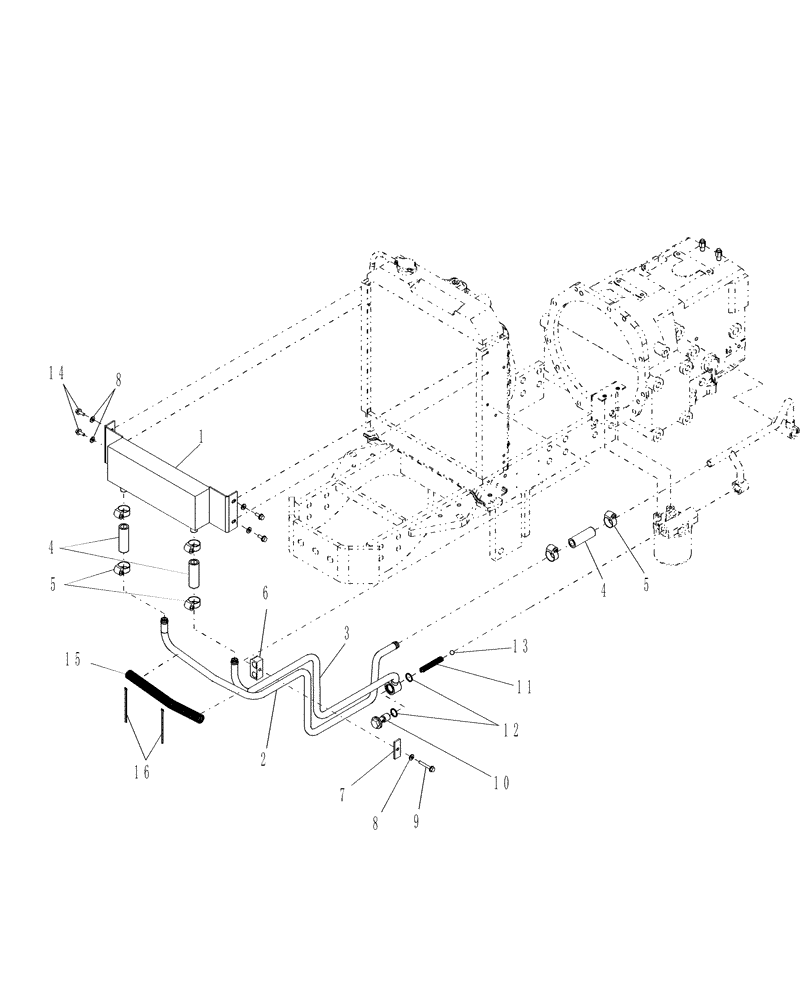

Запчасти Case IH DX29 (02.03.01) - OIL COOLER, HST - ON & ASN HBA011876 (02) - ENGINE EQUIPMENT

1

86522859

OIL COOLER

HST

1шт.

2

87304506

TUBE,13.42 mm ID x 15.90 mm OD

HST Cooler, IN

1шт.

3

87304509

TUBE

HST Cooler, OUT

1шт.

4

87345854

FLEXIBLE HOSE,15.9mm ID x 69mm L

1шт.

5

86505159

HOSE CLAMP

6шт.

6

781221

CLAMP

Used for Cooling Lines to HST Filter

1шт.

7

86509354

PLATE,9/32" ID x 3/4" W x 2" L

1шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

5шт.

9

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

1шт.

10

SBA398480240

BANJO BOLT,3/8"

1шт.

11

86532703

SPRING

1шт.

12

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

2шт.

13

210006

BALL

1шт.

14

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

4шт.

15

87333678

CONDUIT

1шт.

16

168955

SECURING STRAP

2шт.
