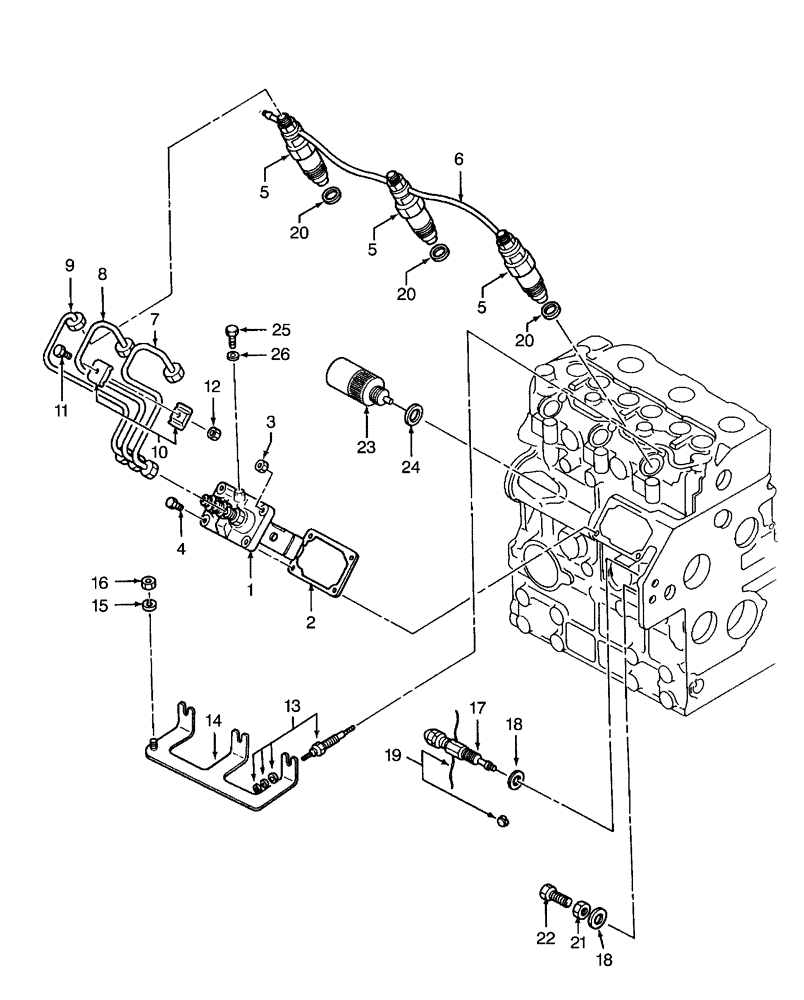

Запчасти Case IH DX29 (01.11) - INJECTION PUMP & LINES (01) - ENGINE

1

SBA131017700

FUEL INJECTION PUMP

Refer to Fig. 09E01 For Breakdown, Components Not Serviced Separately

1шт.

1

SBA131017701R

REMAN-INJECTION PUMP

DX29 S/N HBA010001 & ABOVE, DX33 S/N HBA010003 & ABOVE, ALL (8/03-), Reman for New P/N SBA131017700

1шт.

1

SBA131017701C

CORE-INJECTION PUMP

Return Number

1шт.

2

SBA131426310

SHIM KIT

Shims, Includes: (1) each of 0.2mm, 0.3mm, 0.4mm & 0.5mm

1шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

4

SBA010800820

BOLT

2шт.

5

SBA131406360

FUEL SYSTEM INJECTOR

3шт.

5

87298764

REMAN-FUEL INJECTOR

3шт.

5

87298765

CORE-FUEL INJECTOR

Return Number

3шт.

6

SBA131606290

TUBE

Return

1шт.

7

SBA131507670

TUBE

DX29

1шт.

7

SBA131507601

TUBE

DX33

1шт.

8

SBA131507680

TUBE

DX29

1шт.

8

SBA131507611

TUBE

DX33

1шт.

9

SBA131507690

TUBE

DX29

1шт.

9

SBA131507620

RIGID TUBE

DX33

1шт.

10

SBA199106020

CLAMP

4шт.

11

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

12

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

13

SBA185366190

GLOW PLUG

3шт.

14

SBA185376140

SUPPORT

1шт.

15

9672401

LOCK WASHER

Ext T, M4

1шт.

16

100012

NUT,M4 x 0.7, Cl 8

1шт.

17

SBA131046260

SCREW

1шт.

18

SBA025100010

SEALING WASHER,9.2mm ID x 17mm OD x 1.8mm Thk

#010

2шт.

19

PL

PROCURE LOCALLY

WIRE

1шт.

20

SBA131426200

SEAL

3шт.

21

SBA023109002

NUT

1шт.

22

SBA010109271

BOLT

43 mm

1шт.

23

SBA185206083

SOLENOID

Fuel Shutoff

1шт.

Not Included in Long Block

1шт.

24

SBA025100016

WASHER,16.4mm ID x 27mm OD x 2mm Thk

Seal #16

1шт.

25

SBA131136350

BOLT

1шт.

26

SBA025100008

SEALING WASHER,7.3mm ID x 14mm OD x 1.8mm Thk

Seal, #08

1шт.
