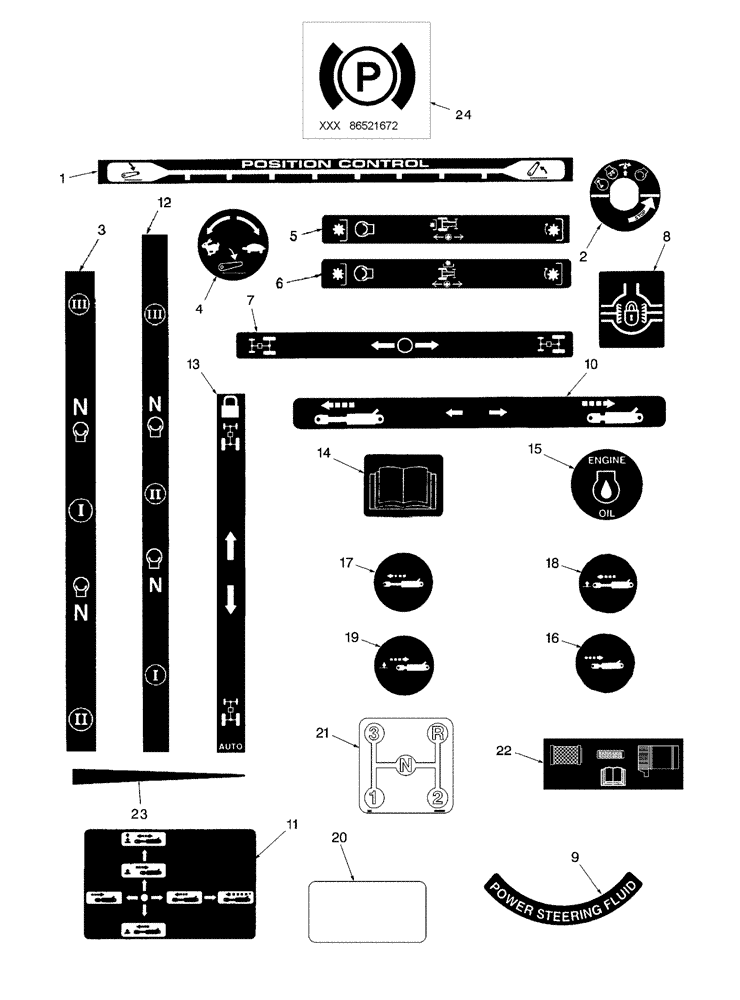

Запчасти Case IH DX29 (08.06) - DECALS, OPERATING (08) - SHEET METAL

1

86571897

DECAL

HPL Position Control

1шт.

2

86532895

DECAL

Ignition

1шт.

3

86532896

DECAL

HST Range

1шт.

Not Illustrated

1шт.

3

87301627

DECAL

HST Range

1шт.

4

86532897

DECAL

HPL Rate

1шт.

5

86532898

DECAL

Rear PTO

1шт.

Not Illustrated

1шт.

5

87301628

DECAL

Rear PTO

1шт.

6

86532899

DECAL

Mid PTO

1шт.

Not Illustrated

1шт.

6

87301629

DECAL

Mid PTO

1шт.

7

86532900

DECAL

FWD Std

1шт.

8

86532901

DECAL

Differential Lock

1шт.

9

86532903

DECAL

Power Steering Fluid

1шт.

10

86532910

DECAL

Remote #1 & #2

1шт.

11

86401095

DECAL

Loader Valve

1шт.

12

86532912

DECAL

9 x 3 Range

1шт.

Not Illustrated

1шт.

12

87301630

DECAL

9 x 3 Range

1шт.

13

NS

NOT SERVICED

Decal is used on NH tractor only

1шт.

14

86532914

DECAL

Operator Manual

2шт.

15

86532916

DECAL

Engine Oil

1шт.

16

86532919

DECAL

Coupler Retract Cylinder

1шт.

17

86532920

DECAL

Coupler Extend Cylinder

1шт.

18

86532921

DECAL

Coupler Ext. Bucket

1шт.

19

86532922

DECAL

Coupler Retract Bucket

1шт.

20

86400366

DECAL

Red Reflector Tape

1шт.

21

86532894

DECAL

Decal, Economy Shift

1шт.

22

86401636

DECAL

Air Cleaner

1шт.

23

F0NN9N848BA

DECAL

Throttle

1шт.

24

86521672

DECAL

Parking Brake

1шт.
