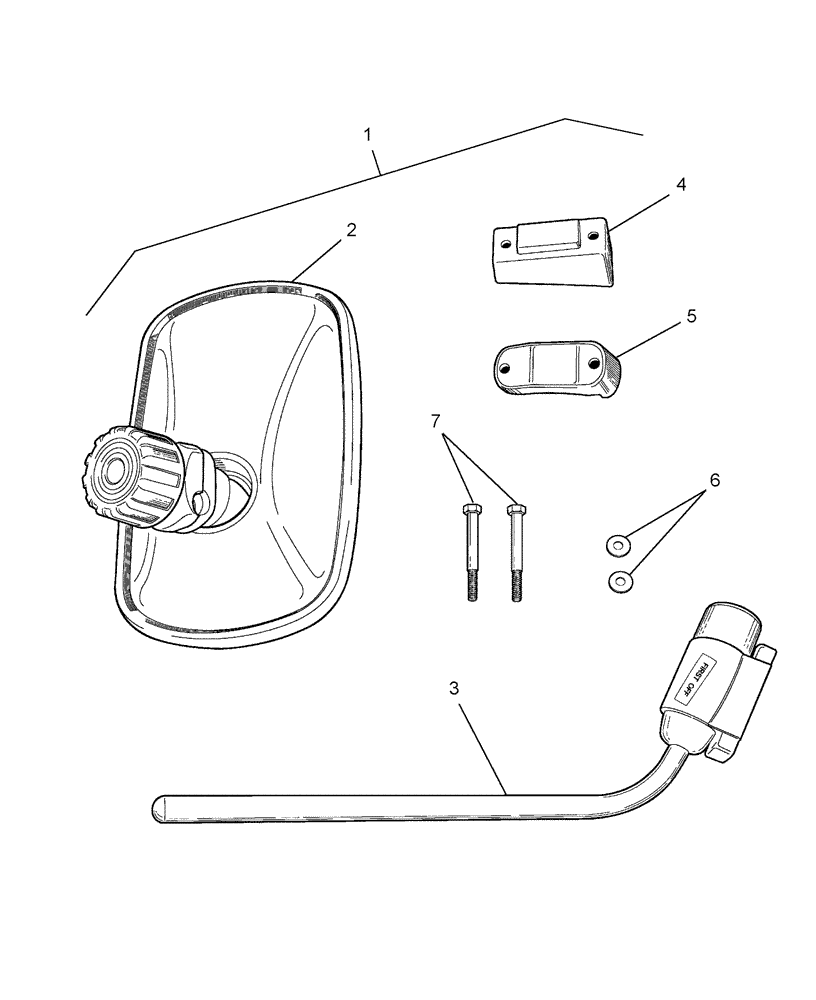

Запчасти Case IH DX29 (08.02.03) - LH REAR VIEW MIRROR KIT - 718877016 (08) - SHEET METAL

1

718877016

DIA KIT, ADD PROD

LH Rear View Mirror Includes: Ref. 2-7

1шт.

Order Thru Wholegoods

1шт.

2

86535731

LH MIRROR,160mm x 263mm

1шт.

3

86535732

ARM

1шт.

4

86535728

BRACKET

Bracket, Mirror Mount, Outer

1шт.

5

86535727

BRACKET

Bracket, Mirror Mount, Inner

1шт.

6

86500654

BOLT,Hvy Hex, M6 x 55mm, Cl 8.8

2шт.

7

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.
