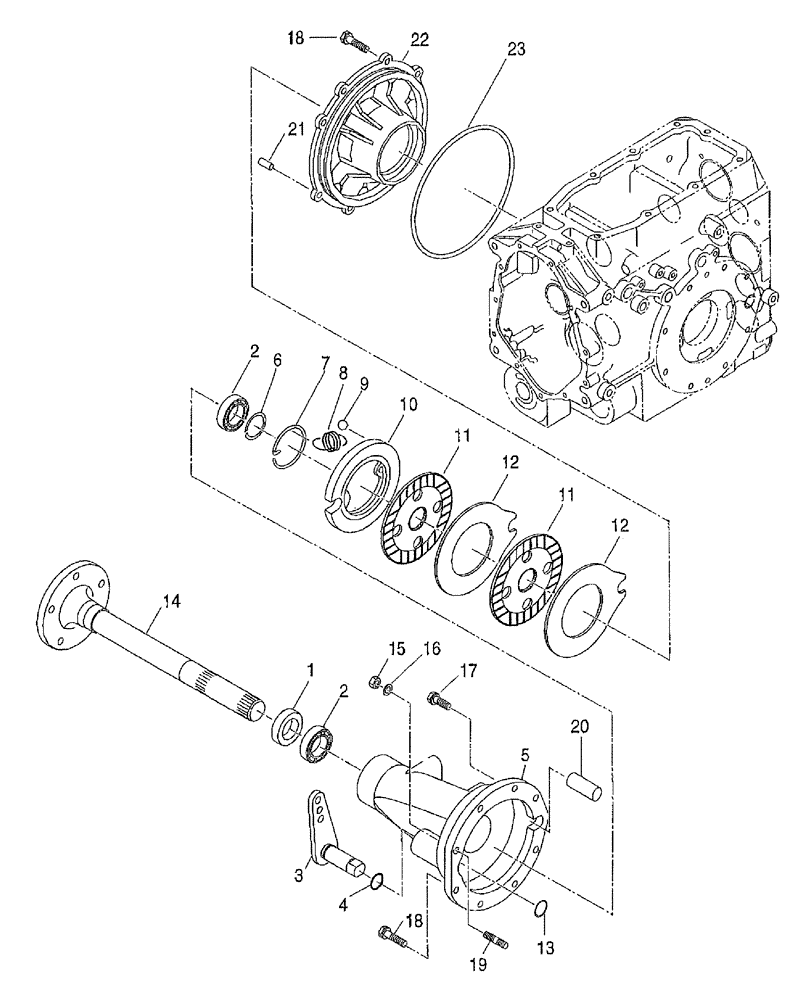

Запчасти Case IH DX25E (05.02) - BRAKE & WHEEL SHAFT CASE, RH (05) - REAR AXLE

1

SBA050609045

SEAL

Oil

2шт.

2

SBA040106007

BEARING ASSY

4шт.

3

SBA328300610

BRACKET

Brake Cam

1шт.

4

SBA052100210

O-RING

1шт.

5

SBA326345400

CASE

Wheel Shaft

1шт.

6

SBA036100035

SNAP RING

2шт.

7

SBA398340610

CLIP

1шт.

8

SBA398215650

SPRING

2шт.

9

SBA048109041

BALL

Steel

4шт.

10

SBA328560440

BRAKE DISC

1шт.

11

SBA328110250

BRAKE DISC

Lining

2шт.

12

SBA328560450

BRAKE DISC

2шт.

13

370002

CIRCLIP,M25, External

1шт.

14

SBA326312530

WHEEL SHAFT

1шт.

15

SBA021010010

NUT,M10 x 1.25

4шт.

16

892-1110

LOCK WASHER,M10

4шт.

17

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

8шт.

18

SBA011511040

BOLT,M10 x 40

4шт.

19

SBA012111040

SCREW

Stud

2шт.

20

SBA328260180

ANCHOR

Pin

2шт.

21

SBA030500825

PIN

Dowel, M8 x 25

2шт.

22

SBA326220460

BEARING CARRIER

1шт.

23

SBA052302100

O-RING

1шт.
