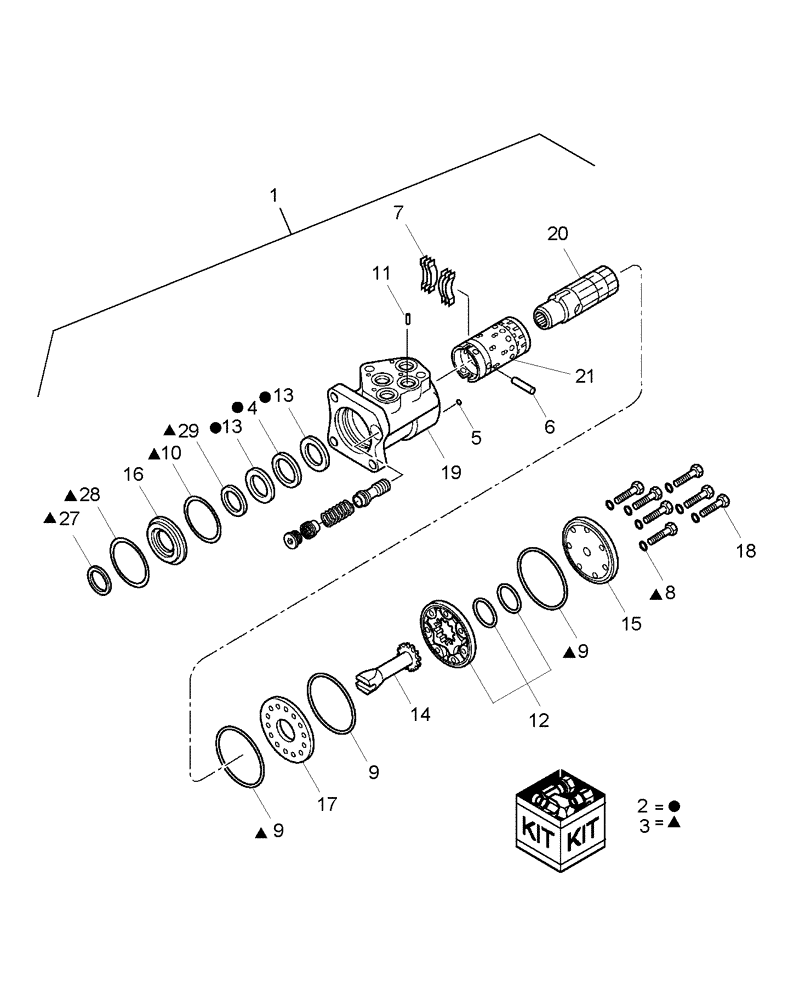

Запчасти Case IH DX25E (04.06) - POWER STEERING CONTROL VALVE (04) - FRONT AXLE & STEERING

1

SBA334011262

STEERING BOX

Power Includes: Ref. 4 thru 29

1шт.

2

SBA334293203

REPAIR KIT

Bearing Kit Includes: Ref. 4 & 13

1шт.

3

SBA334293204

REPAIR KIT

Seal Kit Includes: Ref. 8,9,10,27,28 & 29

1шт.

4

NSS

NOT SOLD SEPARAT

Thrust Bearing

1шт.

5

NSS

NOT SOLD SEPARAT

Ball

1шт.

6

NSS

NOT SOLD SEPARAT

Pin

1шт.

7

NSS

NOT SOLD SEPARAT

Centering Springs

1шт.

8

NSS

NOT SOLD SEPARAT

Washer

7шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Spring Pin

1шт.

12

NSS

NOT SOLD SEPARAT

Gerotor Assembly

1шт.

13

NSS

NOT SOLD SEPARAT

Bearing, Race

2шт.

14

NSS

NOT SOLD SEPARAT

Drive Shaft

1шт.

15

NSS

NOT SOLD SEPARAT

End Cap

1шт.

16

NSS

NOT SOLD SEPARAT

Gland Bushing

1шт.

17

NSS

NOT SOLD SEPARAT

Plate

1шт.

18

NSS

NOT SOLD SEPARAT

Cap Screw

7шт.

19

NSS

NOT SOLD SEPARAT

Valve Housing

1шт.

20

NSS

NOT SOLD SEPARAT

Race Bearing

1шт.

21

NSS

NOT SOLD SEPARAT

Drive Shaft

1шт.

23

NSS

NOT SOLD SEPARAT

Cap

1шт.

24

NSS

NOT SOLD SEPARAT

Spring Guide

1шт.

25

NSS

NOT SOLD SEPARAT

Spring

1шт.

26

NSS

NOT SOLD SEPARAT

Relief Valve

1шт.

27

NSS

NOT SOLD SEPARAT

Dust Seal

1шт.

28

NSS

NOT SOLD SEPARAT

Retaining Ring

1шт.

29

NSS

NOT SOLD SEPARAT

Quad Ring

1шт.
