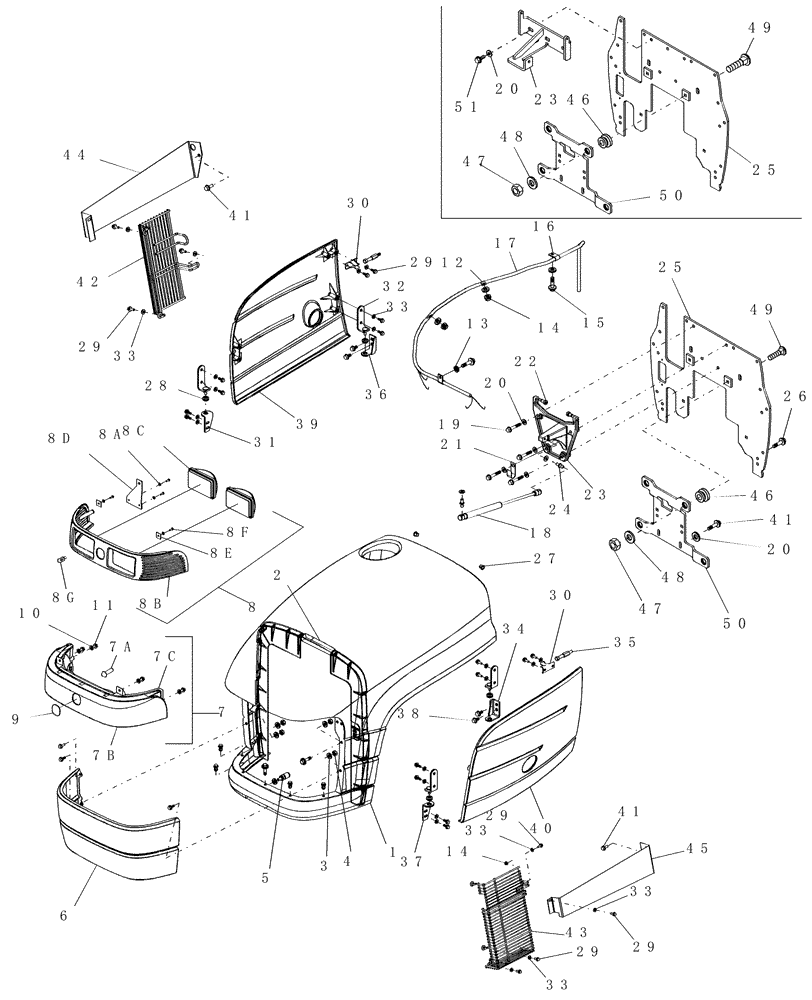

Запчасти Case IH DX25 (14B01) - HOOD AND RELATED PARTS (08) - SHEET METAL
№
Артикул
Название
Примечание
Количество
1
86401639
HOOD ASSY.
Hood, Front
1шт.
2
86535717
SEAL
Hood Center
1шт.
3
832-46406
NUT,M6 x 1, Cl 8
Nut, Lock, M6 x 1, Cl 8
8шт.
4
9824259
WASHER,6.4mm ID x 12mm OD x 1.6mm Thk
M6 x 12 x 1.6
8шт.
5
86522865
LATCH
Striker, M8, Refer to Fig. 11B1, Ref. 4 for Hood Latch 86519820
1шт.
6
86401810
GRILLE ASSY
Grille
1шт.
6a
86401813
EMBLEM CASE/IH
Logo (CASE #2209080A1)
1шт.
Not Illustrated
1шт.
6b
86401814
NUT
Clip (CASE #131-431)
1шт.
Not Illustrated
1шт.
7
86522921
HEADLAMP
Headlight Assy., DX25, DX29, DX33 Includes: 7A thru 7C.
1шт.
7a
9847313
BULB,#894, 12V, 37.5W
Headlight #894, 12V, 37.5W
4шт.
7b
NSS
NOT SOLD SEPARAT
Lens
1шт.
7c
NSS
NOT SOLD SEPARAT
Reflector Assy.
1шт.
8
86530776
HEADLAMP
Headlight Assy., D25, D29, D33 Includes: 8A thru 8G.
1шт.
8a
280734
LOCK WASHER,Int Tooth, #8
Washer, Lock, Int T, #8
4шт.
8b
86530777
BEZEL
1шт.
8c
86530780
LAMP
Assy.
2шт.
8d
86530781
BRACKET
1шт.
8e
86530782
BRACKET
2шт.
8f
86530859
SELF-TAP SCREW
Screw, Self-Tapping, Pan Hd, #8 x 1/2"
4шт.
8g
9847313
BULB,#894, 12V, 37.5W
Halogen #894, 12V, 37.5W
4шт.
9
86401646
DECAL
Black Headlight, D25, D29, D33
1шт.
9
86401812
DECAL
Chrome Headlight, DX25, DX29, DX33
1шт.
10
322357
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
WASHER, BELLEVILLE, M6
7шт.
11
844-6016
BOLT,Hvy Hex, M6 x 16mm, Cl 8.8
14шт.
12
272535
CLAMP,1/8", Insul, 1/4" Bolt
2шт.
14
825-2406
FLANGE NUT,M6 x 1, Cl 8.8
3шт.
15
86050272
BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd
Flg Hd, CL 8.8, M6 x 1 x 12
1шт.
16
237980
WIRE CLAMP,11.11mm, Coat, 7.14mm Bolt Hole, P Type
7/16" x 1/4" Bolt
2шт.
17
86528624
WIRE HARNESS
Harness Hood
1шт.
18
86519801
GAS STRUT
Gas
1шт.
Clips NSS from Shock Procure Locally
1шт.
22
86519972
BOLT
HS, Shoulder Neck, 5/16"-18 x 1-1/16"
2шт.
23
86519979
HINGE
Hood, Hinge
1шт.
24
E4NN94201N19BA
BALL STUD
2шт.
25
86543840
PARTITION
Firewall
1шт.
26
811-8020
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
BOLT, CARRIAGE, Short NK, M8 x 20, Cl8.8, Full Thd
1шт.
27
86519971
DRIVE BUSHING
Bushing
2шт.
28
244105
GROMMET
DX25,DX29,DX33, Years: -28-FEB-01
2шт.
28
86400610
STUD
Rubber DX25,DX29,DX33, Start Year: 01-MAR-01
2шт.
Used On & ASN HBA0001046
1шт.
29
844-6016
BOLT,Hvy Hex, M6 x 16mm, Cl 8.8
DX25, DX29, DX33 Hex Flg, M6 x 16, 8.8
16шт.
30
9841069
CLIP
Side Panel, DX25,DX29,DX33
2шт.
31
86400901
BRACKET
R.H., DX25,DX29,DX33
1шт.
32
86524747
BRACKET
Assy., W/Metal Stud DX25,DX29,DX33, Years: -28-FEB-01
4шт.
32
86400611
BRACKET
Assy., W/Hole DX25,DX29,DX33, Start Year: 01-MAR-01
4шт.
Used On & ASN HBA0001046
1шт.
33
322357
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
WASHER, BELLEVILLE, , DX25, DX29, DX33 M6
16шт.
34
86400125
BRACKET
LH, DX25,DX29,DX33
1шт.
35
86522919
PIN
DX25,DX29,DX33
2шт.
36
86549801
BRACKET
R.H., DX25,DX29,DX33
1шт.
37
86519865
BRACKET
L.H., DX25,DX29,DX33
1шт.
38
86511841
BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8
Hex Flg Hd, CL 8.8, M8 x 1.25 x 16, DX25, DX29, DX33
4шт.
39
86401690
PANEL
R.H., Hood Side, DX25,DX29,DX33
1шт.
40
86401689
PANEL
L.H., Hood Side, DX25,DX29,DX33
1шт.
41
844-8020
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
2шт.
42
86530912
GUARD
Fan, R.H., D25,D29,D33
1шт.
43
86530913
GUARD
Fan, L.H., D25,D29,D33
1шт.
44
86535714
PLATE
Decal, Plate, R.H., D25,D29,D33
1шт.
45
86540954
PLATE
Decal, Plate, L.H., D25,D29,D33
1шт.
46
86543778
ISOLATOR
4шт.
47
825-2408
FLANGE NUT,M8 x 1.25, Flg, Cl 8
M8 x 1.25", Flg, Cl 8
4шт.
48
86549853
WASHER,8.4mm ID x 28mm OD x 3mm Thk
4шт.
49
86512444
CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8
BOLT, CARRIAGE, Short Neck, CL 8.8, M8 x 1.25 x 40
4шт.
50
86540905
BRACKET
1шт.
51
86530783
SEAL
Seal, Hood, LH
1шт.
Not Illustrated
1шт.
52
86524701
SEAL
Seal, Hood, RH
1шт.
Not Illustrated
1шт.
Выбрано товаров: 74
