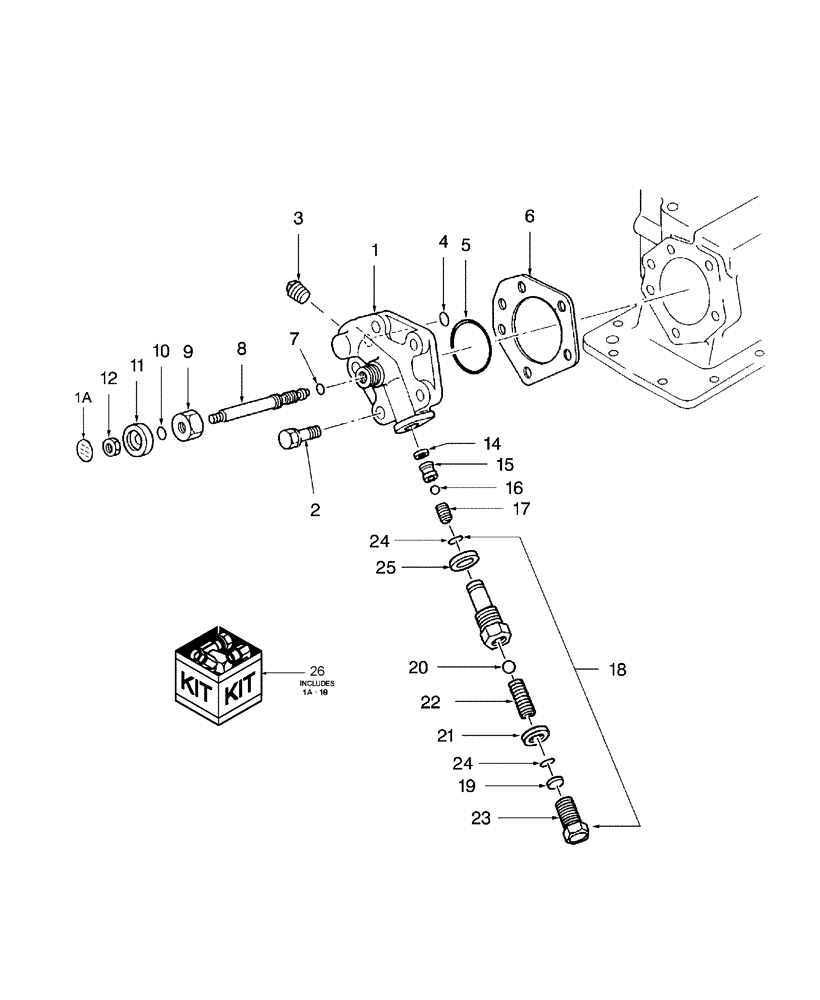

Запчасти Case IH DX25 (05B01) - LIFT COVER HEAD (07) - HYDRAULIC SYSTEMS

1

SBA344711260

CYLINDER HEAD

Head, Cylinder, D25,D29,D33

1шт.

1

SBA344711250

CYLINDER HEAD

Cylinder, Head, DX25,DX29,DX33, D29 W/Live Rear PTO

1шт.

Included in 718819016 from Wholegoods for D25, D29, D33

1шт.

1a

SBA390370290

DECAL

Flow Control

1шт.

2

SBA011511240

BOLT,M12 x 40

5шт.

3

SBA064500030

PLUG,3/8"

PT 3/8"

1шт.

4

SBA052110120

O-RING

1шт.

5

SBA052310650

O-RING

1шт.

6

SBA344990230

GASKET

1шт.

7

SBA052110070

O-RING

1шт.

8

SBA340170800

HYDRAULIC VALVE

Valve

1шт.

9

SBA340190340

GUIDE

1шт.

10

SBA052100120

O-RING

P12

1шт.

11

SBA398180332

HANDLE GRIP

Grip

1шт.

12

825-1410

NUT,M10, Cl 8

1шт.

14

SBA340990150

GASKET

1шт.

15

SBA340190360

GUIDE

1шт.

16

SBA048100008

BALL

Steel, M8 - 11/32"

1шт.

17

SBA398214400

SPRING

1шт.

18

SBA340015700

HYDRAULIC VALVE

Control Valve Assy. Includes: Ref. 19 thru 25

1шт.

No Longer Serviced Components Still Available

1шт.

Replaced By SBA340016560

1шт.

18

SBA340016560

HYDRAULIC VALVE

Valve Assy., Includes: Ref. 24 & 25

1шт.

19

SBA399280810

SHIM,1.0mm Thk

1шт.

Used With Ref. 18 SBA340015700

1шт.

20

SBA048100008

BALL

Steel

1шт.

Used With Ref. 18 SBA340015700

1шт.

21

SBA025100012

WASHER,12.4mm ID x 19mm OD x 2mm Thk

Seal M12

1шт.

Used With Ref. 18 SBA340015700

1шт.

22

SBA398210980

SPRING

1шт.

Used With Ref. 18 SBA340015700

1шт.

23

SBA399431040

BOLT

M10 x 40

1шт.

Used With Ref. 18 SBA340015700

1шт.

24

SBA052109076

O-RING,2.4mm Thk x 10.8mm ID

P11

1/2шт.

(1) Used W/SBA340015700 & (2) Used W/SBA340016560

1шт.

25

SBA398112140

SEAL

Rubber

1шт.

24

718819016

FIELD ATTACHMENT

Kit, 3-Point Hitch Drop Control Kit, Includes: Ref. 1A thru 18

1шт.

OW - Order Thru Wholegoods

1шт.
