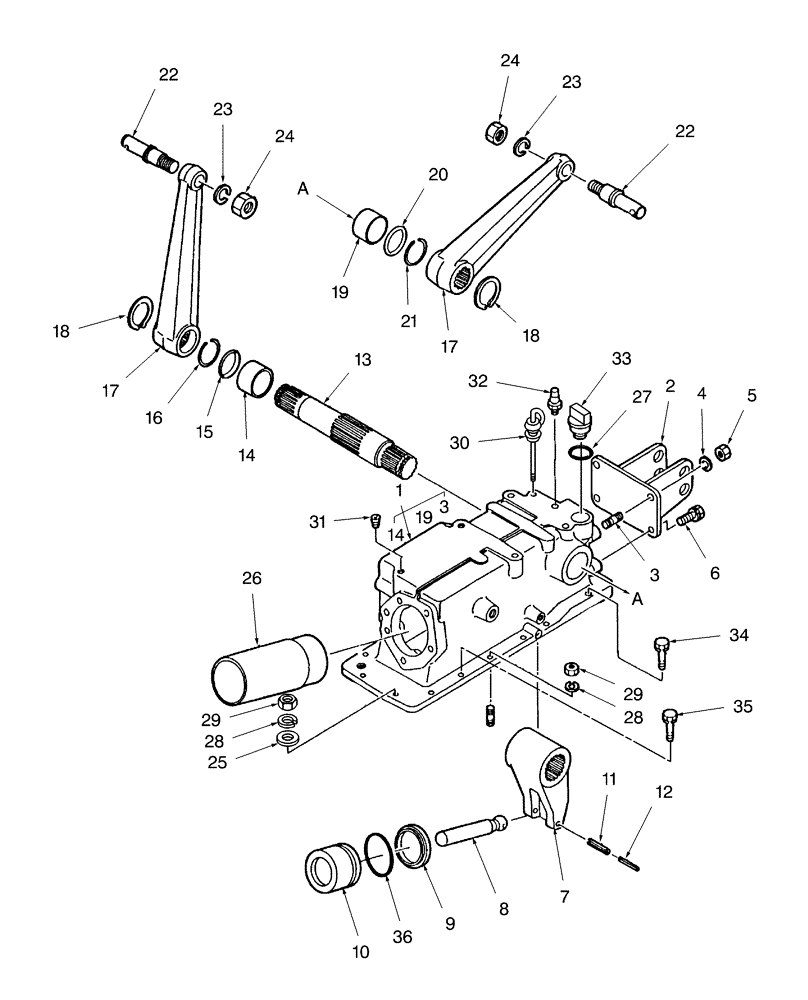

Запчасти Case IH DX25 (05A01) - LIFT COVER & ARMS (07) - HYDRAULIC SYSTEMS

1

SBA344081370

HOUSING

Assy, Cylinder, Includes: Ref. 3, 14 & 19

1шт.

2

SBA370301120

BRACKET

1шт.

3

SBA012111230

STUD

Bolt

1шт.

4

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

WASHER, LOCK, M12 x 21 x 2.6 Thk

1шт.

5

330327

NUT,M12 x 1.5, Cl 8

CL 8, M12 x 1.5

1шт.

6

SBA011511230

BOLT,M12 x 30

3шт.

7

SBA344810210

ARM

Hydraulic

1шт.

8

SBA344770053

ROD

Piston

1шт.

9

SBA344940020

BACK-UP RING

1шт.

10

SBA344760280

PISTON

1шт.

11

300873

ROLL PIN

Pin, Spring, 8 x 45

1шт.

12

SBA030300545

COILED PIN

PIN, COILED, Spring

1шт.

13

SBA344830351

SHAFT

Hydraulic Arm

1шт.

14

SBA398510290

BUSHING

45 x 50 x 30

1шт.

15

SBA052109008

O-RING

1шт.

16

SBA398210920

SPRING

1шт.

17

SBA344111140

ARM

Lift

2шт.

18

370006

SNAP RING,M40, Ext

RING, SNAP, , CS040 M40, Ext

2шт.

19

SBA398510090

BUSHING

45 x 30

1шт.

20

SBA052300450

O-RING

1шт.

21

SBA398210670

SPRING

1шт.

22

SBA344140061

PIN

2шт.

23

9847025

LOCK WASHER,21.2mm ID x 33.6mm OD x 6mm Thk

2шт.

24

100085

NUT,M20 x 1.5, Cl 8

M20 x 1.5, Cl8

2шт.

25

SBA026109022

WASHER

2шт.

26

SBA344790350

LINER

Cylinder

1шт.

27

SBA052100280

O-RING

1шт.

28

892-11010

LOCK WASHER,M10

7шт.

29

SBA021000010

NUT

7шт.

30

SBA398400500

DIPSTICK

, Years: -31-MAR-01

1шт.

30

SBA398400501

DIPSTICK

, Start Year: 01-APR-01

1шт.

31

SBA064400020

PLUG

4шт.

32

SBA340710030

BREATHER

1шт.

33

SBA398430560

PLUG

Hydraulic Oil Filler

1шт.

34

SBA011511040

BOLT,M10 x 40

4шт.

35

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

SCREW, CAPTIVE WASHER, Hex, M10 x 1.5 x 30, G5

5шт.

36

SBA052110600

O-RING

1шт.
