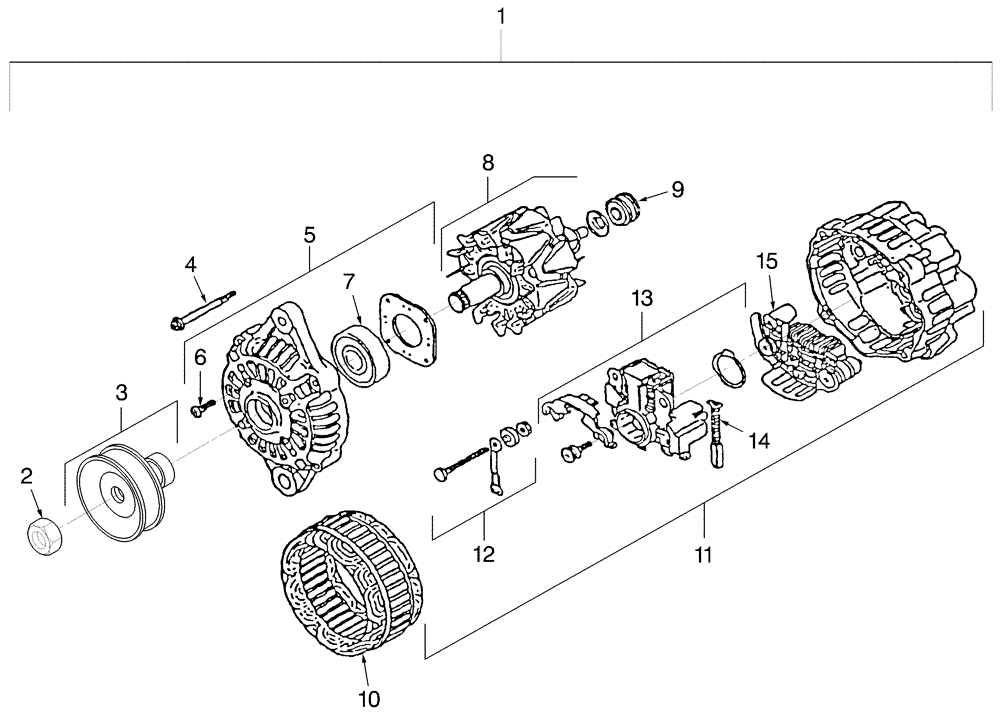

Запчасти Case IH DX25 (11E01) - ALTERNATOR ASSY. (06) - ELECTRICAL SYSTEMS

1

SBA185046320

ALTERNATOR

Alternator Assy. Includes: Ref. 2 thru 15

1шт.

1

SBA185046320R

REMAN-ALTERNATOR

D25, DX25, D29, DX29, D33, DX33

1шт.

1

SBA185046320C

CORE-ALTERNATOR

Return Part Number

1шт.

1

SBA185046320GV

ALTERNATOR

Value

1шт.

2

SBA185446269

NUT

Nut

1шт.

3

SBA185436180

PULLEY

Pulley Assy.

1шт.

4

SBA185446270

SET OF SCREWS

Set, Screw

1шт.

5

SBA185426210

COVER

Cover Assy., Front. Includes: Ref. 6 & 7

1шт.

6

SBA185446271

SET OF SCREWS

Set, Screw

1шт.

7

SBA185446272

BALL BEARING

Bearing, Ball

1шт.

8

SBA185446273

ARMATURE

Rotor Assy.

1шт.

9

SBA185446274

BALL BEARING,8mm ID x 23mm OD x 14mm W

Bearing, Ball

1шт.

10

SBA185446275

ALTERNATOR STATOR

STATOR, ALTERNATOR

1шт.

11

SBA185426220

COVER

Cover Assy., Rear. Includes: Ref. 12 thru 15

1шт.

12

SBA185446278

KIT

Set, Terminal

1шт.

13

SBA185446277

VOLTAGE REGULATOR

Regulator

1шт.

14

SBA185416480

COMMUTATOR BRUSH

Spring, Brush

2шт.

15

SBA185446276

RECTIFIER

Rectifier Assy.

1шт.
