Запчасти Case IH DX25 (08A01) - RADIATOR (04) - COOLING SYSTEM

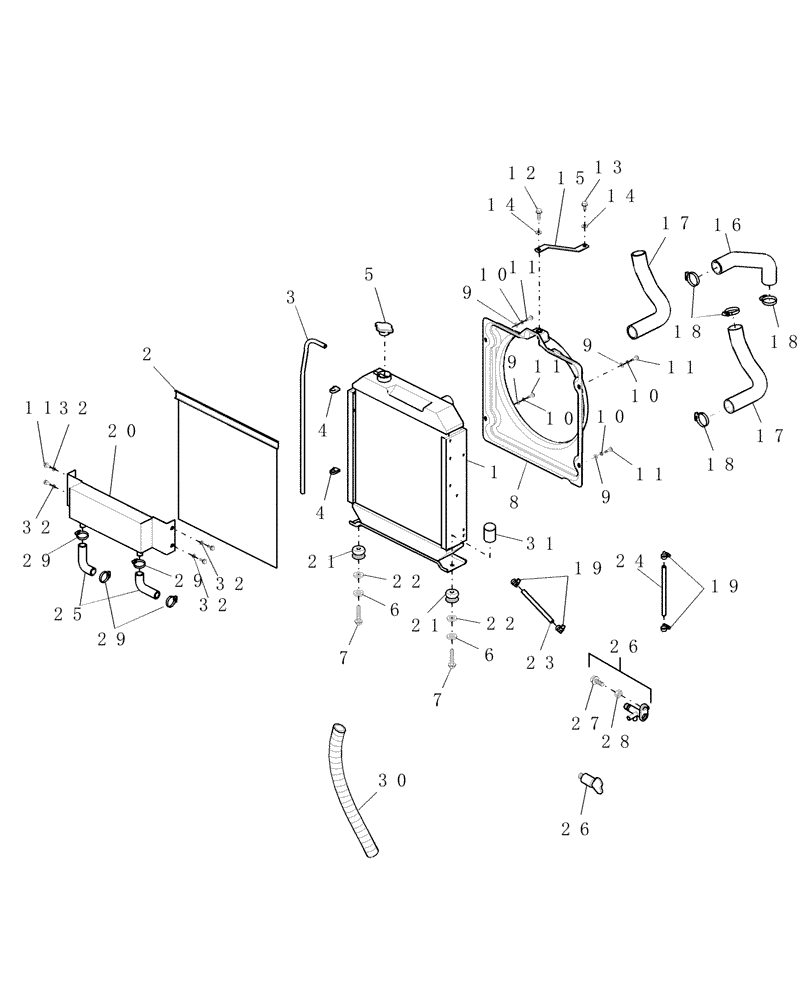

Схема запчастей Case IH DX25 - (08A01) - RADIATOR (04) - COOLING SYSTEM
18
13
11
11
21
4
1
9
11
26
10
11
3
21
10
29
32
28
5
9
29
20
17
2
16
14
22
4
26
27
23
19
18
10
24
18
19
7
17
32
9
8
12
25
7
10
32
14
29
15
6
32
30
9
31
6
11
22

Артикул

Название

Примечание

Количество

1

NLS

NO LONGER SERVICED

Radiator {86519895}

1шт.

No Longer Serviced

1шт.

Used BSN HBA0001575, DX25, DX29, DX33

1шт.

Used BSN HBA0001534, D25, D29, D33

1шт.

1

86402723

RADIATOR

1шт.

2

86522915

SCREEN

1шт.

Used with Radiator 86519895

1шт.

Used BSN HBA0001575, DX25, DX29, DX33

1шт.

Used BSN HBA0001534, D25, D29, D33

1шт.

3

86530797

HOSE,7.50 mm ID x 600.00 mm

Overflow 7.50 mm ID x 600.00 mm

1шт.

4

86530798

CLAMP

2шт.

5

86530802

RADIATOR CAP

Cap

1шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

WASHER, BELLEVILLE, M10

2шт.

7

844-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 8.8

HH, CL 8.8, M10 x 1.5 x 50

2шт.

8

86519893

FAN

Shroud

1шт.

9

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

M6 x 12 x 1.6

4шт.

Used with Radiator 86519895

1шт.

Used BSN HBA0001575, DX25, DX29, DX33

1шт.

Used BSN HBA0001534, D25, D29, D33

1шт.

11

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

4шт.

Used with Radiator 86519895

1шт.

Used BSN HBA0001575, DX25, DX29, DX33

1шт.

Used BSN HBA0001534, D25, D29, D33

1шт.

11

86401632

BOLT

M6 x 1

4шт.

Used with Radiator 86402723

1шт.

12

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

13

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

Hex Flg Hd, CL 8.8, M8 x 1.25 x 16

1шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

WASHER, BELLEVILLE, M8

2шт.

15

86522924

BRACKET

Radiator, D25,DX25,D29,DX29

1шт.

15

86532748

BRACKET

Radiator, D33,DX33

1шт.

16

86519847

RADIATOR HOSE,33.00 mm ID x 222.00 mm, SAE 20R4 CLASS D1 or D2

33.00 mm ID x 222.00 mm, SAE 20R4 CLASS D1 or D2

1шт.

17

86519855

RADIATOR HOSE,33.00 mm ID x 182.00 mm, SAE 20R4 CLASS D1 or D2

D25,DX25,D29,DX29 33.00 mm ID x 182.00 mm, SAE 20R4 CLASS D1 or D2

1шт.

17

86526943

FLEXIBLE HOSE

Hose, Radiator, D33,DX33

1шт.

18

82012725

HOSE CLAMP,#44, M32-44

CLAMP, HOSE, #44, M32-44

4шт.

19

82012717

HOSE CLAMP,11 x 17mm

CLAMP, HOSE, 11 x 17mm

4шт.

Used with Radiator 86519895

1шт.

Used BSN HBA0001575, DX25, DX29, DX33

1шт.

Used BSN HBA0001534, D25, D29, D33

1шт.

20

86522859

OIL COOLER

Cooler, HST

1шт.

21

86524811

INSULATOR

Isolator

2шт.

22

86524667

WASHER,M10.3 x 38.1 x .15 Thk

2шт.

23

86532995

RADIATOR HOSE,7.94 mm ID x 180.00 mm, SAE J30R7

Drain 7.94 mm ID x 180.00 mm, SAE J30R7

1шт.

Used with Radiator 86519895

1шт.

Used BSN HBA0001575, DX25, DX29, DX33

1шт.

Used BSN HBA0001534, D25, D29, D33

1шт.

24

86532996

HOSE,7.94 mm ID x 290.00 mm, SAE J30R7

Drain, Block 7.94 mm ID x 290.00 mm, SAE J30R7

1шт.

Used with Radiator 86519895

1шт.

Used BSN HBA0001575, DX25, DX29, DX33

1шт.

Used BSN HBA0001534, D25, D29, D33

1шт.

25

86540861

HOSE

HST Elbow

2шт.

26

SBA310130190

DRAINCOCK/TAP SUPPLY

Drain Cock Includes: Ref. 27 & 28

1шт.

Used with Radiator 86519895

1шт.

Used BSN HBA0001575, DX25, DX29, DX33

1шт.

Used BSN HBA0001534, D25, D29, D33

1шт.

26

86404010

DRAIN PLUG

PLUG, DRAIN, Includes: 86512844 O-Ring

1шт.

Used with Radiator 86402723

1шт.

27

SBA340170680

HYDRAULIC VALVE

Valve

1шт.

Used with Radiator 86519895

1шт.

Used BSN HBA0001575, DX25, DX29, DX33

1шт.

Used BSN HBA0001534, D25, D29, D33

1шт.

28

SBA020109113

NUT

1шт.

Used with Radiator 86519895

1шт.

Used BSN HBA0001575, DX25, DX29, DX33

1шт.

Used BSN HBA0001534, D25, D29, D33

1шт.

29

82012717

HOSE CLAMP,11 x 17mm

CLAMP, HOSE, 11 x 17mm

4шт.

30

86549871

PLASTIC-RUBBER TUBE,15.875 mm ID x 15.88 mm OD x 121.9 mm L

Tube, Split, I.D. 15.875, Fits Over Ref. 23, 86532995

1шт.

Used with Radiator 86519895

1шт.

Used BSN HBA0001575, DX25, DX29, DX33

1шт.

Used BSN HBA0001534, D25, D29, D33

1шт.

31

86549908

CAP COVER

Cap

2шт.

32

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

WASHER, BELLEVILLE, M6

4шт.

10

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

Washer, Lock, M6

4шт.

Used with Radiator 86519895

1шт.

Used BSN HBA0001575, DX25, DX29, DX33

1шт.

Used BSN HBA0001534, D25, D29, D33

1шт.

Выбрано товаров: 75
